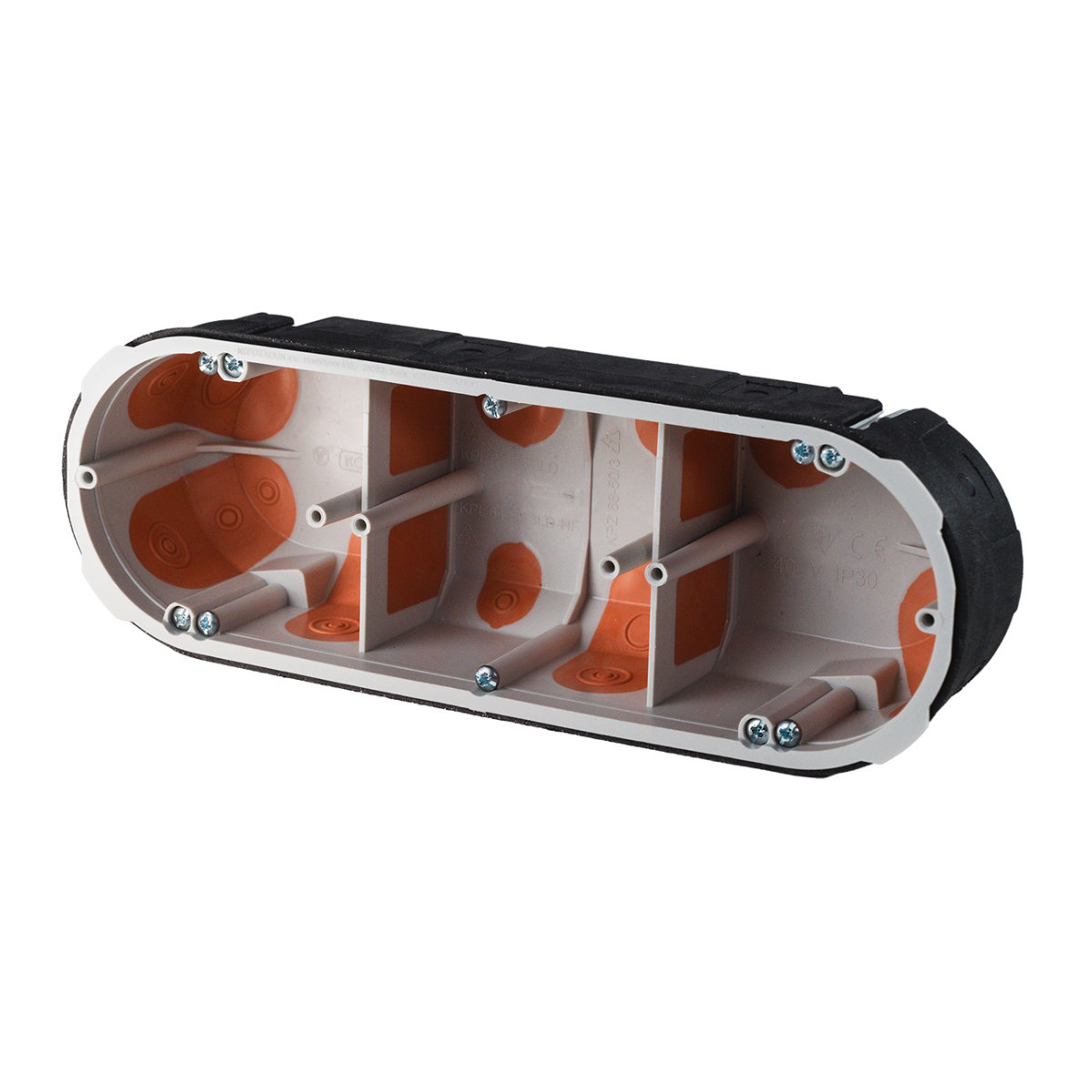

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
KPZ68-503_PO_EN
| Cod Ean | 8595568937636 |
| Cod vamal | 39259080 |
| Greutate | 0,1588 kg/pcs |
| Culoare | black + gray + orange |
| Material | PP |
| Material fără halogeni | yes |
| Material fără plumb | yes |
| Izolare fonică | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |
| Ansamblu | horizontal and vertical mounting |

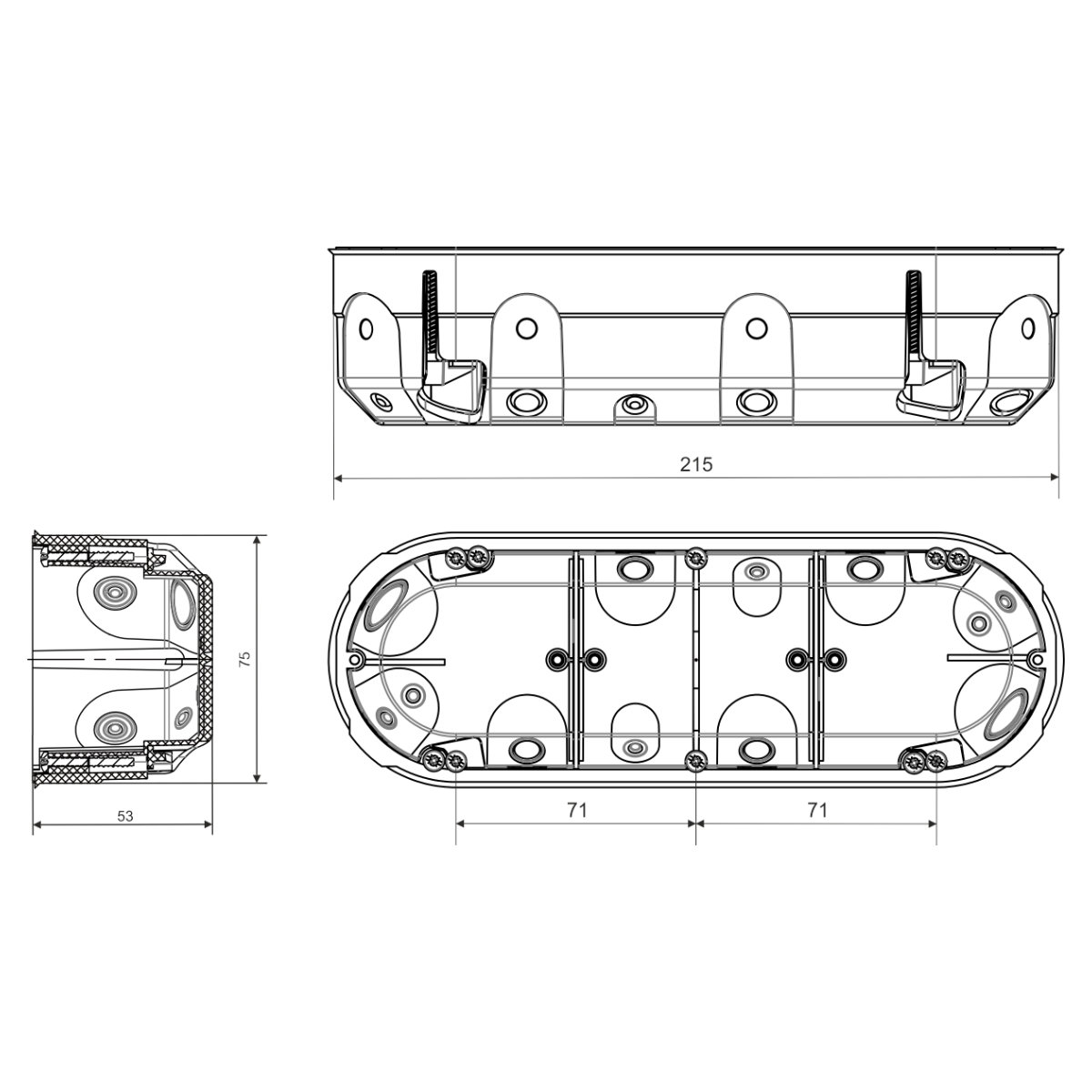

| Lătime | 215 mm |
| Înăltime | 75 mm |
| Adâncime | 53 mm |
| Diametrul orificiului găurit (forat) | 73 mm |
| Recomandările producătorului For all range of products in hollow walls, we recommend using the milling sets supplied by us. | |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Tipuri de protecție | IP 30 |
| Standarde ČSN EN 60 670-1, ČSN EN 1363-1:2013, ČSN 73 08 10 | |
| Standardele cu privire lade rezistența la foc | EI 15 - EI 90 |
| Descriere impachetare the box is fitted with screws for fixing onto plasterboard and with instrument screws, pack loosely in a box | |
In case of fire, it provides integrity and insulation for up to 90 minutes (EI 15 - EI 90). The entry openings are made of flexible material. The fire-resistant material is located outside the box. The drill bit diameter for installation is 73 mm. The box is soundproof (soundproofing up to 69 dB). Mounting screws are equipped with a double-threaded design with plastic pads for quick installation. The box is designed for facilities with increased need for personal and property protection.
