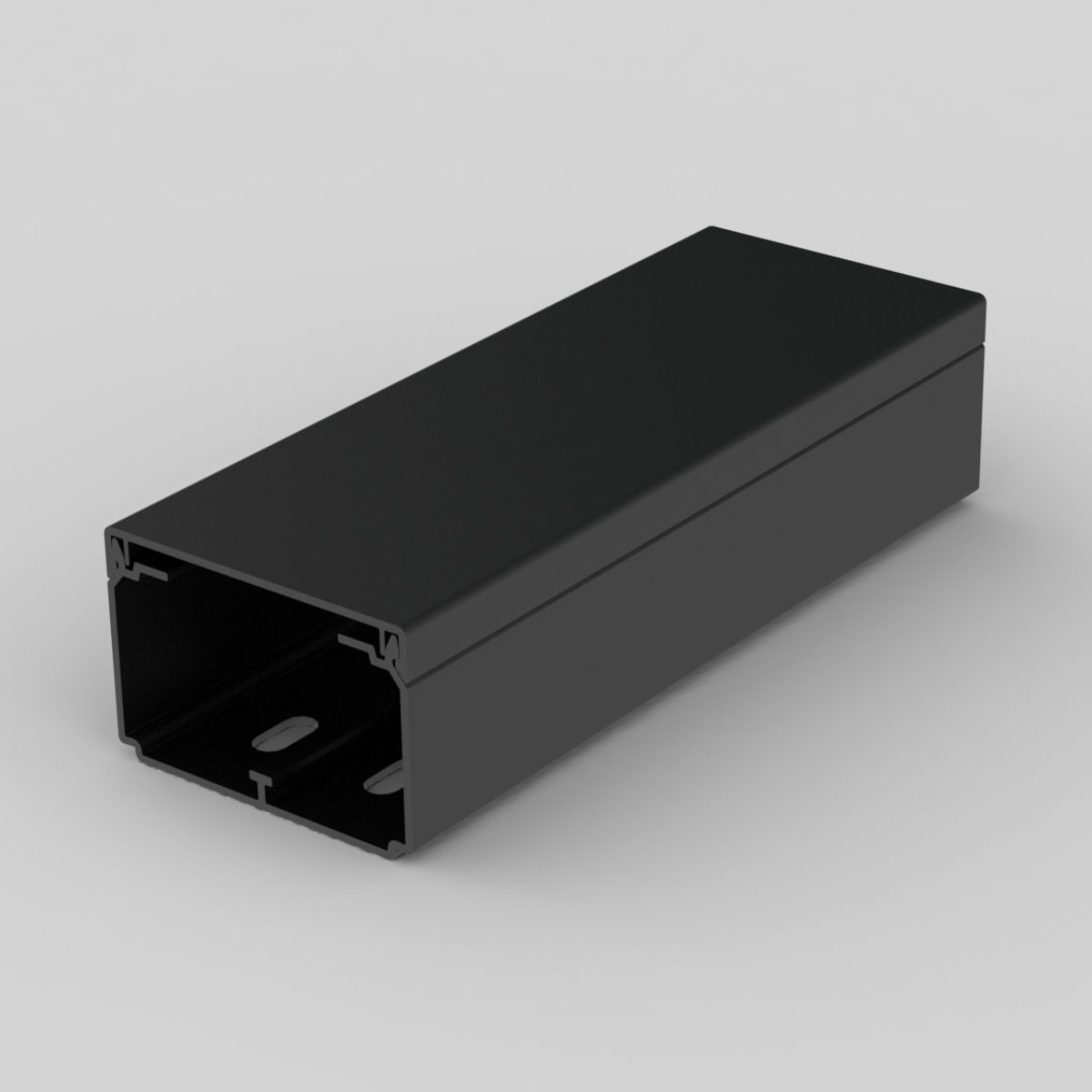

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
LH60X40HF_EN
| Cod Ean | 8595568938558 |
| Cod vamal | 39259020 |
| Greutate | 0,3796 kg/m |
| Culoare | black |
| Material | HF |
| Material fără halogeni | yes |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Rezistența la temperatură | -25 - 90 °C |
| Testat cu buclă incinsă | 850 °C |
| Protectie mecanică | IK06 |
| Rezistență la impact | 1 J |
| Antibacterial | yes |

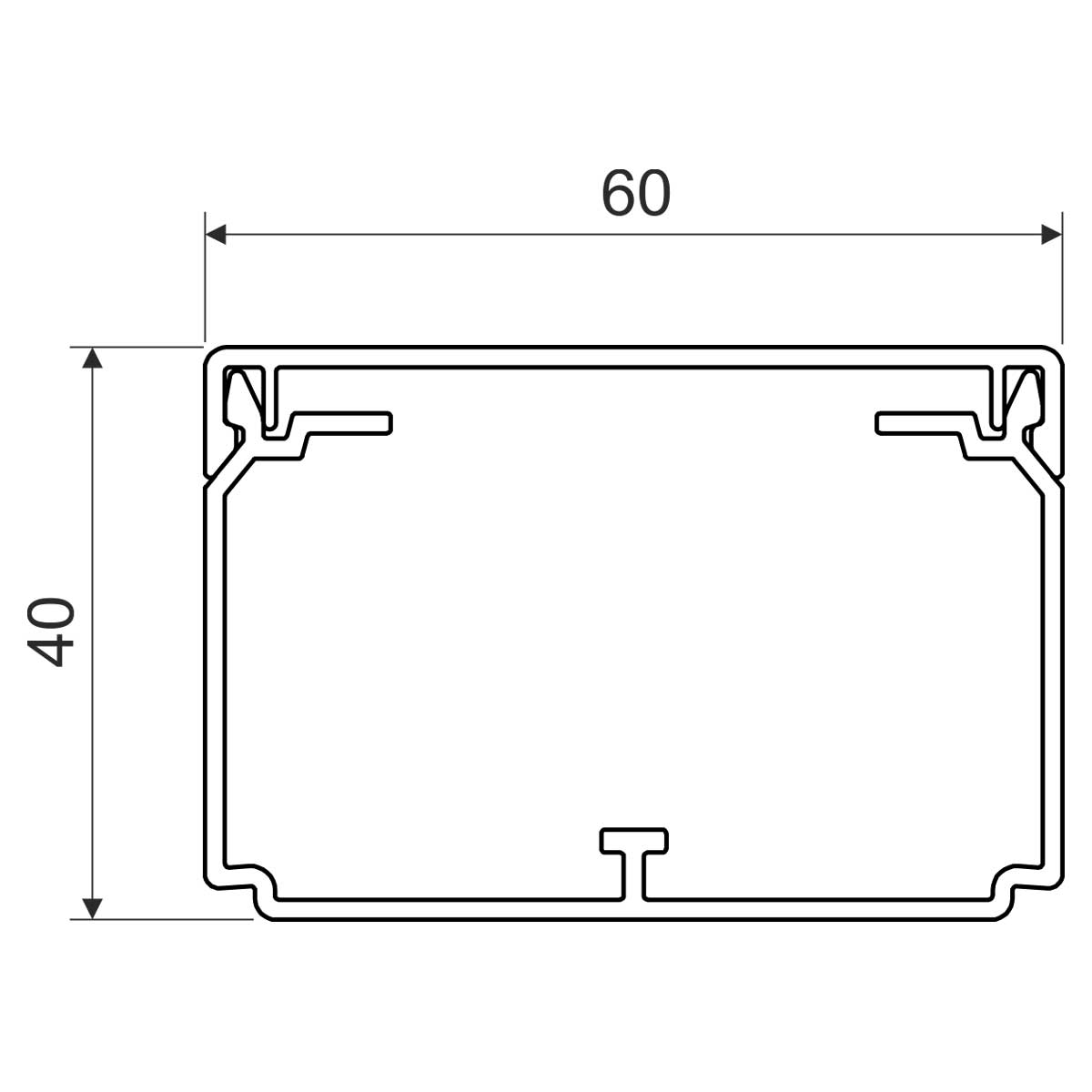

| Lătime | 60 mm |
| Înăltime | 40 mm |
| Lungime | 2 m |
| Zona interioară | 1870 mm2 |
| Toleranță The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Utilizare they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use. | |
| Notă | package in cardboard |
| Zonă cu pericol de explozie Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Tipuri de protecție | IP 40 |
| Standarde | ČSN EN 50 085-1 |
| Descriere impachetare | package - cardboard |
| Cu folie de protecţie | yes |
It does not contain halogen elements, suitable for environments with high concentrations of people. Standard shape. Designed for wall or ceiling mounting. Double lock on lid increasing the trunking’s rigidity and ensuring stronger cover fixation. The possibility of inserting partition wall PEKD 40HF. Spacers are included in the package – always 1 pc per 1 m.
