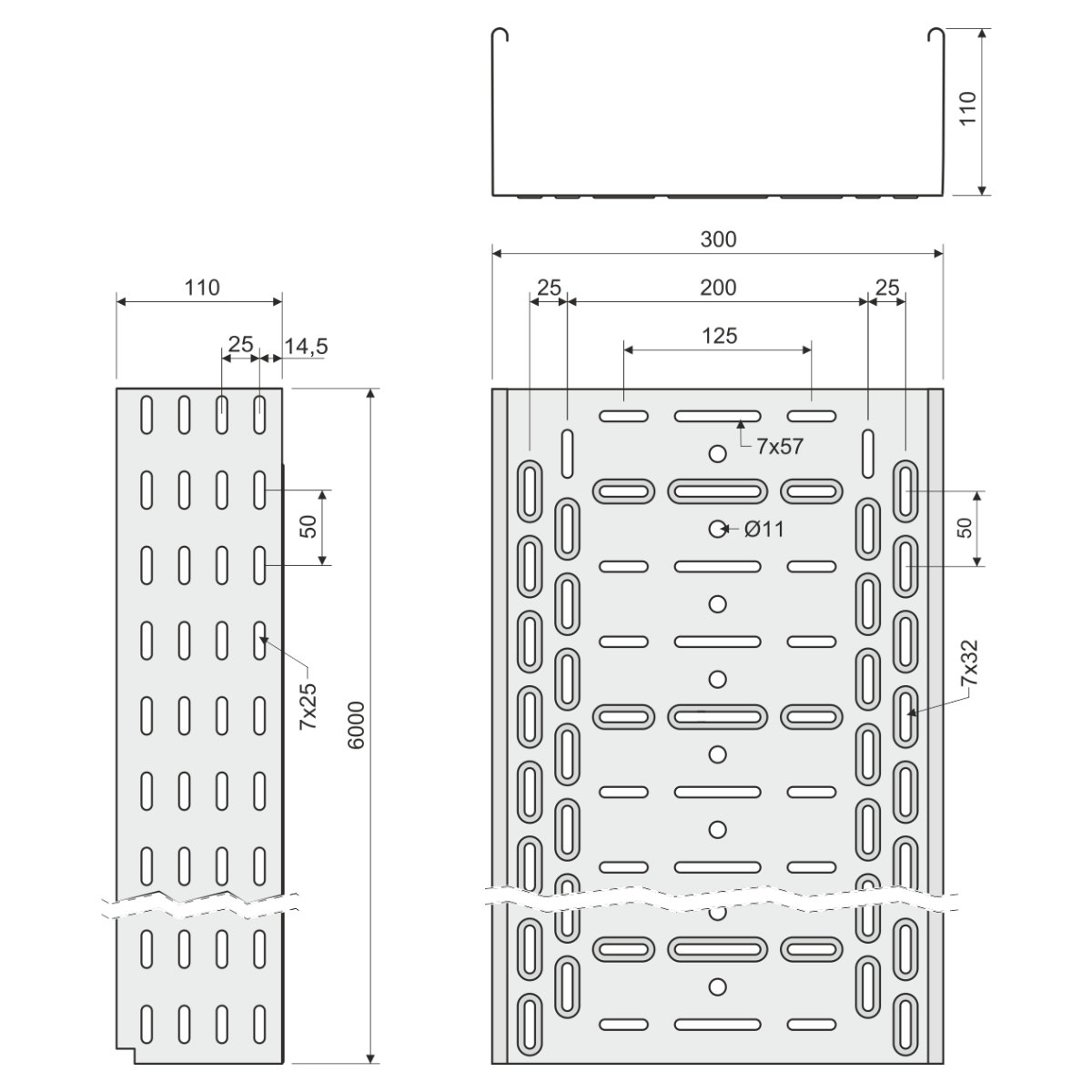

Imagine ilustrativă
KZ110_S6_EN
| Cod Ean | 8595568932143 |
| Cod vamal | 72169180 |
| Greutate | 5,9290 kg/m |
| Acoperire de suprafată | Pre-Galvanized |
| Rezistența la temperatură | -50 - 150 °C |
| Lătime | 300 mm |
| Înăltime | 110 mm |
| Lungime | 6000 mm |
| Standarde | ČSN EN 61537 |
| Grosimea foii de tablă | 1,5 mm |
| Cantitatea de şuruburi pentru instalare | 34 |
The standard length of the cable tray is 6 m. The trays are connected by 2 pcs of KDS jointing plate and 17 pcs of NSM 6X10 bolts. Jointing points can not be placed over the support. The cable tray is suitable for creating a cable route with a support spacing of up to 6 meters.
