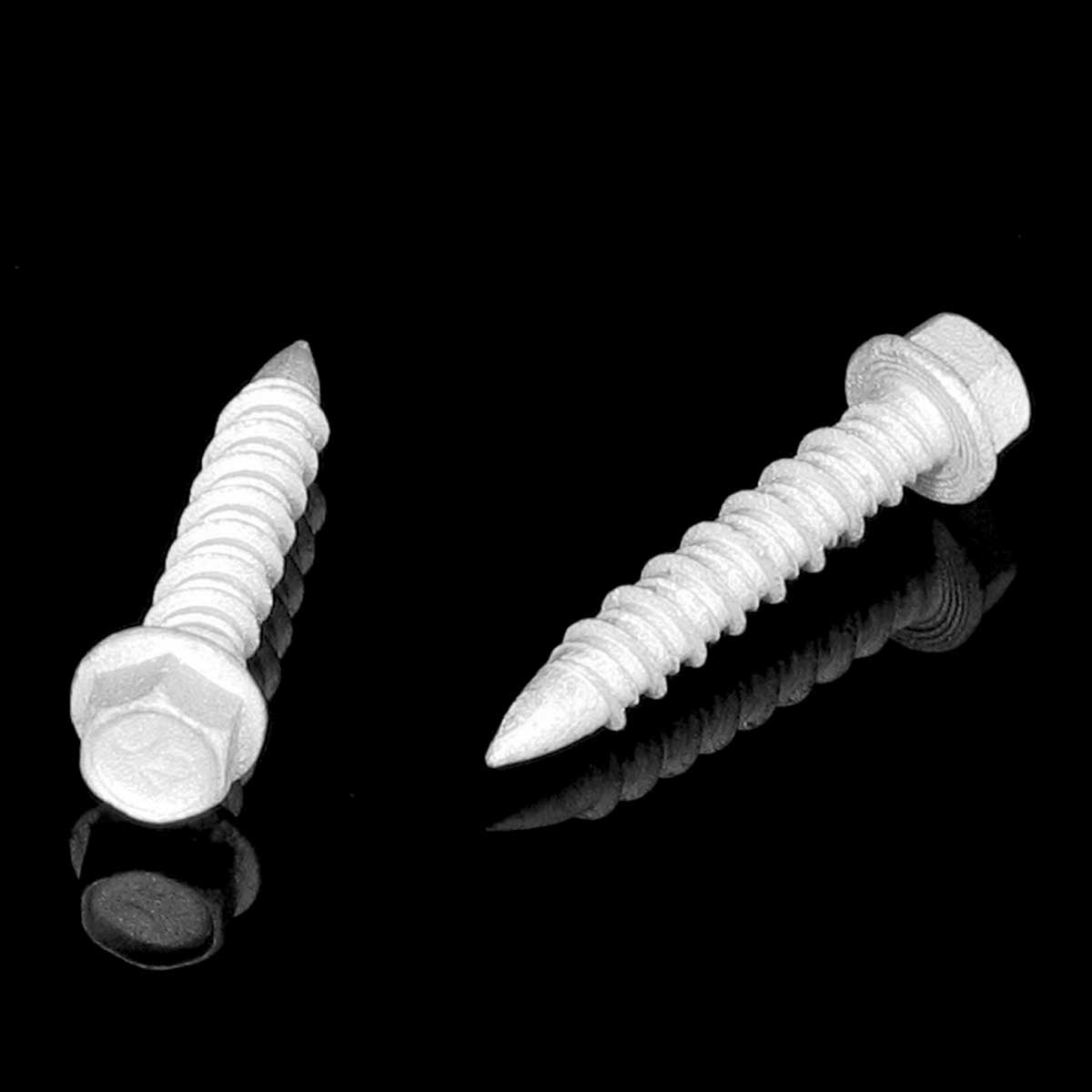

Imagine ilustrativă
SB_EN
| Cod Ean | 8595568932402 |
| Cod vamal | 73181491 |
| Greutate | 0,0082 kg/pcs |
| Acoperire de suprafată | Non electrolytic plating Geomet |
| În medie | 6,3 mm |
| Lungime | 45 mm |
| Funcționalitate în foc | P90-R, E90, PS90 |
| Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Diametrul burghiului | 5 mm |
Note for system with maintained functionality in fire:
Used to attach independent cable clamps, OMEGA clamps and the SD 2 grouped cable holder to the base material. The bolt may be mounted in concrete, natural stone, or solid brickwork. A Ø 5 mm hole needs to be pre-drilled for mounting of the bolt. The supplied surface finish may be used for installation of clamps with PO and POGMT surface finish (type 6706-6716E) and both types of surface finish of OMEGA clamps.
You find more information in the catalogue Systems with maintained functionality in fire.
