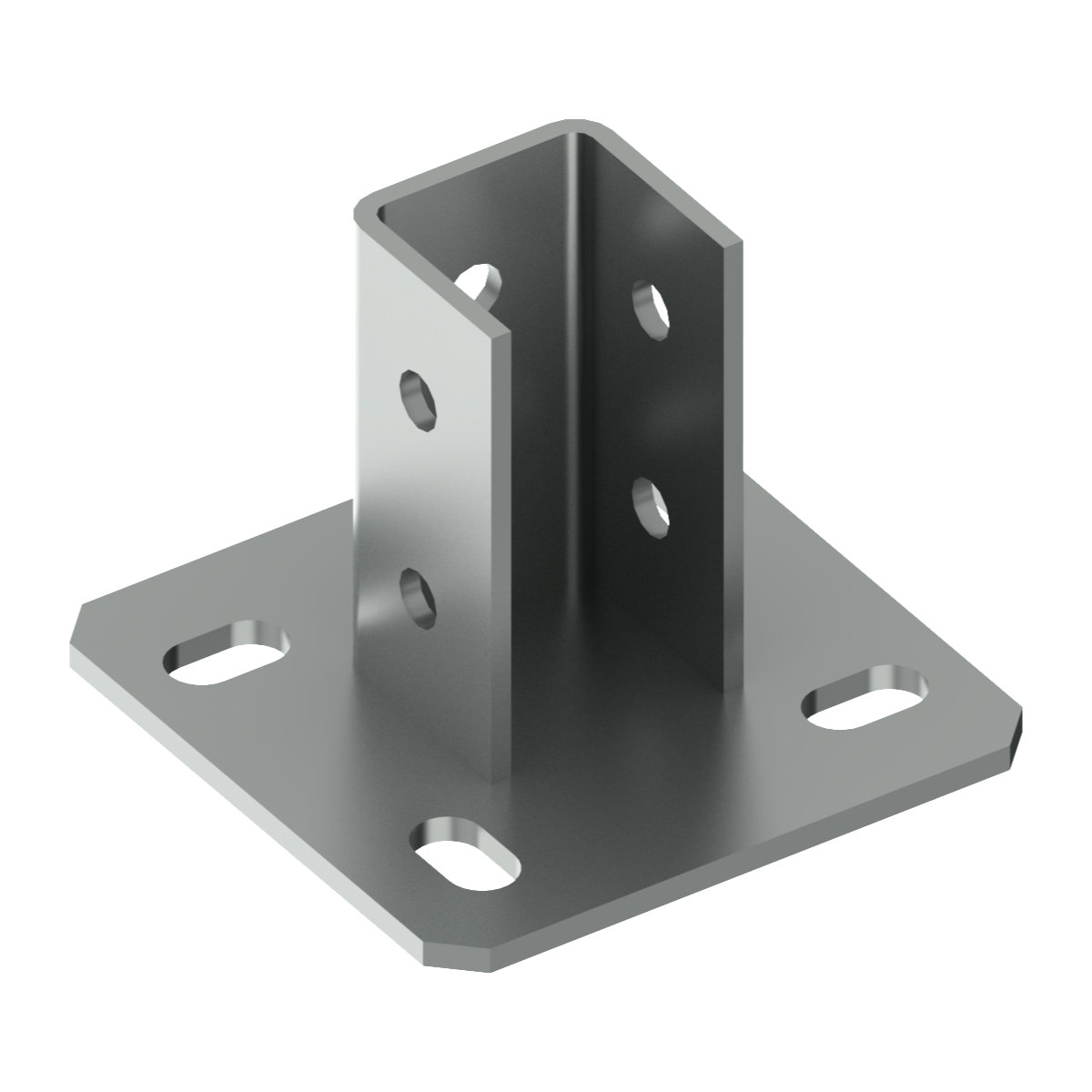

Mounting profile head

Atasamente si certificari

Imagine ilustrativă

Datový list
HMP41_EN

Certifikace
Declaration REACH
Certificate ESČ
Conformity declaration
Declaration RoHS

Cod Ean	8595568932549
Cod vamal	73269098
Greutate	1,0000 kg/pcs
Acoperire de suprafată	Hot Dip Galvanized
Grosimea foii de tablă	5 mm

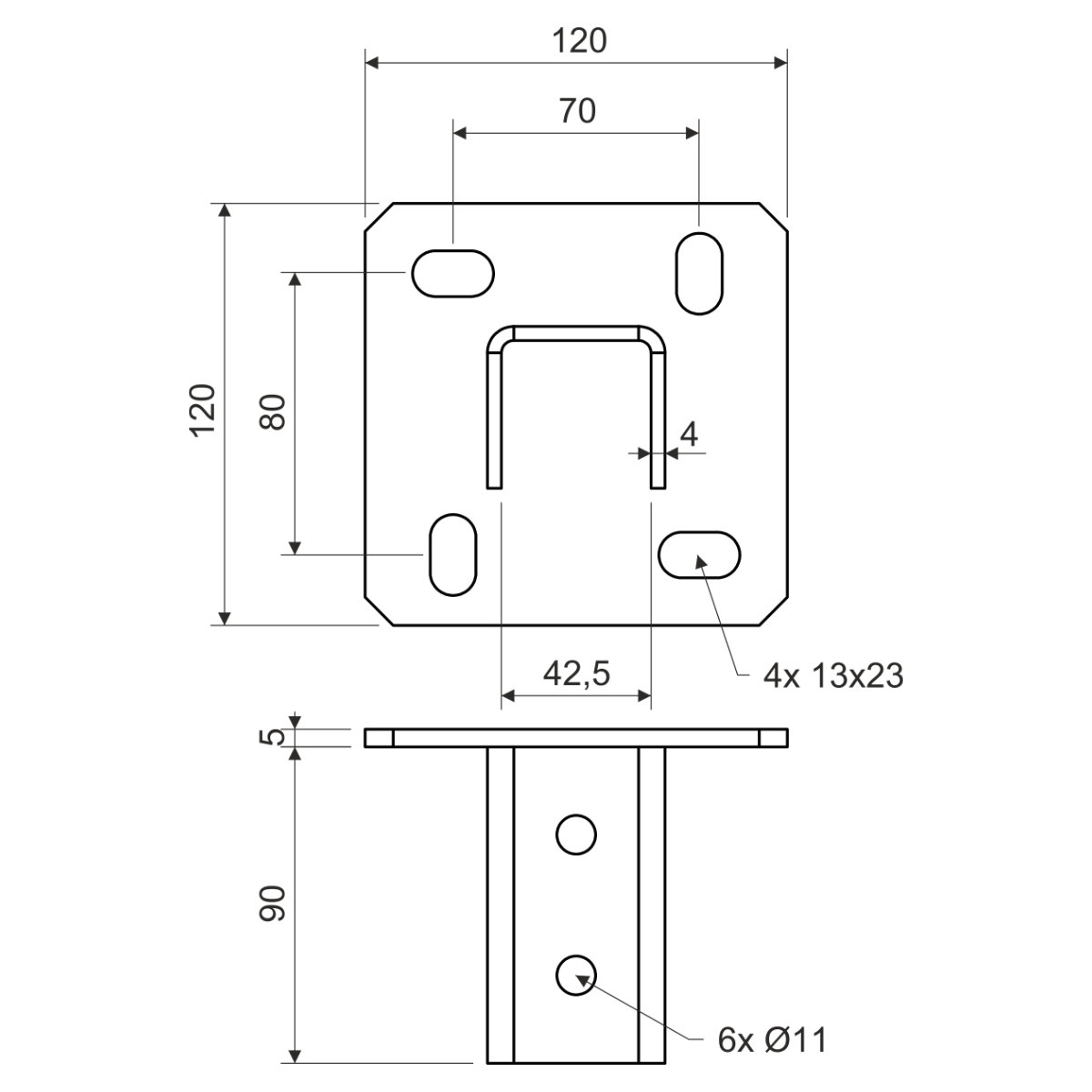

Dimensiunea A	120 mm

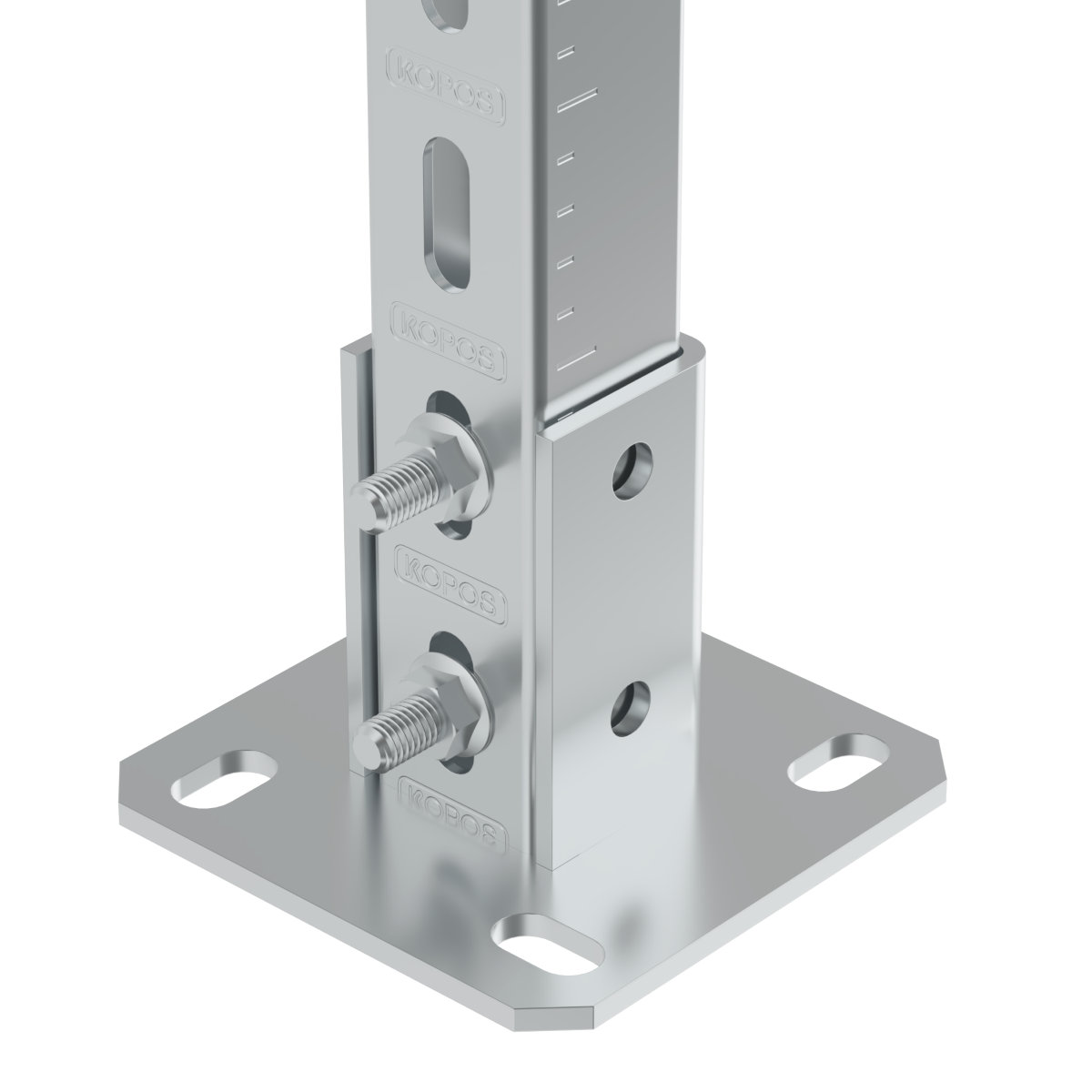

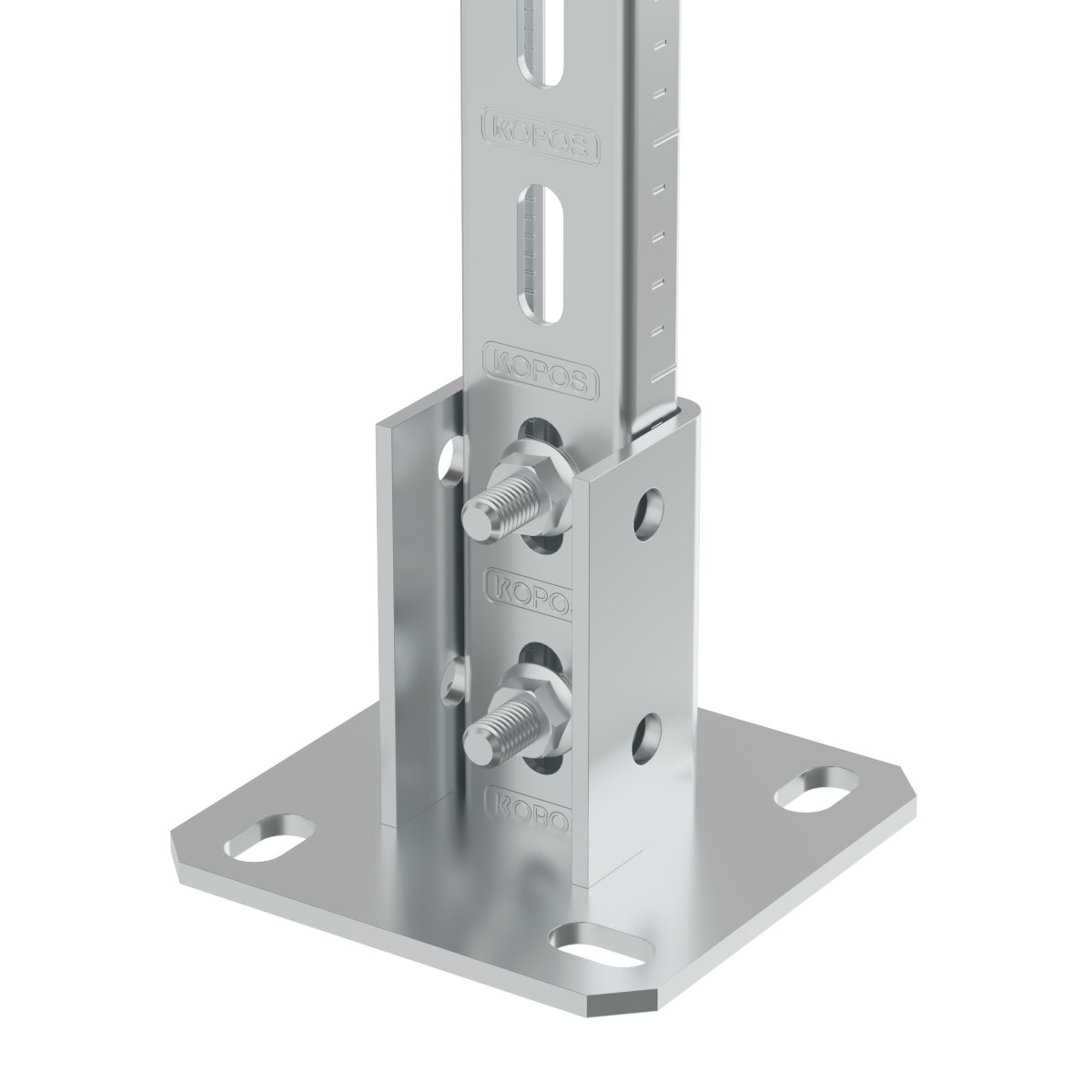

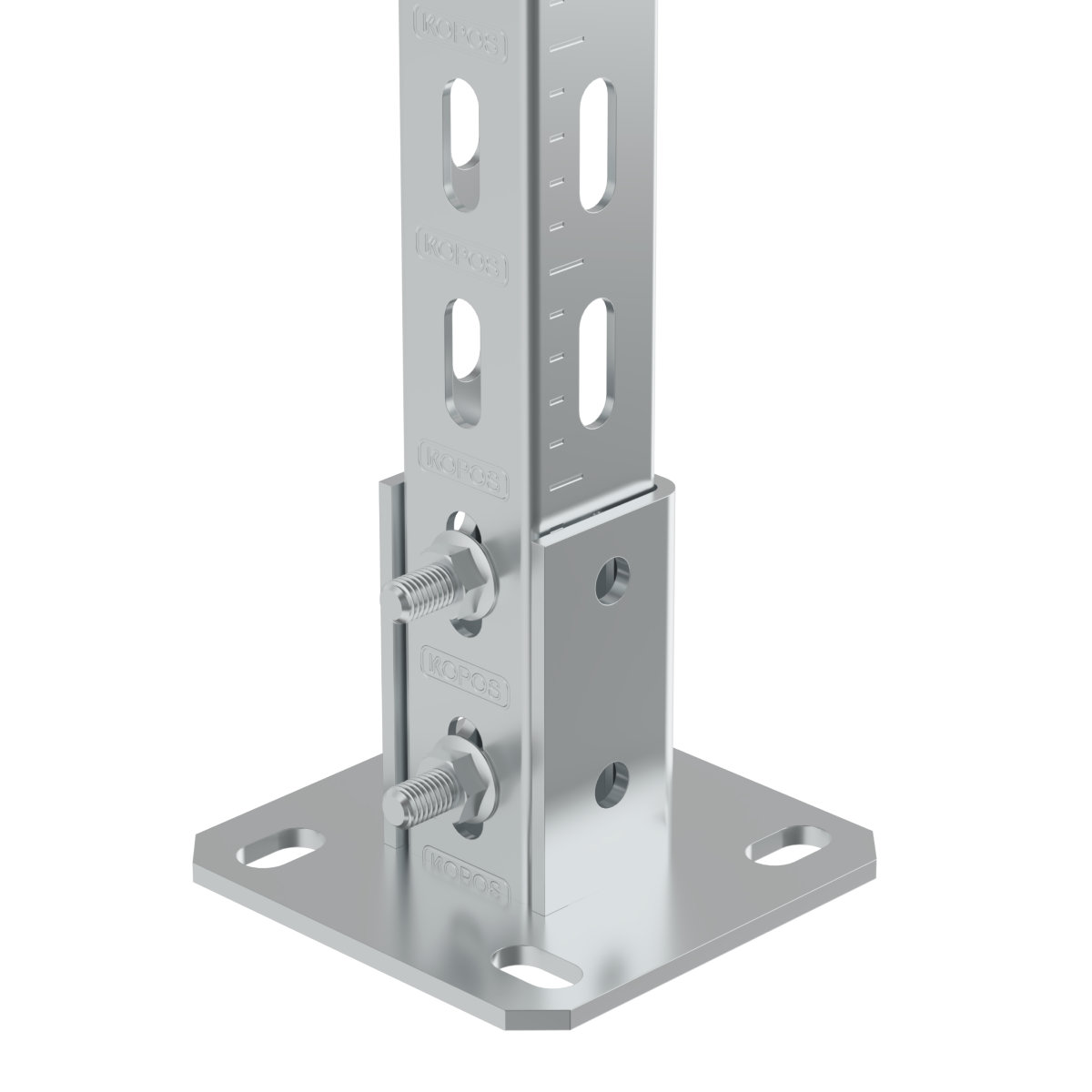

HMP 41_F head is designed for fixing of MP 41X41 or MP 41X21 mounting profiles to the ﬂoor or ceiling. The mounting profile MP 41X41 is fixed to the head with two S 10X70 screws, M 10 nuts and PD 10 washers. The mounting profile MP 41X21 is fixed to the head with two S 10X50 screws, M 10 nuts and PD 10 washers. By combining the head and the mounting profile, it is possible to create the ceiling profile (holder) of any length.
