Cod Ean | 8595057641921 |
Cod vamal | 73089059 |
Greutate | 2,5000 kg/m |
Acoperire de suprafată | Stainless steel AISI 304 |
Rezistența la temperatură | -50 - 150 °C |
Lătime | 400 mm |
Înăltime | 60 mm |
Lungime | 2100 mm |
Standarde | ČSN EN 61537 |
Grosimea foii de tablă | 1,2 mm |
Distanta partiției | 300 mm |

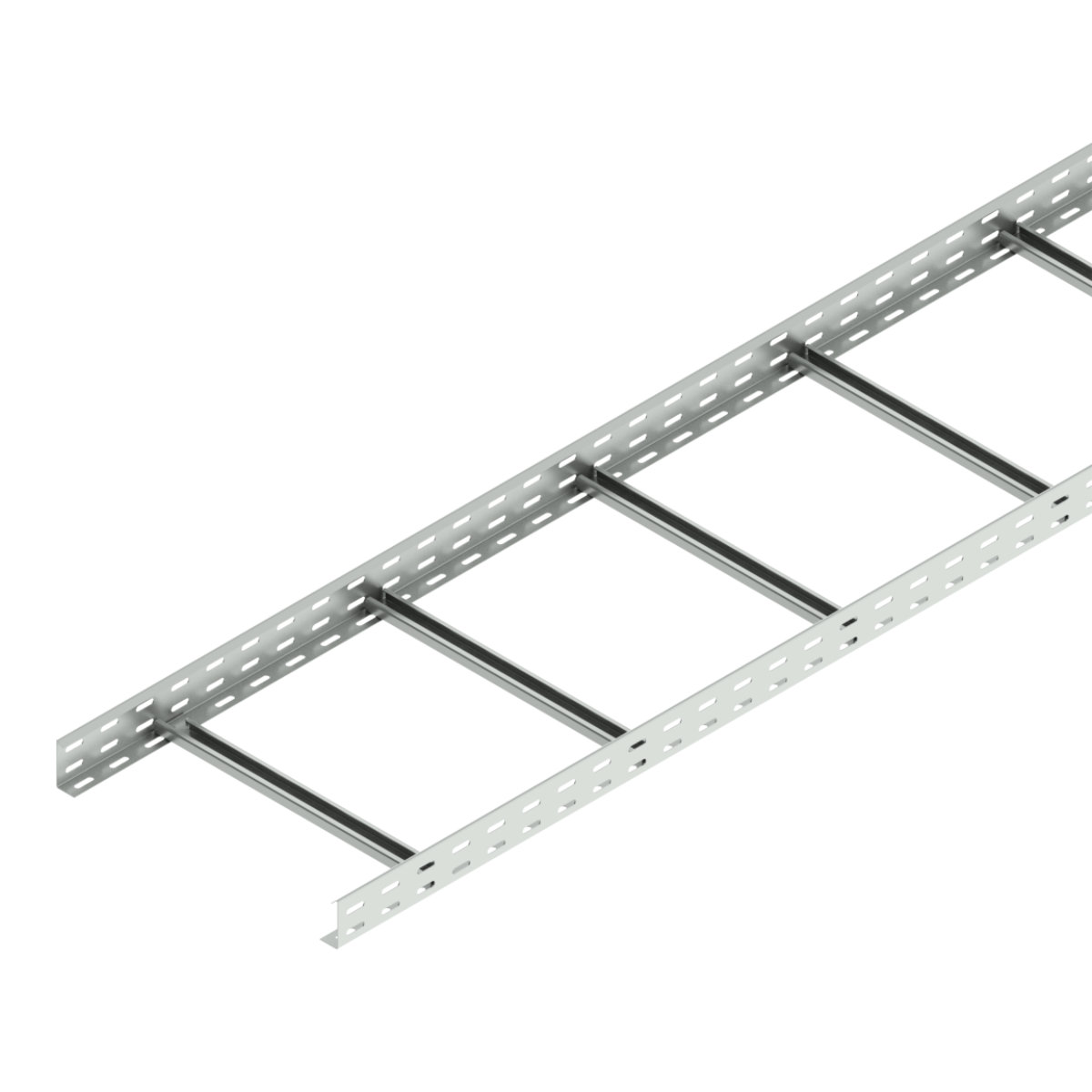

The joining of the ladders is performed by using the couplings INOXS 60 and min. 4 pcs of bolts NIXSM 6X10. The side walls are L-profiles with return flange. The perforated C-profile rungs are placed in the side walls by extrusion with a spacing of 300 mm, with open side of the profile facing up.
