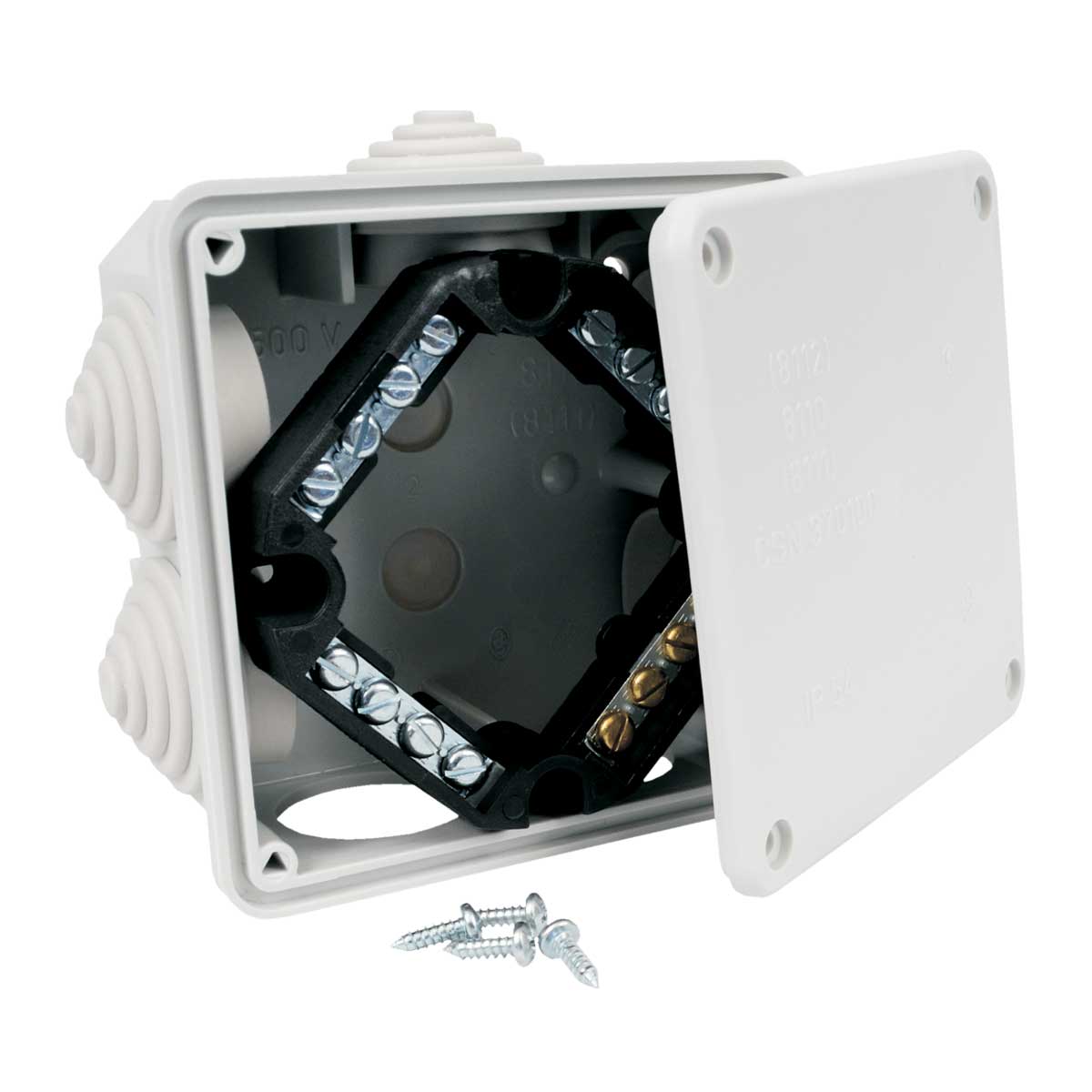

Imagine ilustrativă
8111_EN
| Cod Ean | 8595057603394 |
| Cod vamal | 85381000 |
| Greutate | 0,3720 kg/pcs |
| Culoare | dark grey RAL 7012 |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |

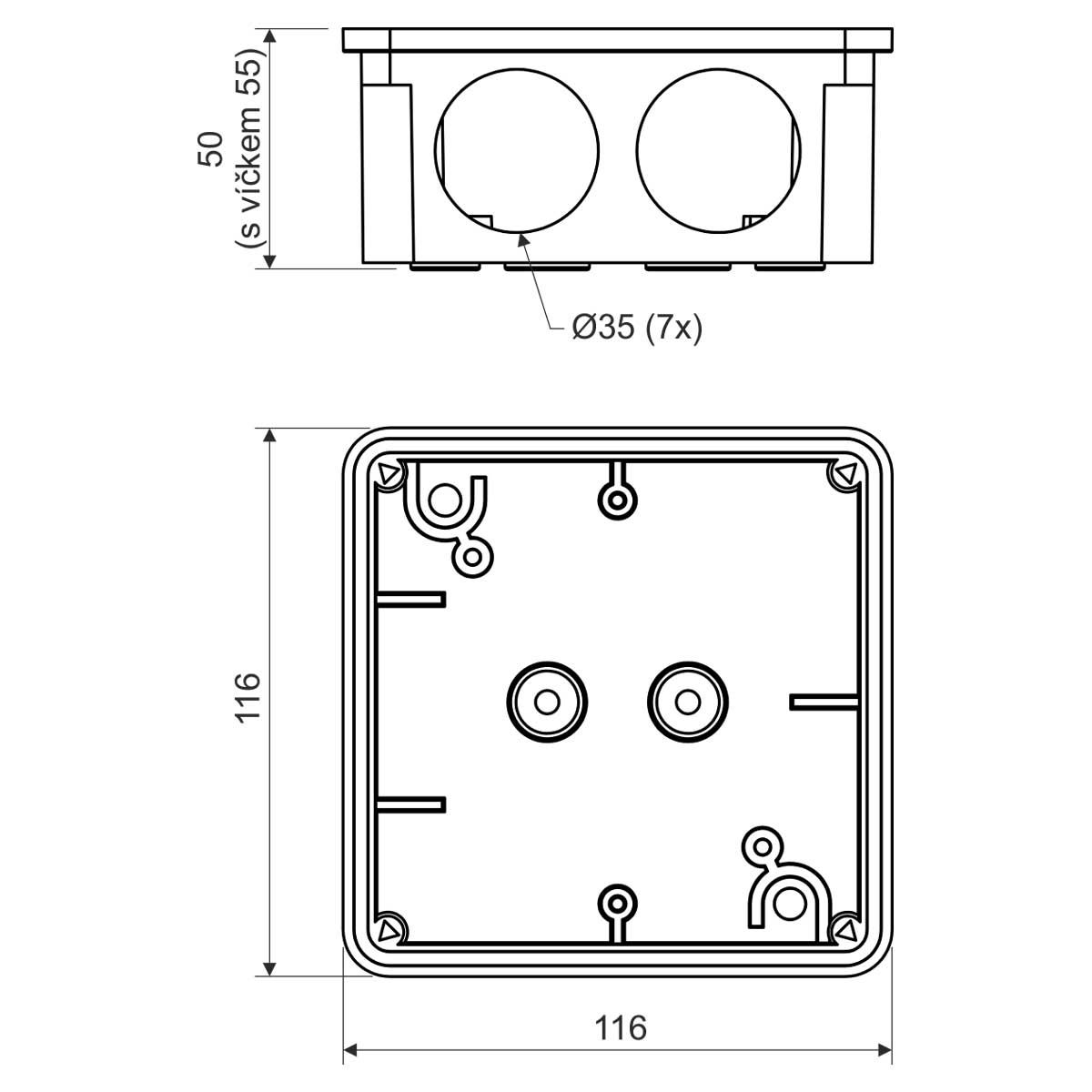

| Lătime | 116 mm |
| Înăltime | 116 mm |
| Adâncime | 55 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - D |
| Extinderea reacției la foc a materialelor de bază Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1 - F | |
| Tipuri de protecție | IP 54 |
| Standarde | ČSN EN 60 670-1 |
| Descriere impachetare the grommets, terminal plates, screws for mounting lid and terminal plates inserted in the box, each box is packed in a shrink foil and labeled | |
For installation in environment with increased humidity, dust, chemical and corrosion resistance in environments with increased risk of mechanical damage. Universal grommets for cables and pipes, grommets can be ordered separately. To install on materials with fire classes E or F, use thermally insulating pad.
