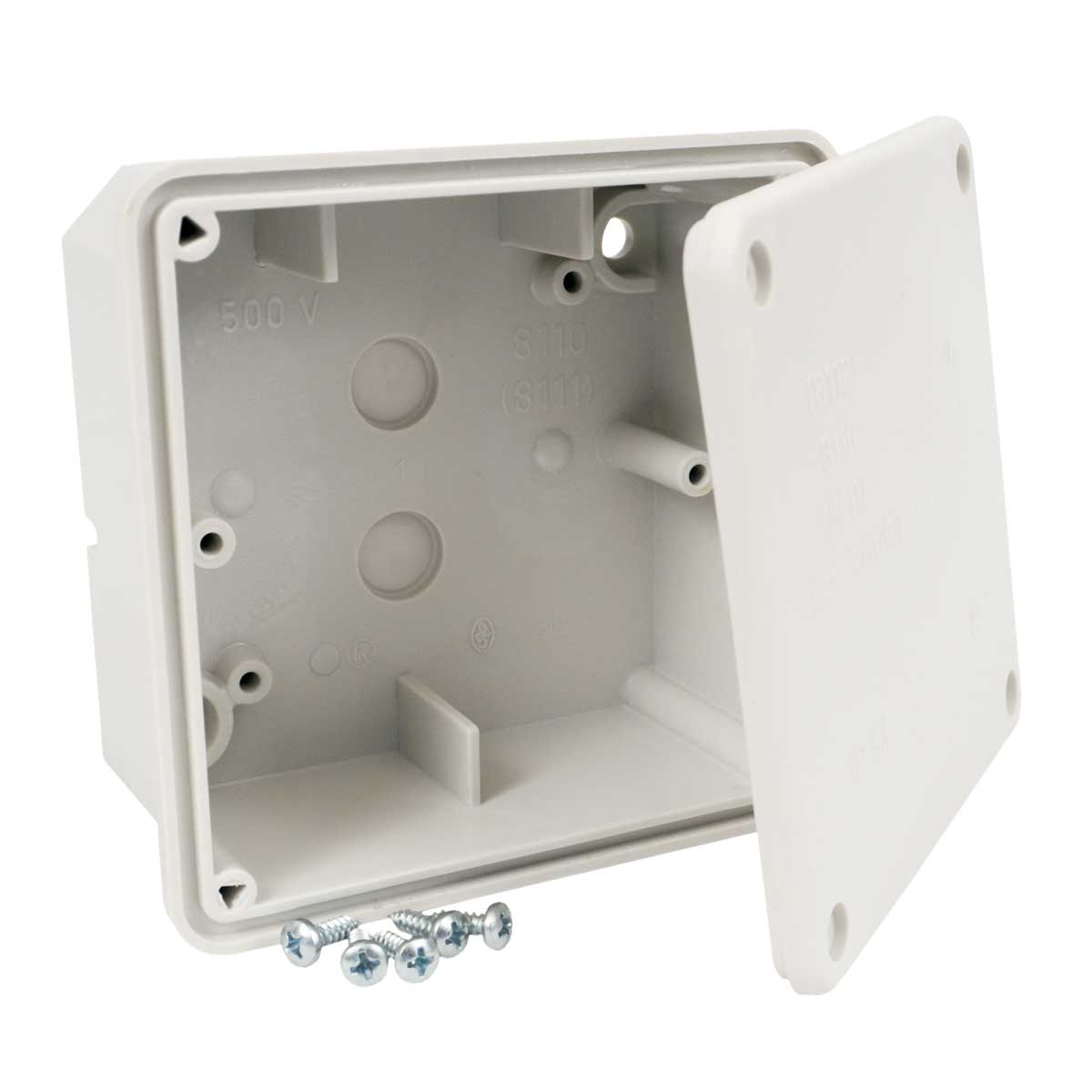

Krabice

Atasamente si certificari

Imagine ilustrativă

Datový list
8112_EN

Certifikace
Certificate ESČ
Declaration RoHS
Declaration REACH
Conformity declaration

Cod Ean	8595057603356
Cod vamal	39259080
Greutate	0,2180 kg/pcs
Culoare	dark grey RAL 7012
Material	PVC
Material fără plumb	yes
Cu suto-stingere	30 s
Voltaj nominal	<= 400 V
Curent nominal	<= 16 A
Rezistența la temperatură	-5 - 60 °C
Testat cu buclă incinsă	850 °C
Lătime	116 mm
Înăltime	116 mm
Adâncime	55 mm
Clasa de reacţie la foc a materialului de fond	A1 - D
Tipuri de protecție	IP 54
Standarde	ČSN EN 60 670-1
Descriere impachetare the screws inserted in the box, each box is packed in a shrink foil and labeled

For installation in environment with increased humidity, dust, chemical and corrosion resistance in environments with increased risk of mechanical damage. Closed box without inlets. To install on materials with fire classes E or F, use thermally insulating pad.
