Cod Ean8595057627291
Cod vamal73079290
Greutate0,3050 kg/pcs
Materialsteel
Acoperire de suprafată
ZNM: Sendzimir Galvanized, zinc layer 15 - 27 micron, replaces primer, medium corrosion resistance - group - 2
Rezistența la temperatură-60 - 250 °C
Rezistență mecanică1250 N/5cm
Protectie mecanicăIK10
Diametru exterior28,3 mm
Unghi incovoiere120 mm
Cot90 °
Funcționalitate în focP90-R, E90, PS90
Tip cu filetP21
Cod se sortareKód triedenia44561
StandardeČSN EN 61386-1 ed.2
Standardele cu privire lade rezistența la focČSN 73 0895, DIN 4102-12, STN 92 0205

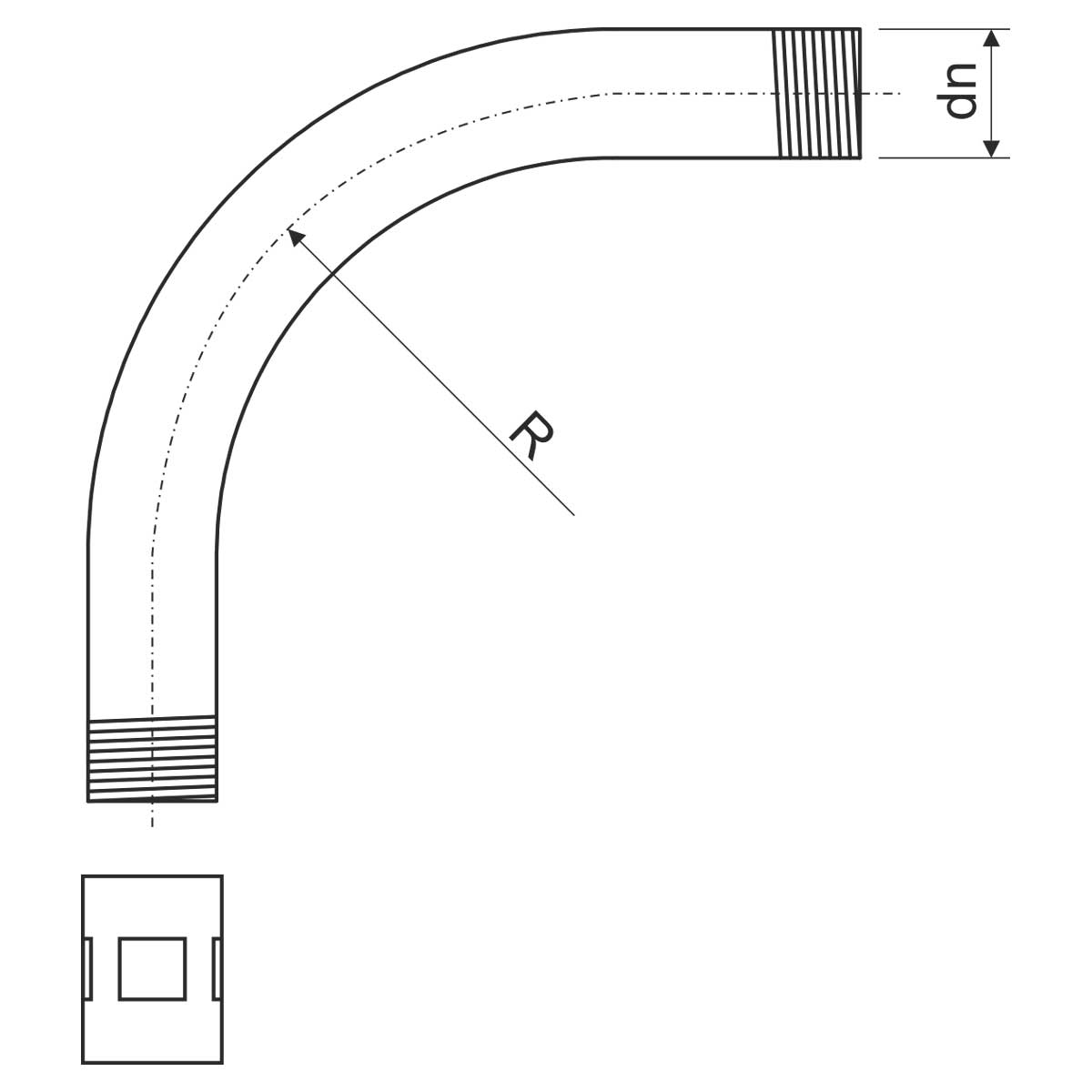

Elbows are fitted with a connector on one side.

Note for system with maintained functionality in fire:
For connection of ČSN elbows and pipes it is necessary to order couplings, which replace the already supplied couplings, supplied with elbows and tubes.
You find more information in the catalogue Systems with maintained functionality in fire.
