Conformity declaration
| Cod Ean | 8595568934826 |
| Cod vamal | 39259020 |
| Greutate | 0,1210 kg/m |
| Culoare | white |
| Material | HF |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Înăltime | 41 mm |
| Lungime | 1 m |
| Utilizare | For canals PK 110X65 D HF, PK 170X765 D HF. |
| Zonă cu pericol de explozie Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Standarde | ČSN EN 50 085-1 |

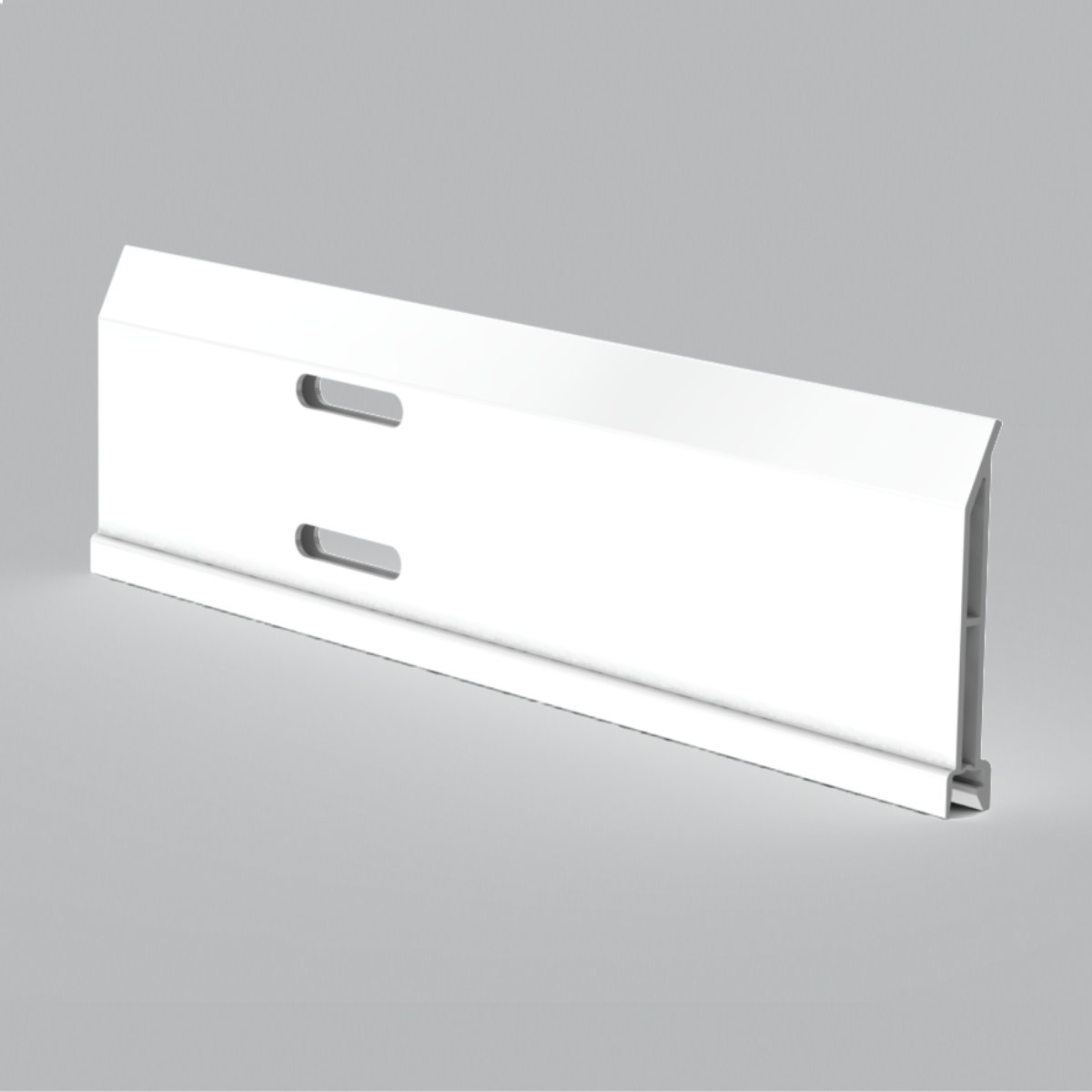

It is used to divide the interior of the halogen-free trunkings, thus allowing a better manipulation with the inserted cables and clarity.
