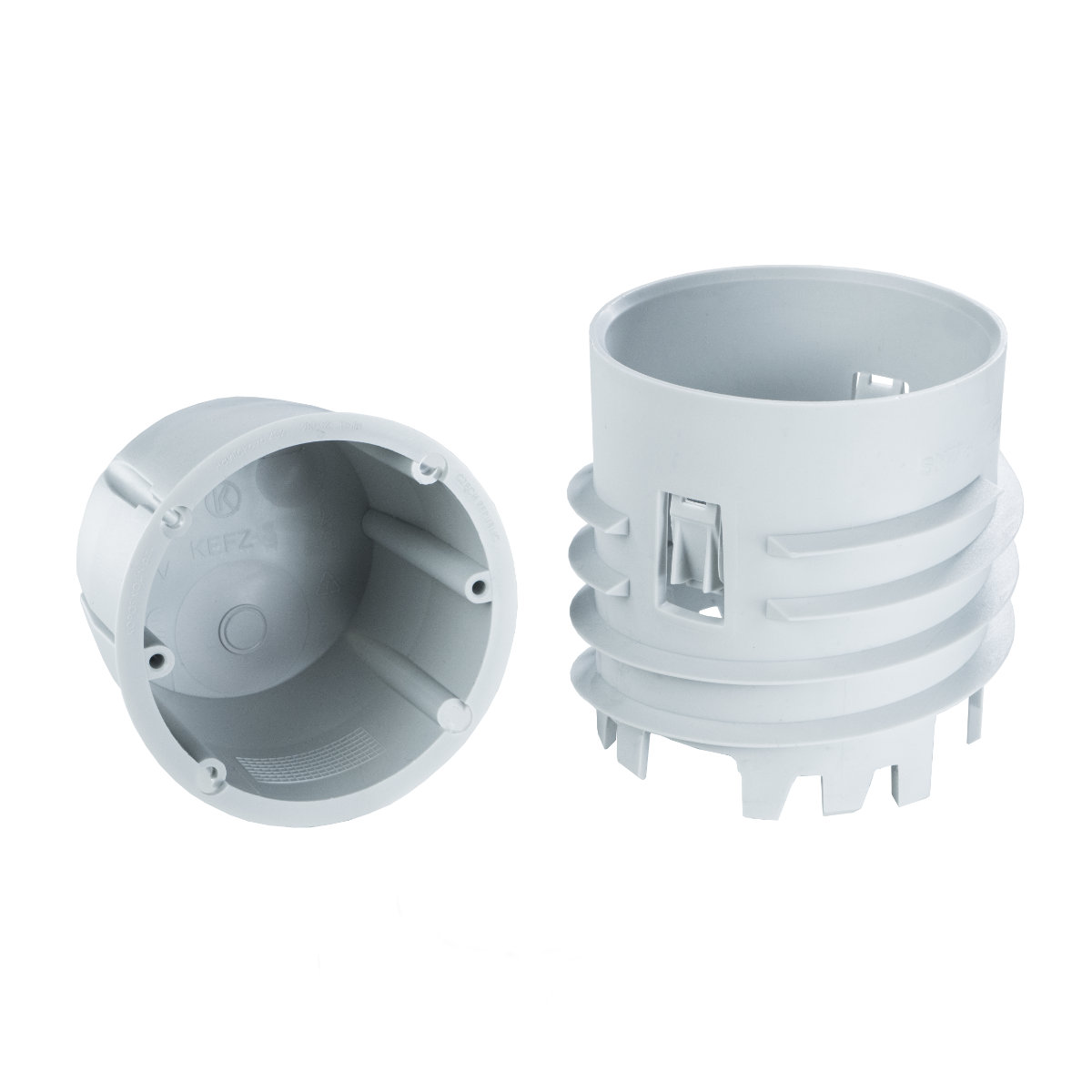

Imagine ilustrativă
KEFZ 80_EN
| Cod Ean | 8595568936288 |
| Cod vamal | 39259080 |
| Greutate | 0,0390 kg/pcs |
| Material | PP |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -25 - 60 °C |
| Testat cu buclă incinsă | 850 °C |

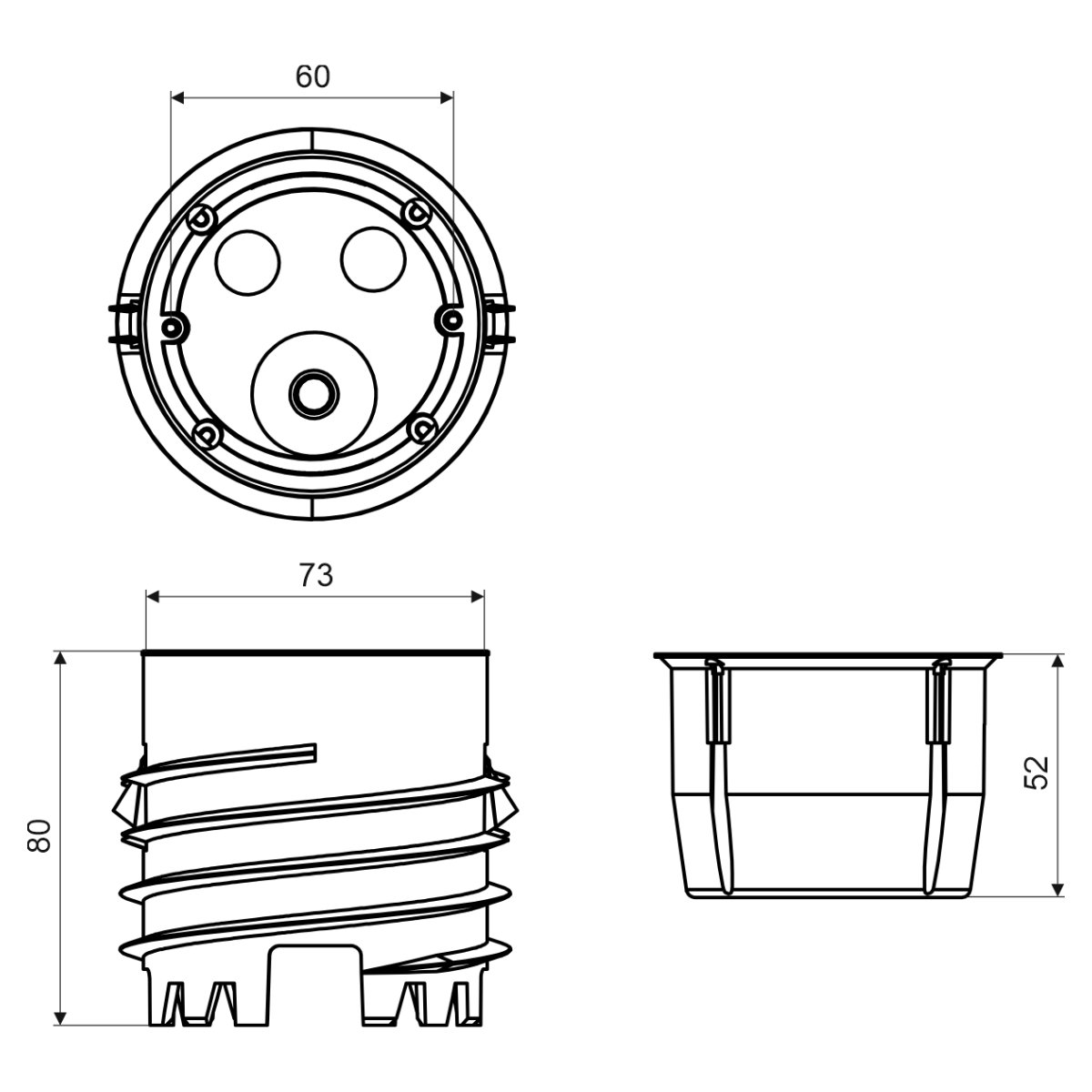

| În medie | 73 mm |
| Adâncime | 52 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Permite instalarea aparatajului dublu | yes |
| Descriere impachetare individual boxes are packed in separate cardboards | |
For the installation of devices in insulated facades of buildings from an insulation layer thickness of 80 mm. The box is suitable for facade polystyrenes and mineral wool. The box can also be mounted in finally made insulated facades. The package includes a box carrier, wiring box, assembly instructions and appropriate screws. For the first installation, it is necessary to buy the KEFZ 80/VDZ set, which also contains a manual drilling set. Robust construction.
