Imagine ilustrativă
MDFZ 80VDZ_EN
| Cod Ean | 8595568936295 |
| Cod vamal | 39259080 |
| Greutate | 0,1323 kg/pcs |
| Material | PP |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -25 - 60 °C |
| Testat cu buclă incinsă | 850 °C |

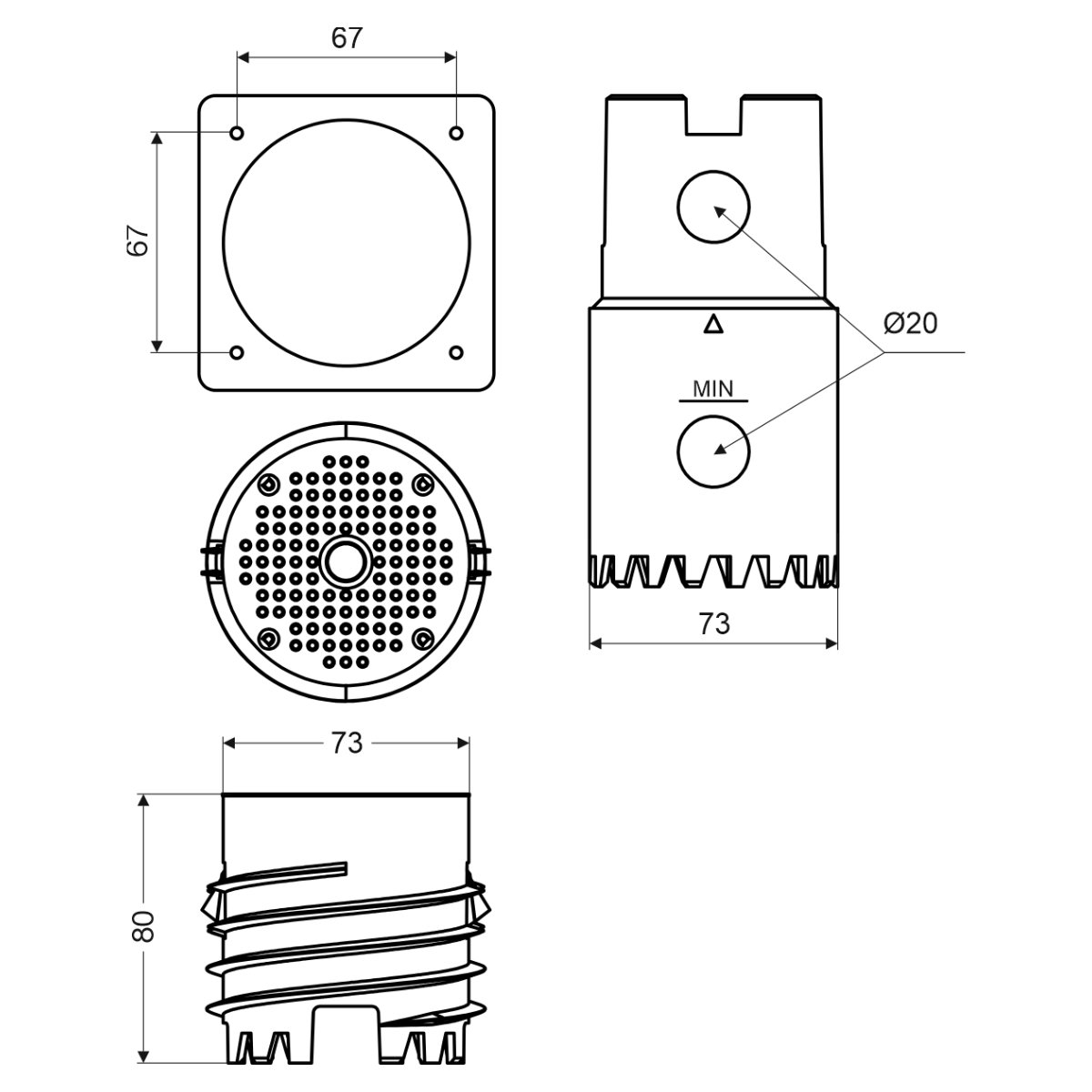

| În medie | 73 mm |
| Adâncime | 80 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Descriere impachetare | individual sets packed in individual cartons |

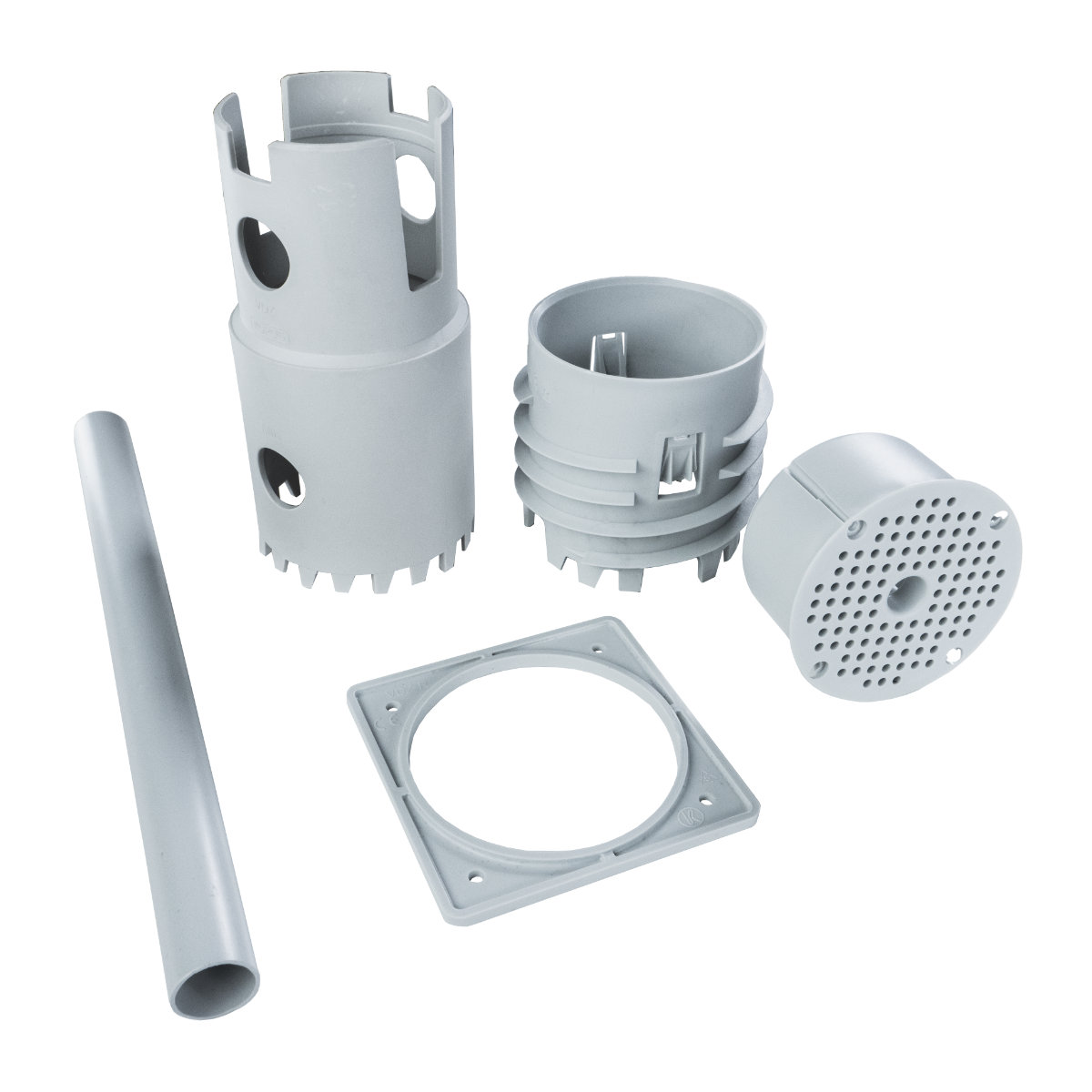

For the installation of smaller electrical devices (motion sensors, cameras, etc.) on insulated building facades with an insulation layer thickness of min. 80 mm. The mounting plate is suitable for facade polystyrenes and mineral wool. The box can also be mounted in finally made insulated facades. Maximum load 15N. The package includes a manual drilling set, mounting plate carrier, mounting plate, assembly instructions and appropriate screws. To install more plates, it is possible to order one MDFZ 80/VDZ set and hereinafter just MDFZ 80. Robust construction.
