Imagine ilustrativă
PPS_EN
| Cod Ean | 8595568941169 |
| Cod vamal | 40082900 |
| Greutate | 1,1500 kg/pcs |
| Material | rubber |
| Stabil la UV/Material stabil la UV | yes |
| Lătime | 250 mm |
| Înăltime | 50 mm |
| Adâncime | 100 mm |

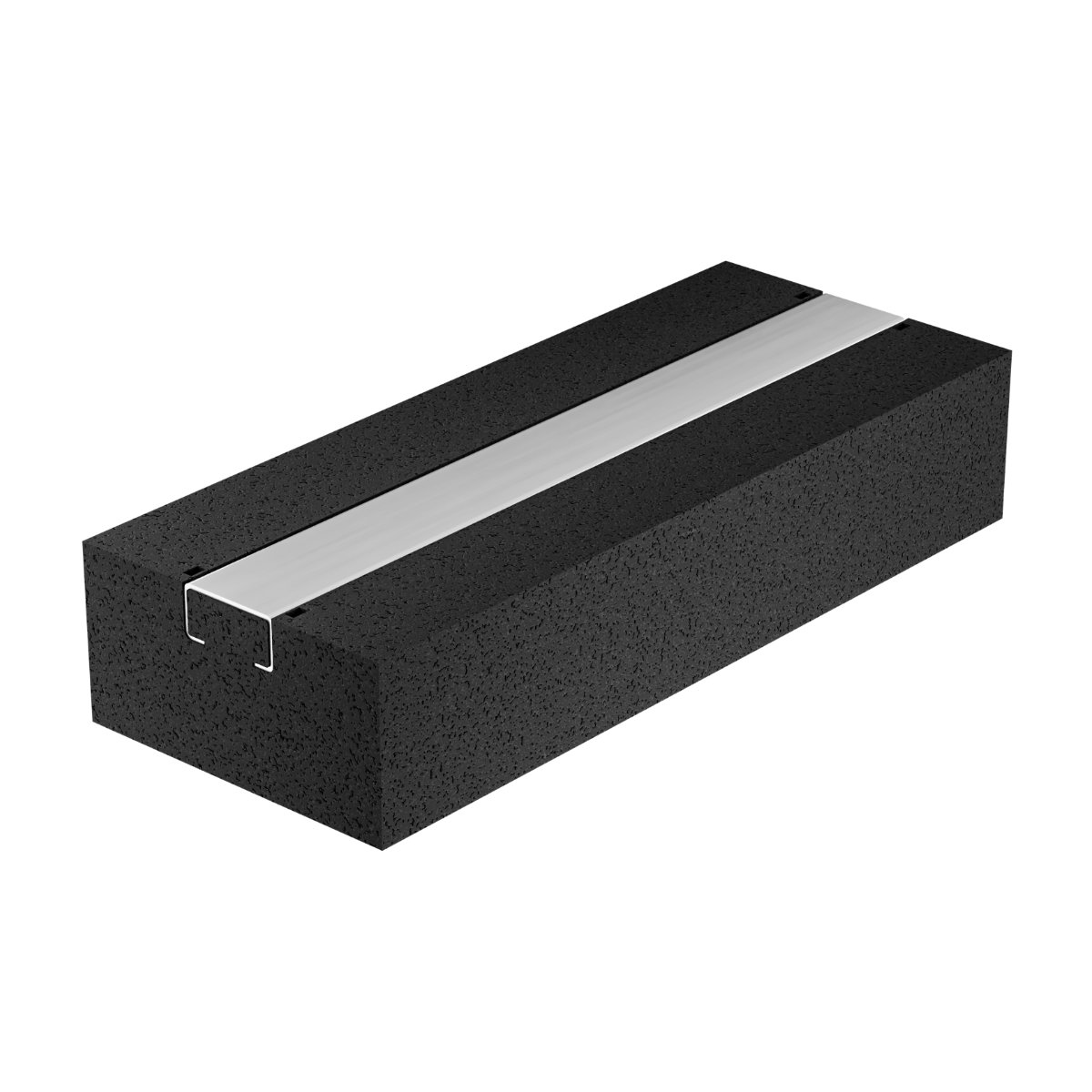

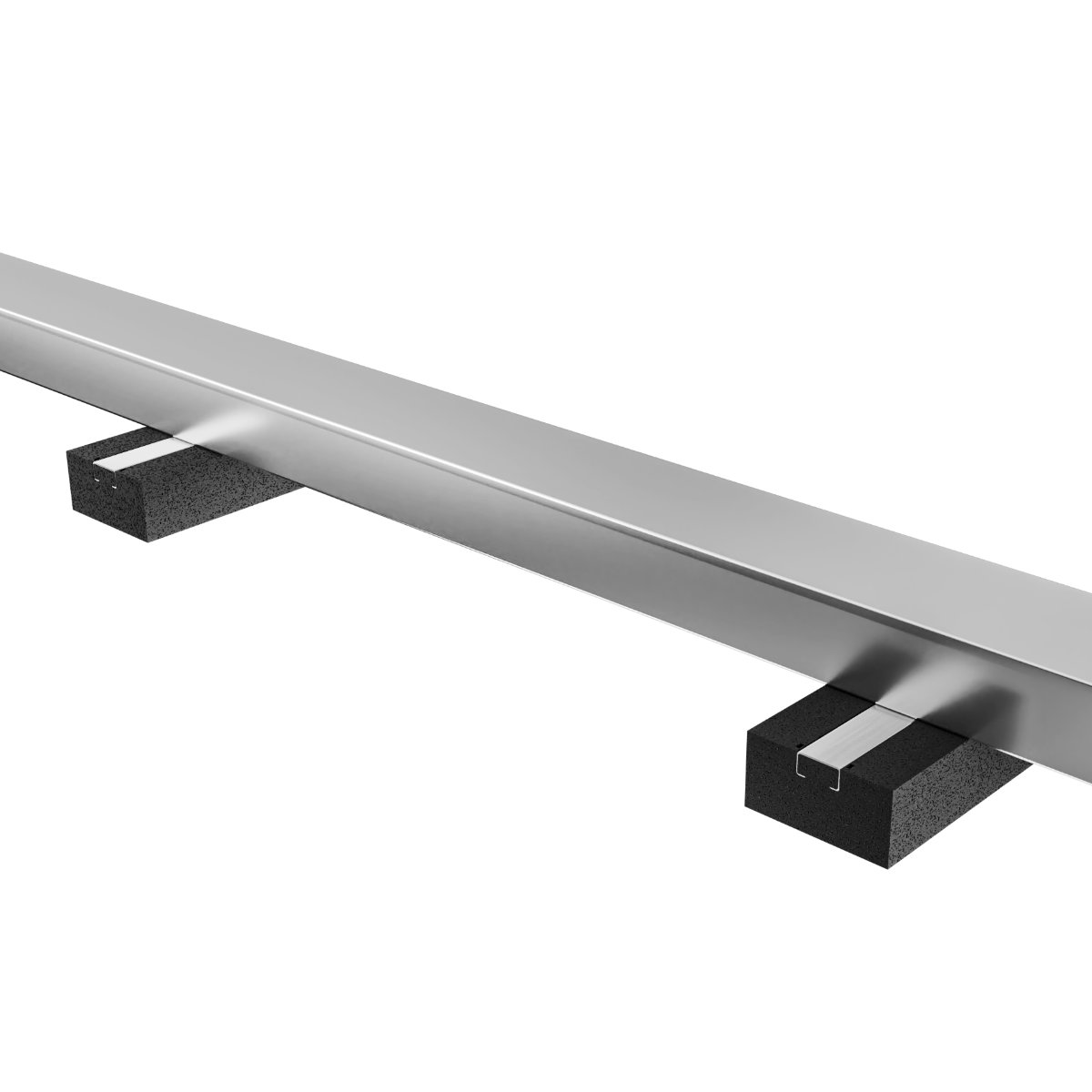

The washers are designed to support cable trays on flat roofs. The washer is made of a rubber material that is UV resistant. On the underside of the pad there is an aluminium foil with an anti-slip treatment, which acts as an insulating layer for direct contact with roofs made of PVC material. The PPS1 L30_GZM washer has a press-fit rail made of steel with a Magnelis® finish. Installation of the cable tray is done by direct attachment with a self-drilling screw (e.g. STP 4.2X25 TX) through the bottom of the cable tray into the pad at the location of the metal rail.
