KOPOFLEX_EN
| Cod Ean | 8595057643727 |
| Cod vamal | 39173300 |
| Greutate | 0,3800 kg/m |
| Culoare | red |
| Material | HDPE |
| Material fără halogeni | yes |
| Temperatura de instalare | -25 - 90 °C |
| Temperatura de lucru | -55 - 90 °C |
| Rezistență mecanică | 450 N/20 cm |
| Diametru exterior | 90 mm |
| Diametru interior | 75 mm |
| Toleranță | length ± 0,5 m |
| Raza minimă de încovoiere | 400 mm |
| Recomandările producătorului The producer recommends the installation of plastic pipes at temperatures above 0 ° C. | |
| Clasa de reacţie la foc a materialului de fond | A1 |
| Tipuri de protecție | IP 40, if IP 67 sealing ring is used |
| Standarde | ČSN EN 61386-24 |
| În stoc | standard |

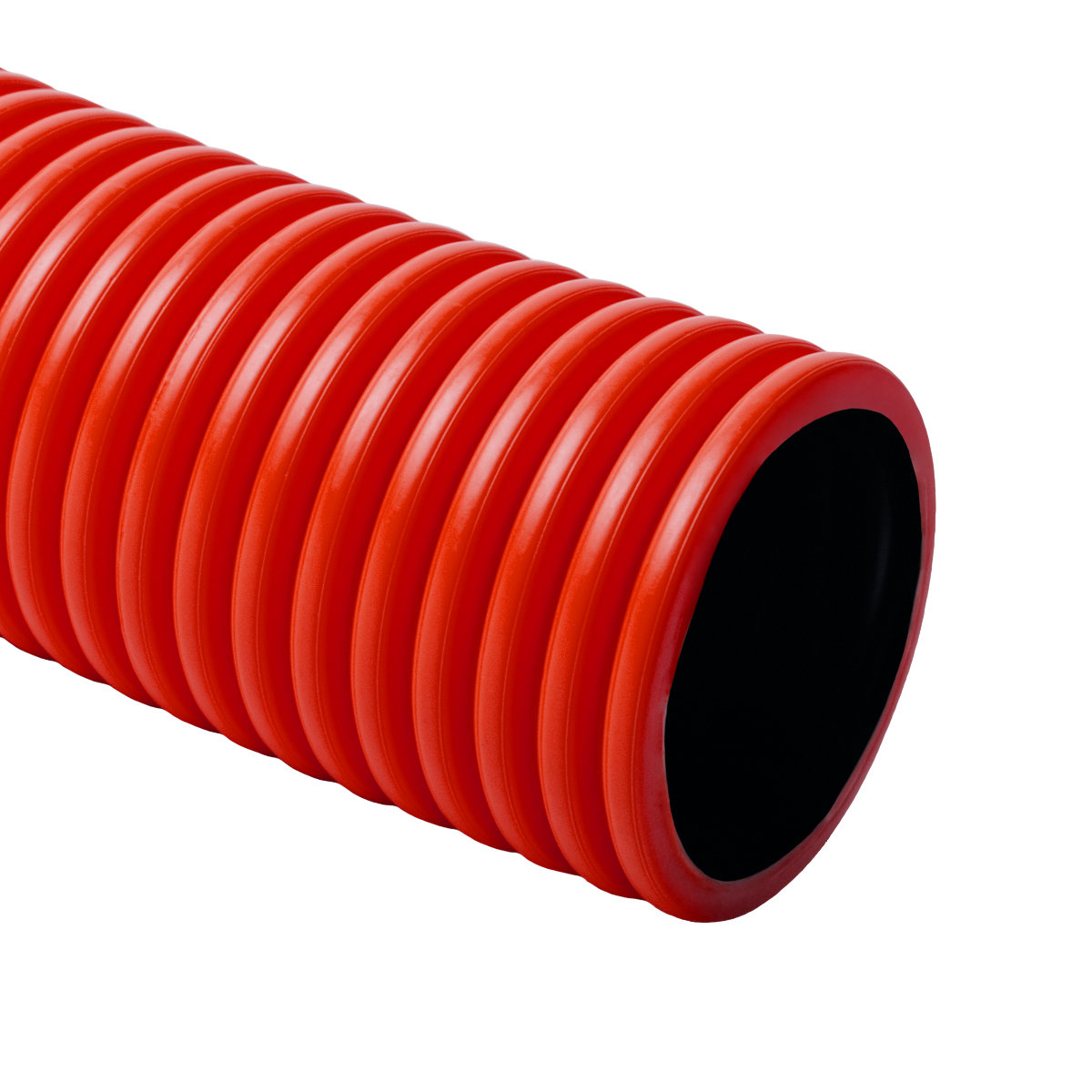

Halogen-free flexible double-coated pipe designed for mechanical protection of all kinds of power and data wiring. The pipes are made in compliance with ČSN EN 61386-24. Each coil is equipped with a pull-through string or wire that ensures easy cable insertion and a coupling on one end. When using a sealing ring, the protection class is IP 67. In case of mechanical compaction of layers above the protector, take care not to exceed the value of the load capacity of the protector - see catalogue PIPE PROTECTORS. The product may have common surface mechanical damage (crumpling, scratches, deformations of the ribs) to the outer wall of the pipe caused by production or transport technology, which does not affect the functionality of the product. The product KF 09***_BA is listed in the database for building products that can be used in Nordic Swan Ecolabelled buildings.
