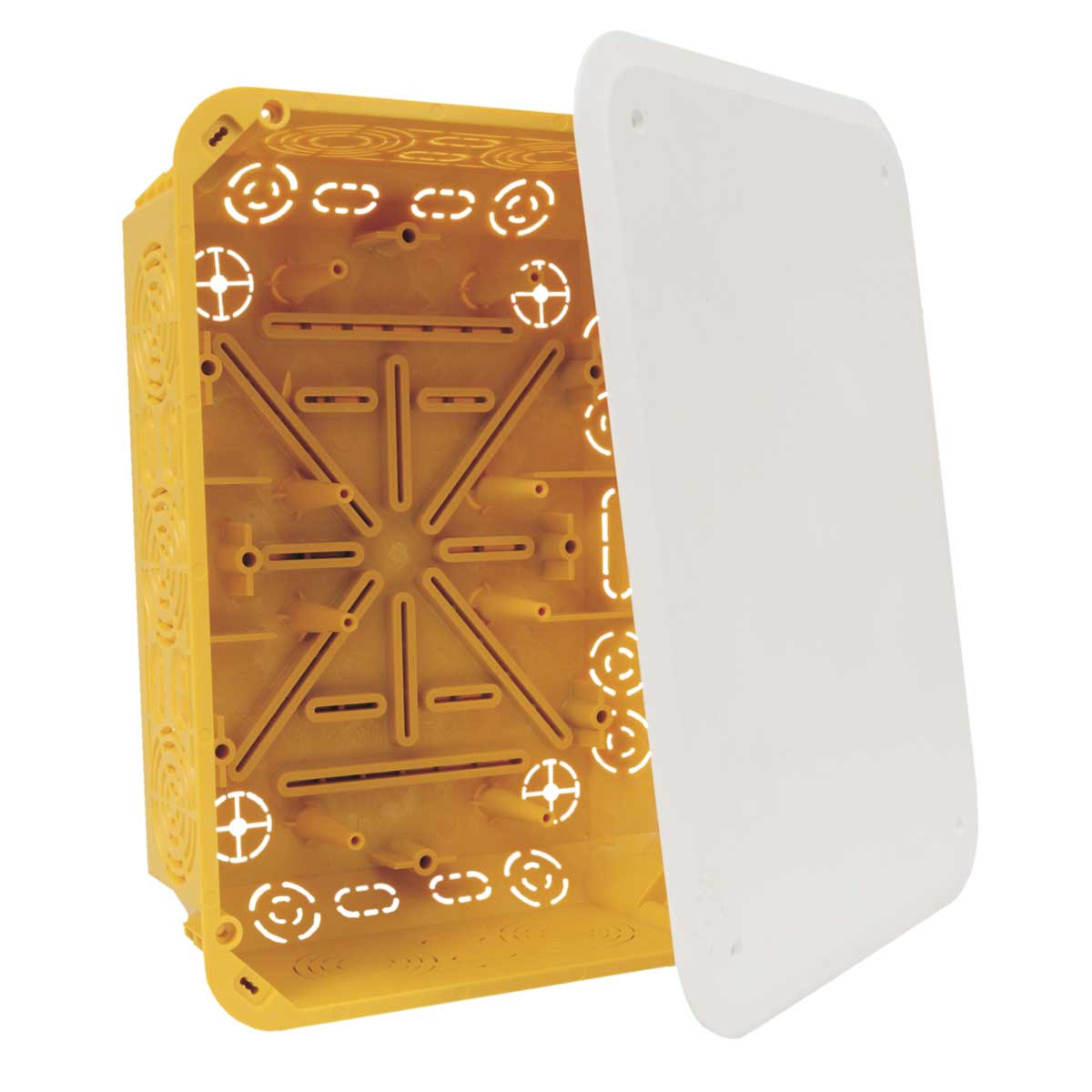

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
KT250L_EN
| Cod Ean | 8595057618640 |
| Cod vamal | 85381000 |
| Greutate | 0,5110 kg/pcs |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |

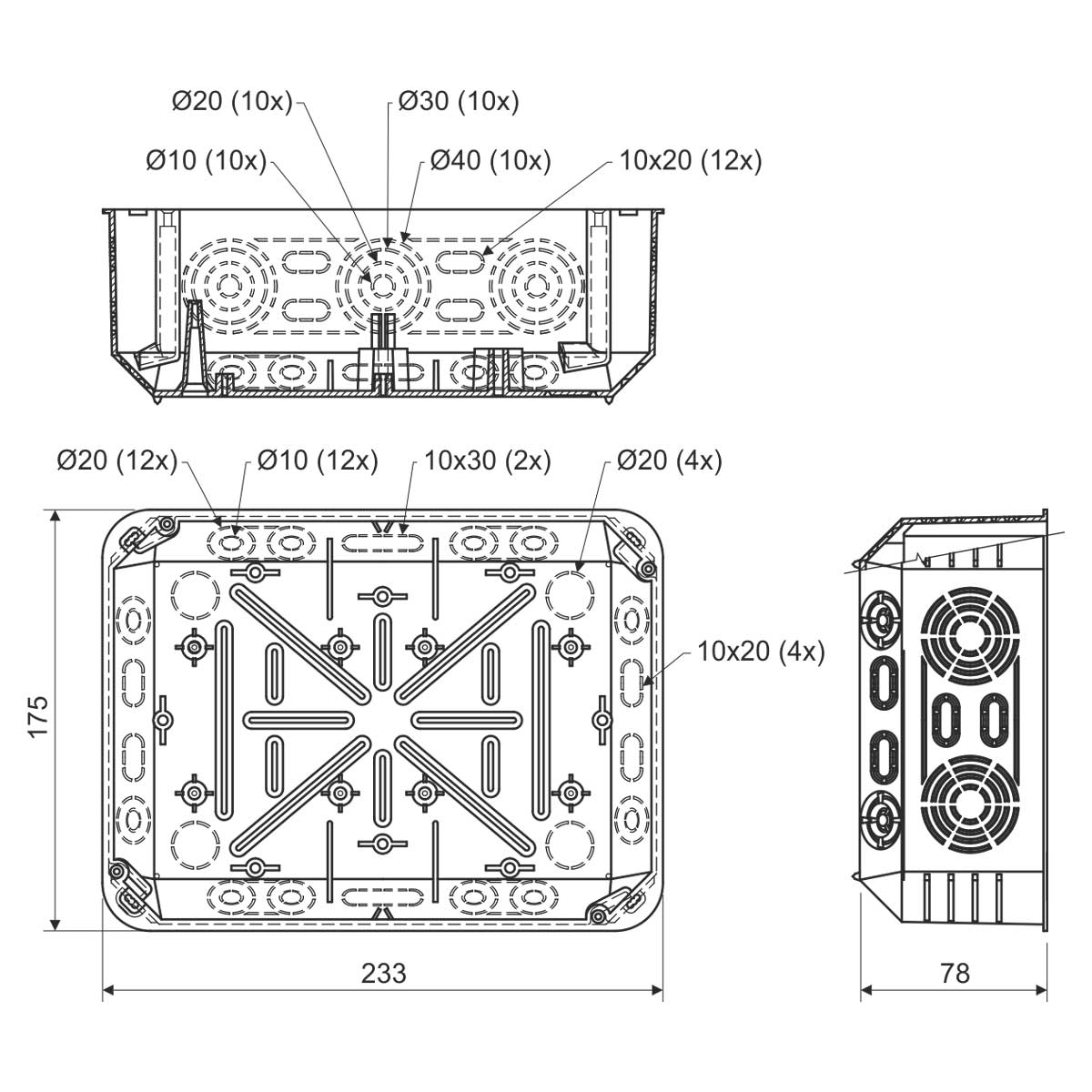

| Lătime | 234 mm |
| Înăltime | 176 mm |
| Adâncime | 79 mm |
| Diametrul orificiului găurit (forat) | 40 mm |
| Recomandările producătorului For all range of products in hollow walls, we recommend using the milling sets supplied by us. | |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Tipuri de protecție | IP 30 |
| Standarde | ČSN EN 60 670-1 |
| Descriere impachetare the screws for fixing the lid and the screws for fixing to plasterboard are installed in the box, individual boxes together with the lid are packed in shrink wrap | |

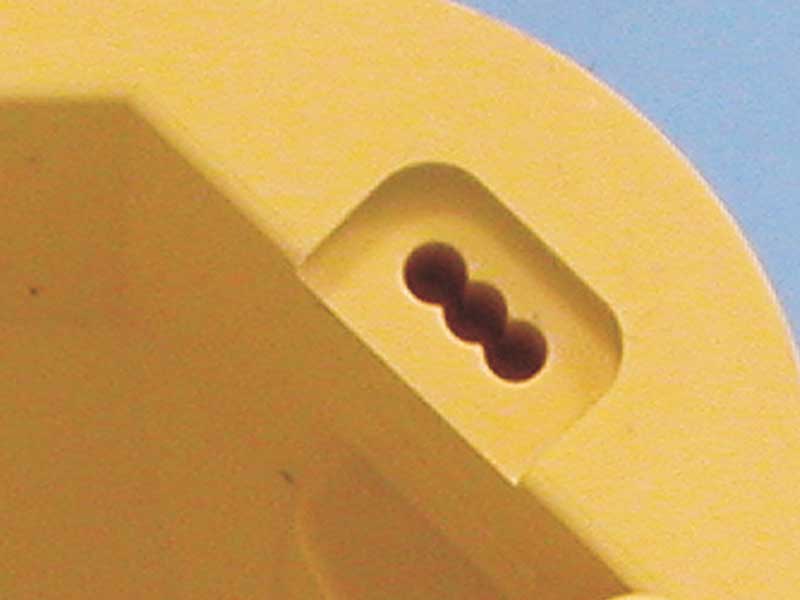

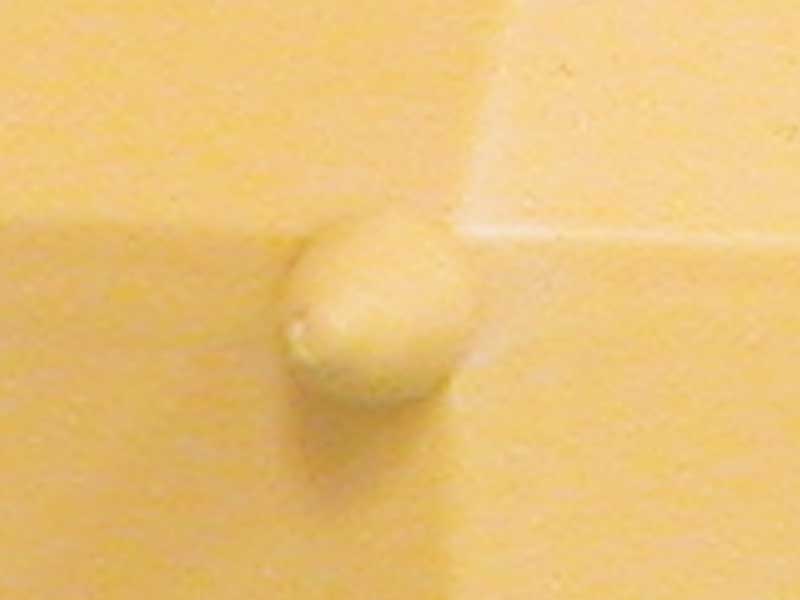

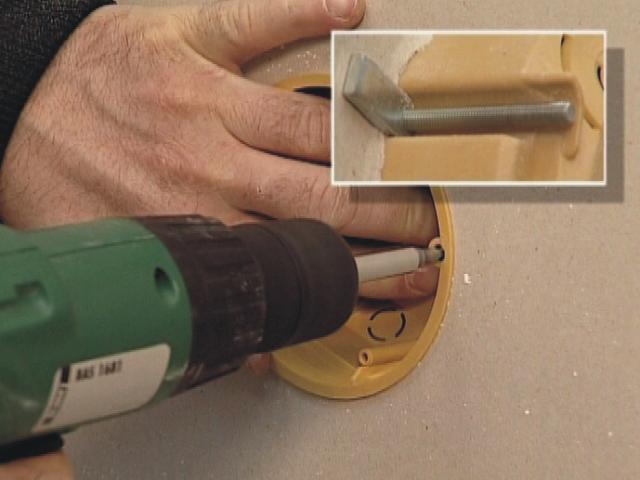

A large number of knockouts for inserting cables and pipes. Possibility to install the support trunking TS 35. Possibility to set the lid in a horizontal position. Possibility to break the sidewall for easier cable handling. Outer side of the bottom contains holes for marking drill holes. Mounting screws are fitted with a triple thread for quick installation. The IP30 protection complys a box fitted with a lid.
