Steel threaded pipes -Sendzimir galvanized steel circumferentially painted black using powdertecgnology (ČSN)

Atasamente si certificari

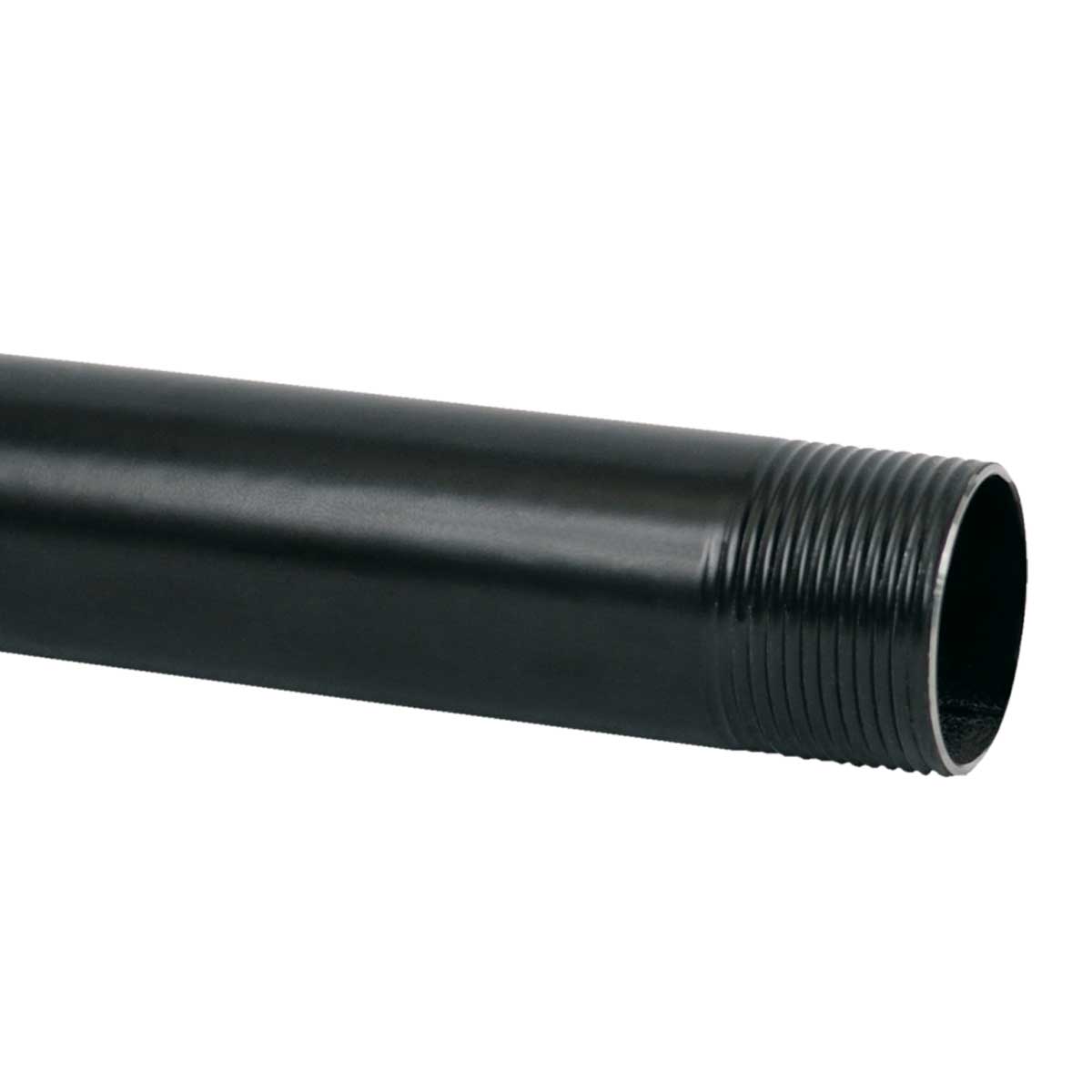

Imagine ilustrativă

6042 EOZ - ocelová trubka závitová obvodově lakovaná (ČSN)

Datový list
trubka_ocel_CSN_zavit_EN
trubky60xx_CSN_PO_EN

Certifikace
Certificate ESČ
Conformity declaration
Declaration RoHS
Declaration REACH
Declaratie de conformitate

Certificare la foc
Certificate DIN
Conformity declaration DIN
Certification report DIN

Cod Ean	8595057618701
Cod vamal	73063041
Greutate	2,0000 kg/m
Culoare	black
Material	steel
Acoperire de suprafată Varnished: Galvanized steel Sendzimir powder coated, color RAL 9005 black, medium corrosion resistance - Group 2
Rezistența la temperatură	-60 - 250 °C
Rezistență mecanică	1250 N/5cm
Protectie mecanică	IK10
Lungime	3 m
Diametru exterior	54 mm
Diametru interior (min.)	51 mm
Funcționalitate în foc	P90-R, E90, PS90
Tip cu filet	P42
Cod se sortareKód triedenia	44561
Standarde	ČSN EN 61386-1 ed.2
Standardele cu privire lade rezistența la foc	ČSN 73 0895, DIN 4102-12, STN 92 0205
Încărcătură maximă pentru rezistența la foc	10 kg

The pipes are suitable for mechanical protection of conductors and cables. Threaded conduits are supplied with one coupler. While using pipes along with bushing 4813/P - 4842/P and 4913 - 4942 is scope of application only -5 - +60 °C.

Note for system with maintained functionality in fire:
max. 1 piece of cable in the pipe
You find more information in the catalogue Systems with maintained functionality in fire.
