| Cod Ean | 8595057625280 |
| Cod vamal | 39174000 |
| Greutate | 0,0120 kg/pcs |
| Culoare | black |
| Material | PA |
| Material fără halogeni | yes |
| Stabil la UV/Material stabil la UV | yes |
| Cu suto-stingere | 30 s |
| Rezistența la temperatură | stable mounting: -50 to + 120 ° C; flexible mounting: -45 to +120 ° C |
| Diametrul exterior al tubului | 16 mm |
| Notă Combination of accessories and pipes is always controlled by outside diameter of the pipe used. | |
| Zonă cu pericol de explozie Can be installed in a zone with the danger of explosion of flammable gases and vapors of zone 2 and into the zone of danger of explosion of flammable dusts of zone 22. | |
| Tipuri de protecție | IP 66 |
| Standarde | ČSN EN 61386-24 |
| Descriere impachetare | Nut is not included. |

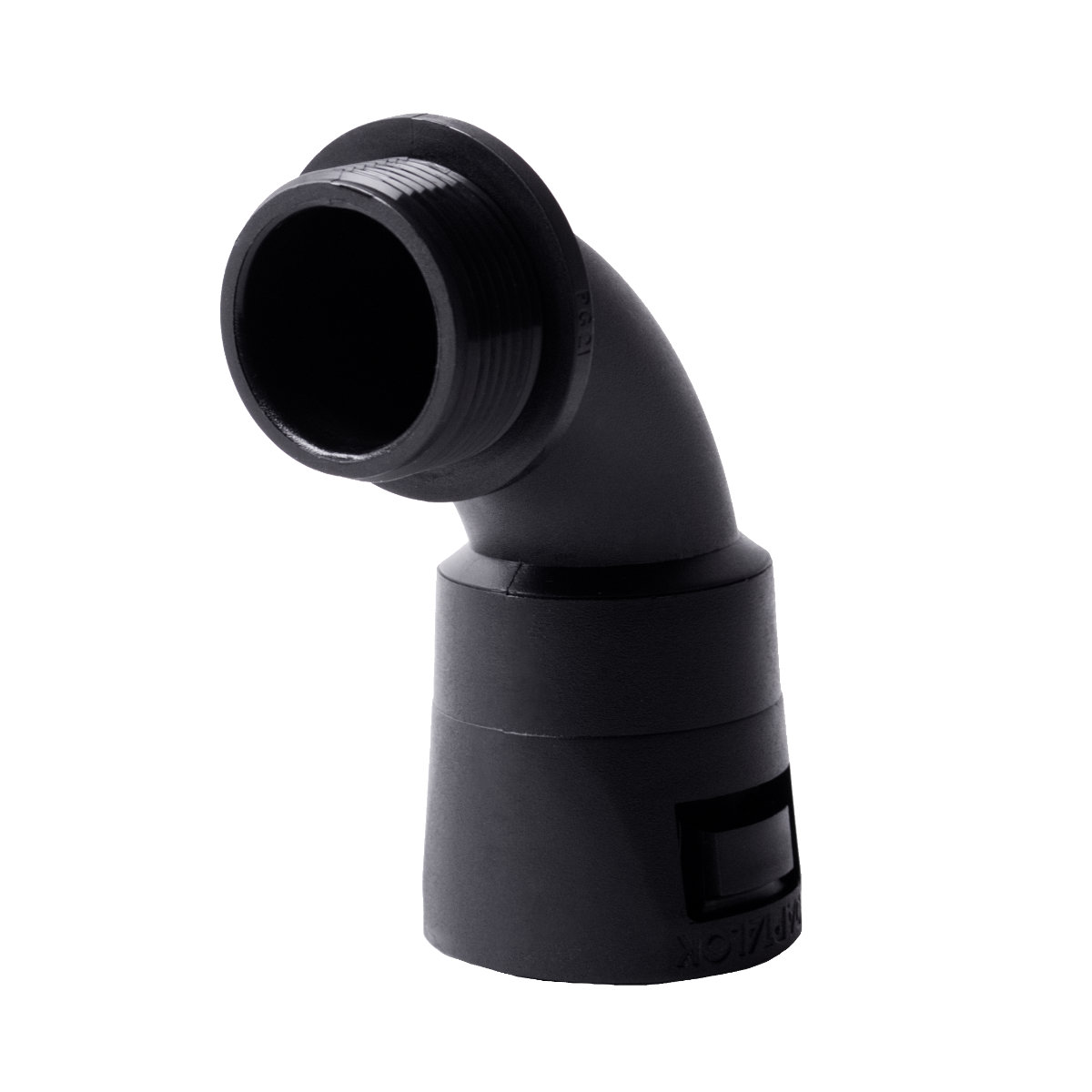

Adaptalok is a system of utilities allowing to terminate and fix the pipe. Utilities allow 45° and 90° tapping and direct threaded termination - M16 - M50 or PG13,5 - PG48. pipe termination is available as for flange as well. Installation and removal is easy and quick.
