Adaptalok nut

Atasamente si certificari

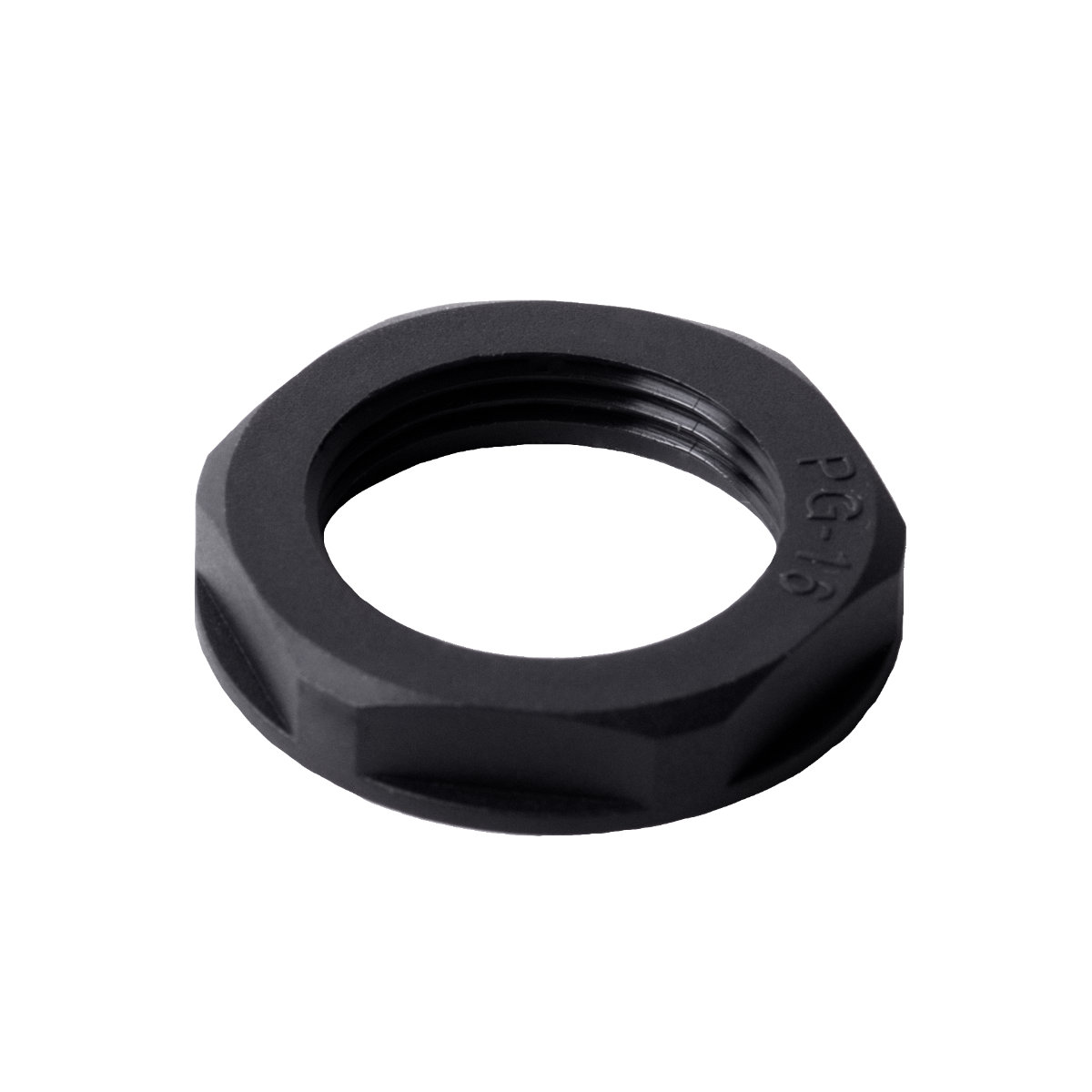

Imagine ilustrativă

Datový list
adaptalok_EN

Certifikace
Declaration RoHS
Declaration REACH

Cod Ean	8595057625648
Cod vamal	39174000
Greutate	0,0025 kg/pcs
Culoare	black
Material	PA
Material fără halogeni	yes
Stabil la UV/Material stabil la UV	yes
Cu suto-stingere	30 s
Rezistența la temperatură	stable mounting: -50 to + 120 ° C; flexible mounting: -45 to +120 ° C
Diametrul exterior al tubului	28 mm
Notă Combination of accessories and pipes is always controlled by outside diameter of the pipe used.
Zonă cu pericol de explozie Can be installed in a zone with the danger of explosion of flammable gases and vapors of zone 2 and into the zone of danger of explosion of flammable dusts of zone 22.
Tipuri de protecție	IP 66
Standarde	ČSN EN 61386-24

Adaptalok is a system of utilities allowing to terminate and fix the pipe. Utilities allow 45° and 90° tapping and direct threaded termination - M16 - M50 or PG13,5 - PG48. pipe termination is available as for flange as well. Installation and removal is easy and quick.
