Steel threaded pipes -Sendzimir galvanized steel circumferentially painted black using powdertecgnology (EN)

Atasamente si certificari

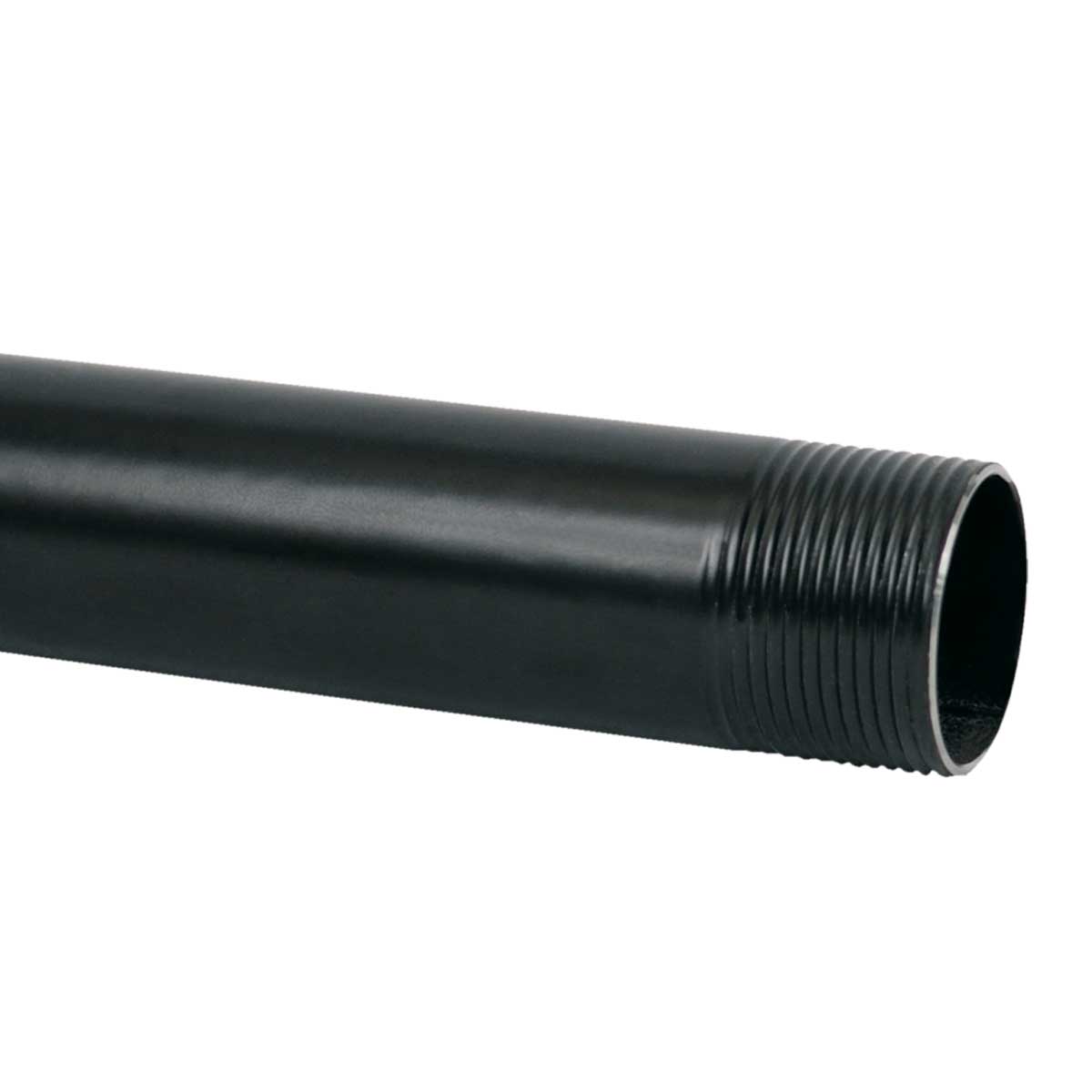

Imagine ilustrativă

6020 EOZ - ocelová trubka závitová obvodově lakovaná (EN)

Datový list
trubka_ocel_EN_zavit_EN
trubky60xx_EN_PO_EN

Certifikace
Declaration RoHS
Declaration REACH
Certificate ESČ
Conformity declaration

Certificare la foc
Certification report DIN
Certificate DIN
Conformity declaration DIN

Cod Ean	8595568919595
Cod vamal	73063041
Greutate	0,7500 kg/m
Culoare	black
Material	steel
Acoperire de suprafată Varnished EOZ: Galvanized steel Sendzimir powder coated, color RAL 9005 black, medium corrosion resistance - Group 2
Rezistența la temperatură	-45 - 250 °C
Rezistență mecanică	4000 N/5cm
Protectie mecanică	IK10
Lungime	3 m
Diametru exterior	20 mm
Diametru interior (min.)	15,8 mm
Funcționalitate în foc	P90-R, E90, PS90
Tip cu filet	M20 x 1,5
Cod se sortareKód triedenia	55561
Standarde	ČSN EN 61386-1 ed.2
Standardele cu privire lade rezistența la foc	ČSN 73 0895, DIN 4102-12, STN 92 0205
Încărcătură maximă pentru rezistența la foc	10 kg

The pipes are suitable for mechanical protection of conductors and cables. Threaded conduits are supplied with one coupler. While using pipes along with bushing 4813/P - 4842/P and 4913 - 4942 is scope of application only -5 - +60 °C.

Note for system with maintained functionality in fire:
max. 1 piece of cable in the pipe
You find more information in the catalogue Systems with maintained functionality in fire.
