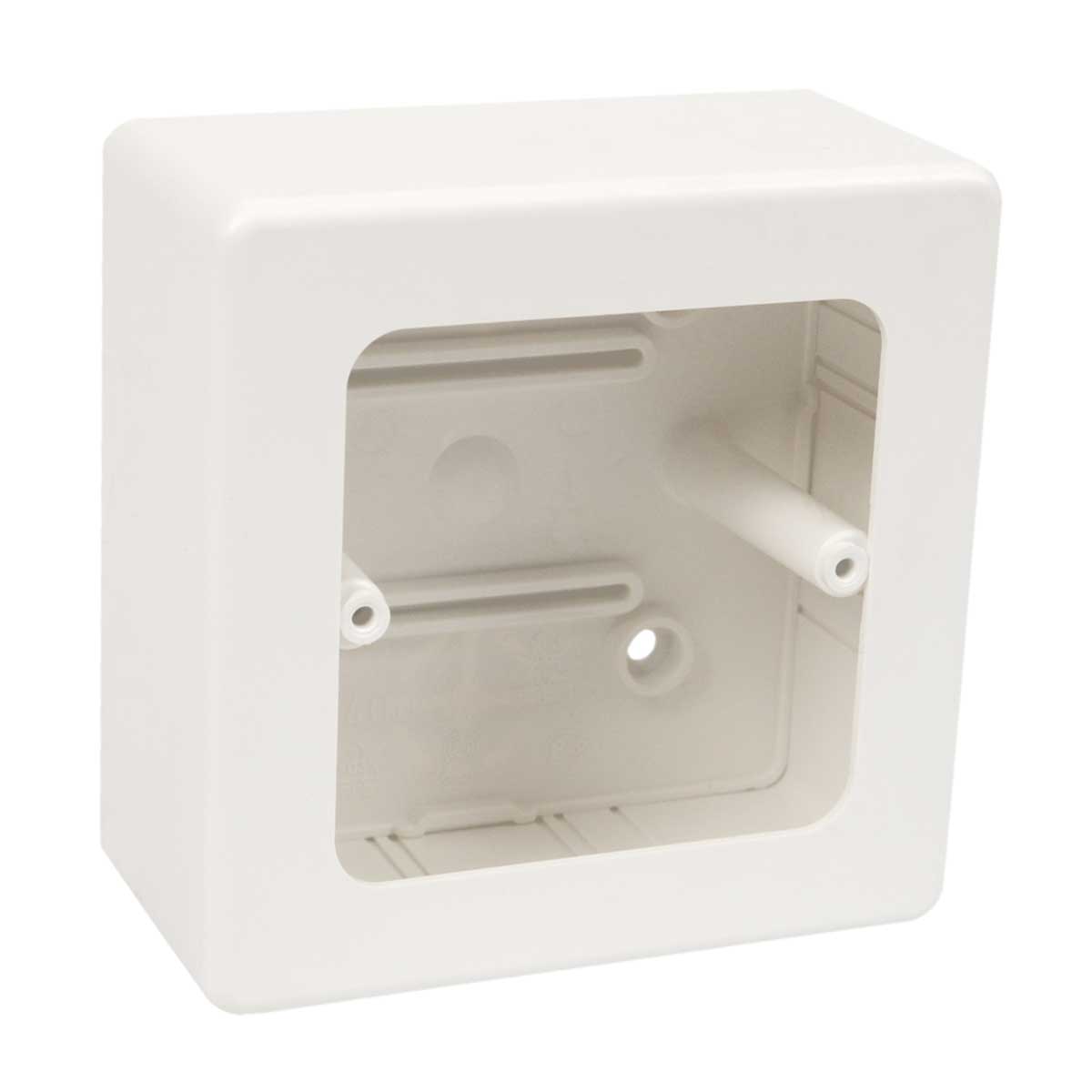

universal box

Atasamente si certificari

Imagine ilustrativă

To download 3D models, please login or create an account and request access.

Datový list
LKM45_EN

Certifikace
Declaration REACH
Declaration RoHS

Cod Ean	8595057634855
Cod vamal	39259080
Greutate	0,0790 kg/pcs
Culoare	white
Material	PVC
Material fără plumb	yes
Cu suto-stingere	30 s
Voltaj nominal	<= 400 V
Curent nominal	<= 16 A
Rezistența la temperatură	-5 - 60 °C
Testat cu buclă incinsă	850 °C

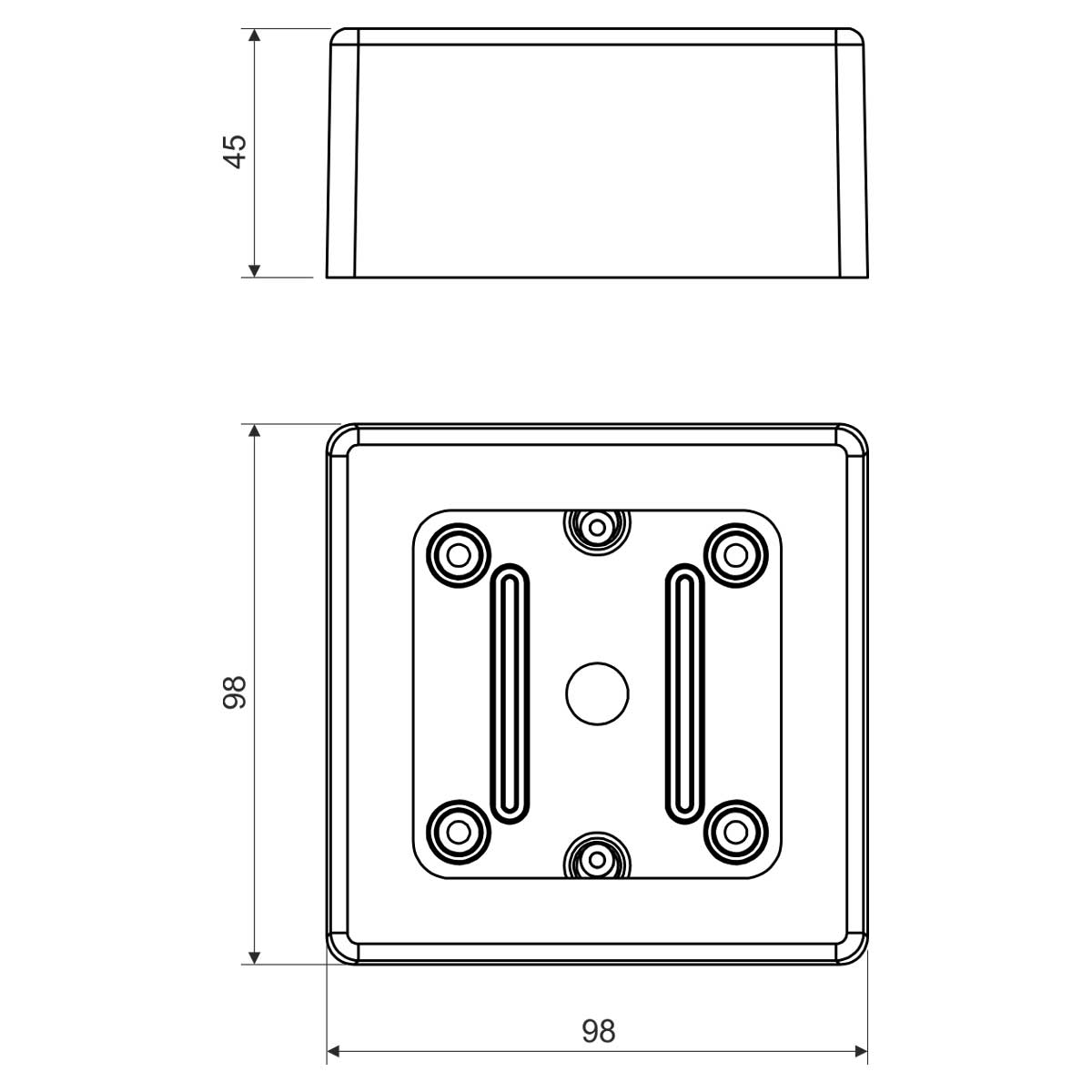

Lătime	98 mm
Înăltime	98 mm
Adâncime	45 mm
Clasa de reacţie la foc a materialului de fond	A1 - D
Standarde	ČSN EN 60 670-1
Descriere impachetare the boxes are packed in a shrink foil of 10 pieces and the screws are enclosed

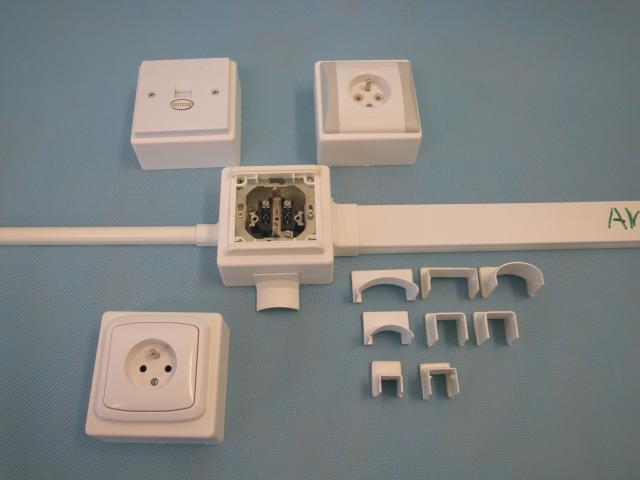

Universal box for most single devices available on the market. Trunking inlet holes are indicated on the side, for trunking with dimensions of up to 40 x 20 mm. The box consists of two parts, the top and bottom part. To install on materials with fire classes E or F, use insulating pad.
