Krabice

Atasamente si certificari

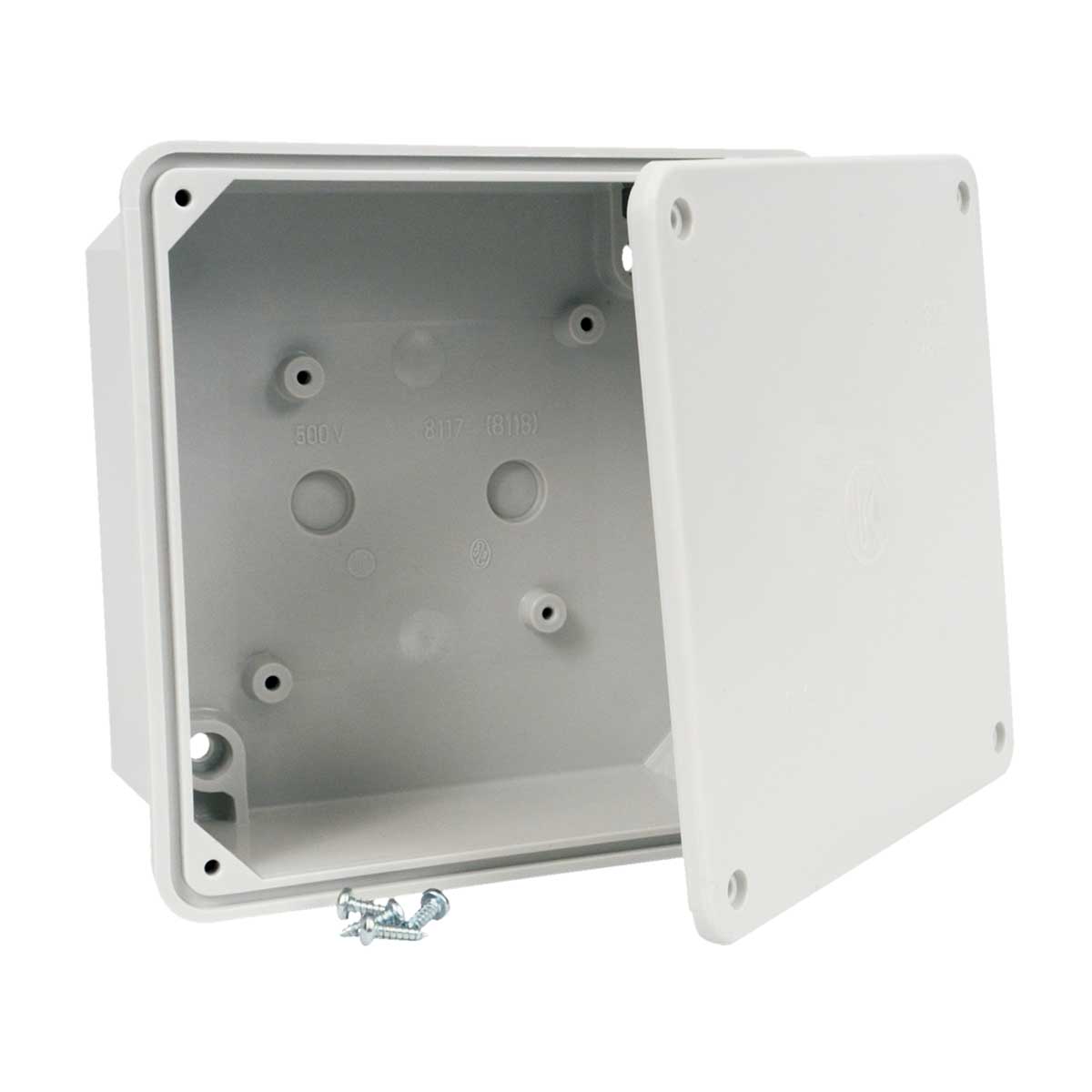

Imagine ilustrativă

Datový list
8119_EN

Certifikace
Declaration RoHS
Declaration REACH
Conformity declaration
Certificate ESČ

Cod Ean	8595057656048
Cod vamal	39259080
Greutate	0,4720 kg/pcs
Culoare	light grey RAL 7035
Material	PVC
Material fără plumb	yes
Cu suto-stingere	30 s
Voltaj nominal	<= 400 V
Curent nominal	<= 16 A
Rezistența la temperatură	-5 - 60 °C
Testat cu buclă incinsă	850 °C

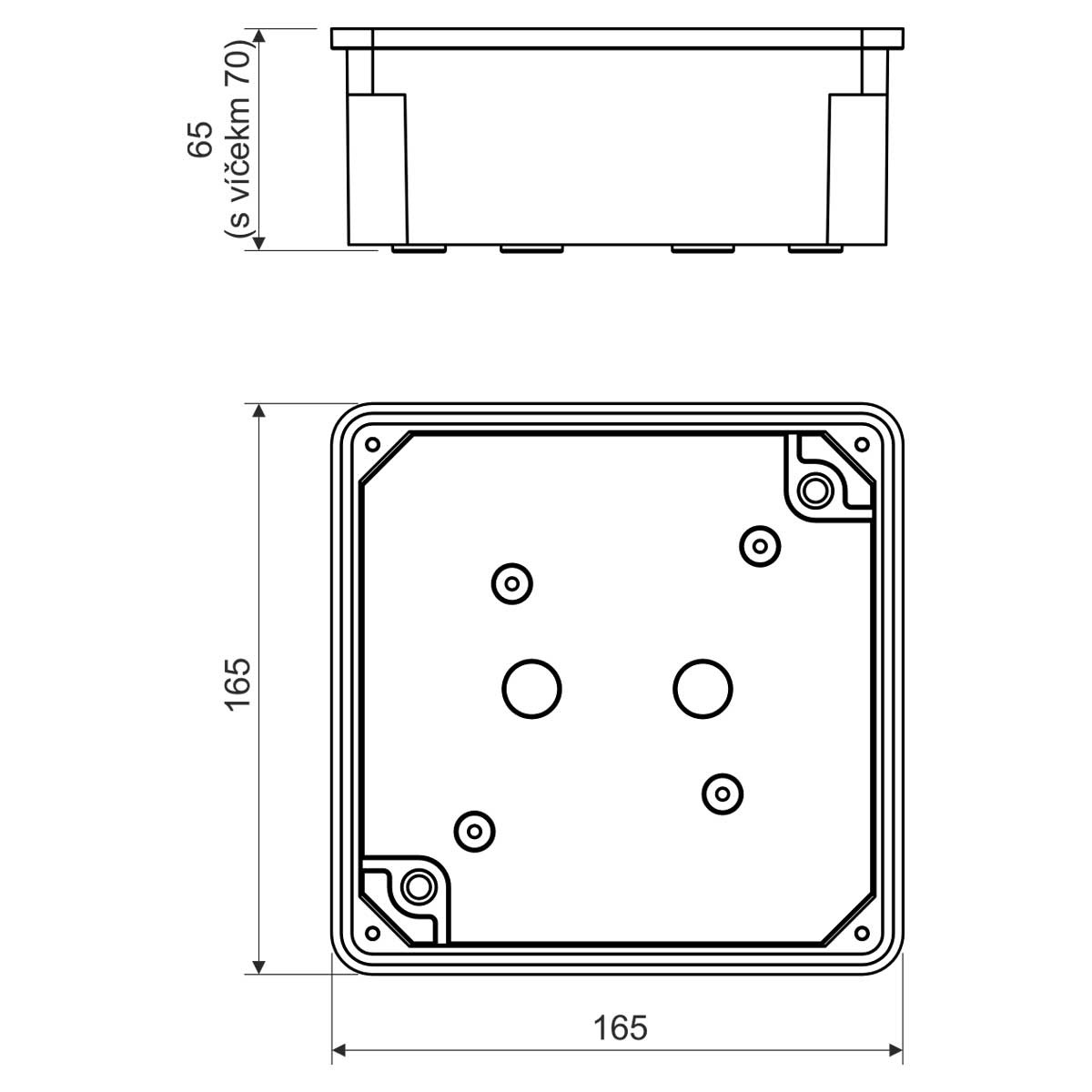

Lătime	165 mm
Înăltime	165 mm
Adâncime	70 mm
Clasa de reacţie la foc a materialului de fond	A1 - D
Extinderea reacției la foc a materialelor de bază Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1 - F
Tipuri de protecție	IP 54
Standarde	ČSN EN 60 670-1
Descriere impachetare the screws inserted in the box, each box is packed in a shrink foil and labeled

For installation in environment with increased humidity, dust, chemical and corrosion resistance in environments with increased risk of mechanical damage. Closed box without inlets. To install on materials with fire classes E or F, use thermally insulating pad.
