Imagine ilustrativă
8102_EN
| Cod Ean | 8595057655966 |
| Cod vamal | 85381000 |
| Greutate | 0,1933 kg/pcs |
| Culoare | light grey RAL 7035 |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |

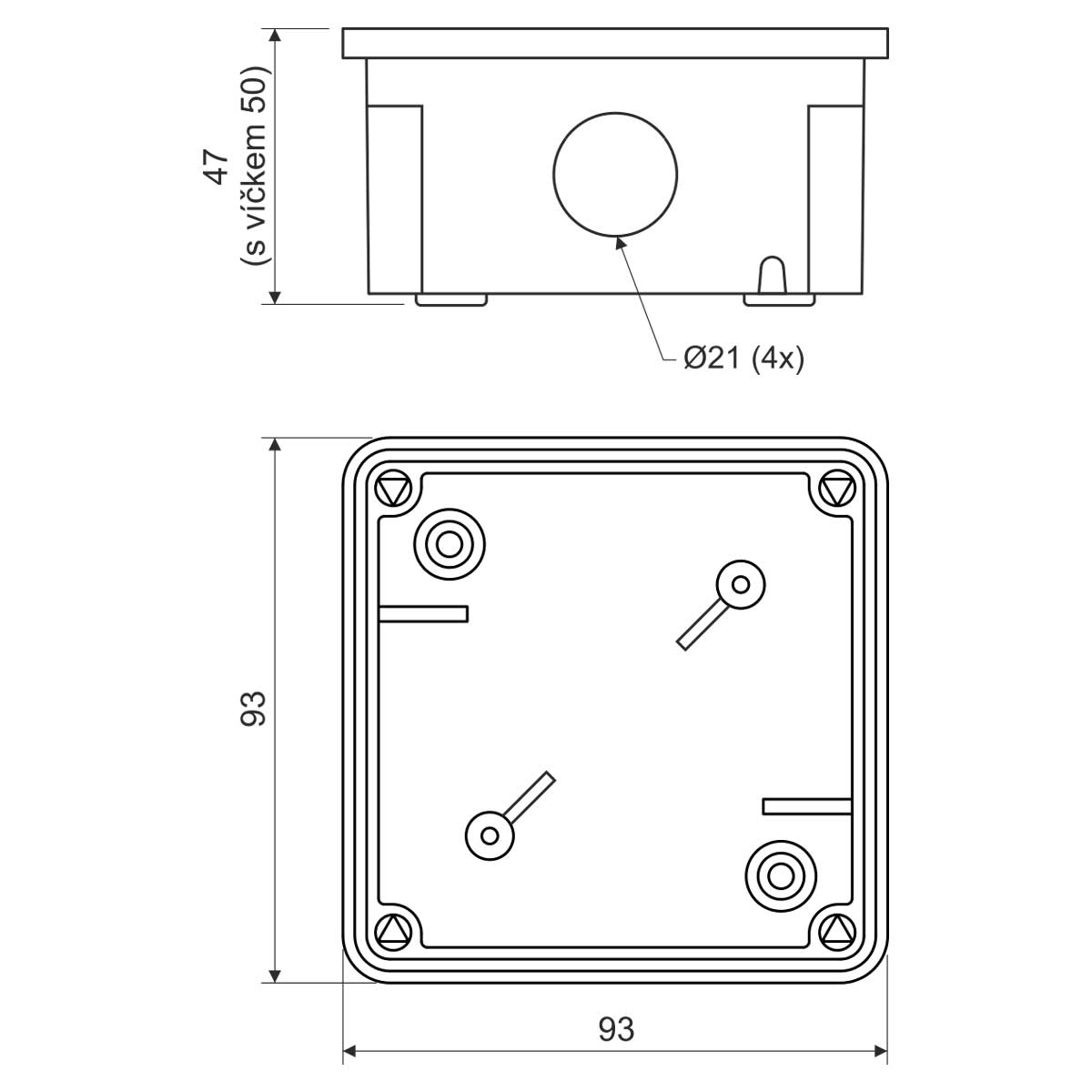

| Lătime | 93 mm |
| Înăltime | 93 mm |
| Adâncime | 50 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - D |
| Extinderea reacției la foc a materialelor de bază Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1 - F | |
| Tipuri de protecție | IP 54 |
| Standarde | ČSN EN 60 670-1 |

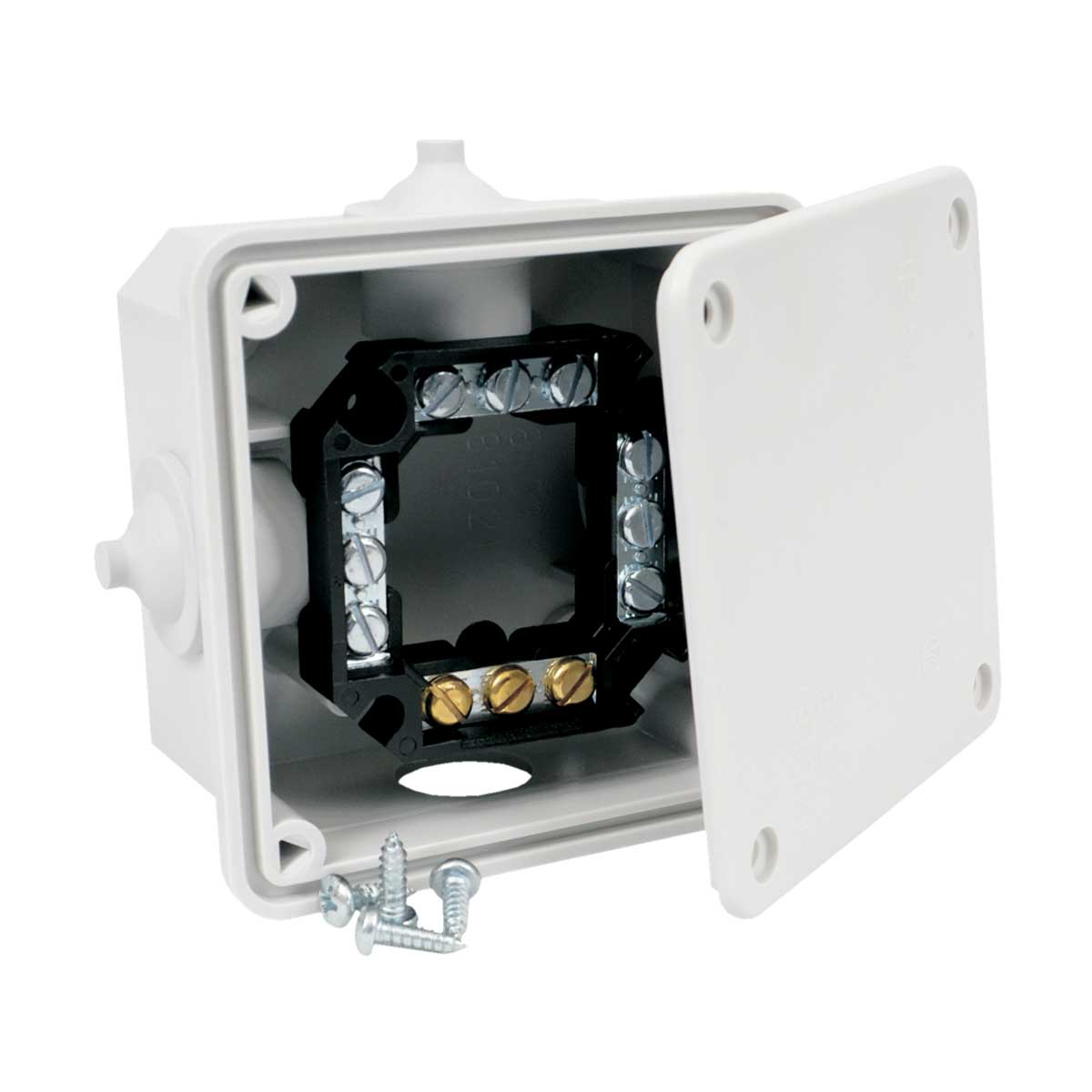

| Descriere impachetare the grommets, terminal plates, screws for mounting lid and terminal plates inserted in the box, each box is packed in a shrink foil and labeled | |
For installation in environment with increased humidity, dust, chemical and corrosion resistance in environments with increased risk of mechanical damage. Universal grommets for cables and pipes, grommets can be ordered separately. To install on materials with fire classes E or F, use thermally insulating pad.
