Imagine ilustrativă
To download 3D models, please login or create an account and request access.
KU6871L1_EN
| Cod Ean | 8595057688414 |
| Cod vamal | 39259080 |
| Greutate | 0,0340 kg/pcs |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |

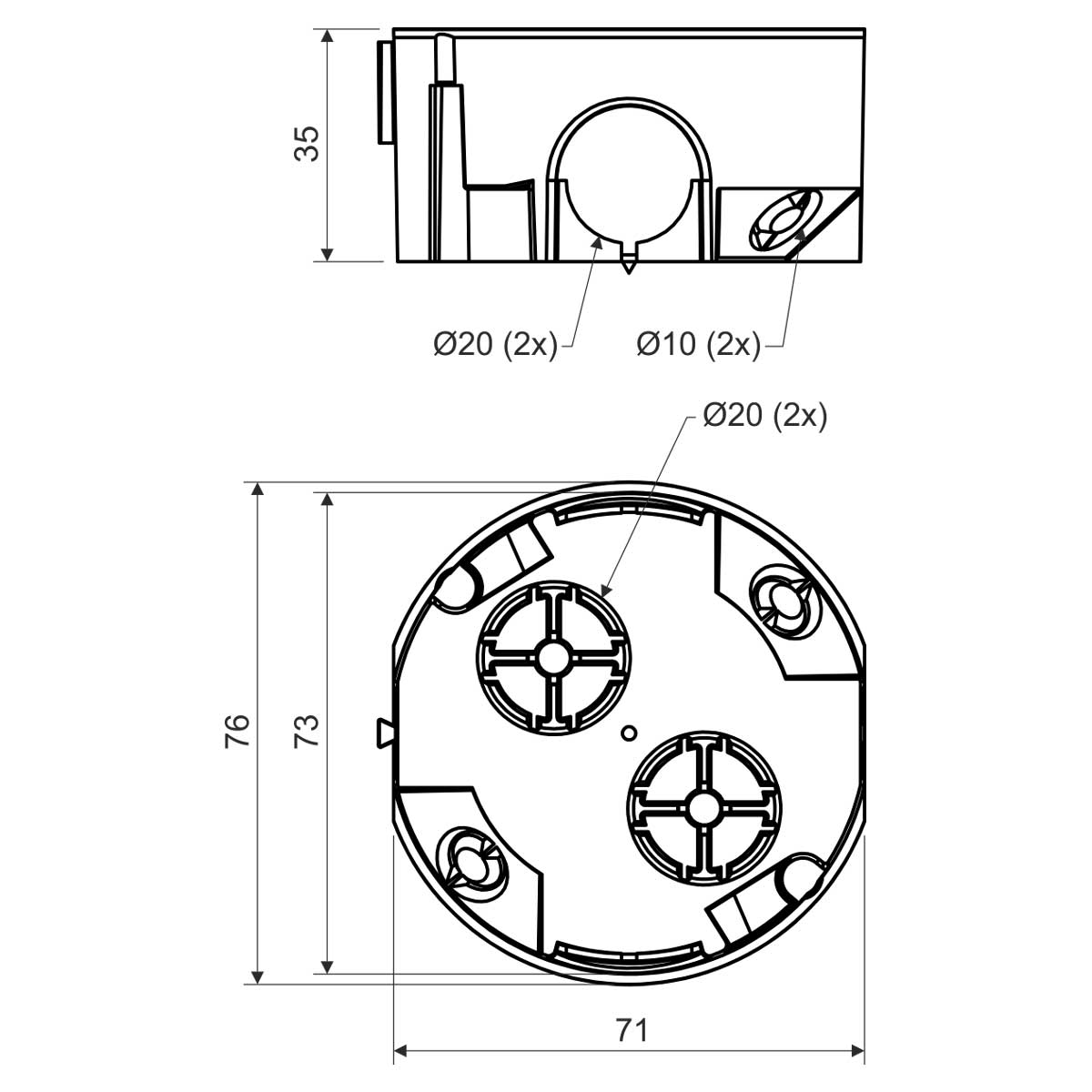

| În medie | 73 mm |
| Adâncime | 35 mm |
| Diametrul orificiului găurit (forat) | 73 mm |
| Recomandările producătorului For all range of products in hollow walls, we recommend using the milling sets supplied by us. | |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Distanța dintre 2 doze | 71 mm |
| Permite instalarea aparatajului dublu | yes |
| Tipuri de protecție | IP 30 |
| Standarde | ČSN EN 60 670-1 |
| Descriere impachetare boxes fitted with screws for mounting the box in plasterboard, the instrument screws are packed separately | |

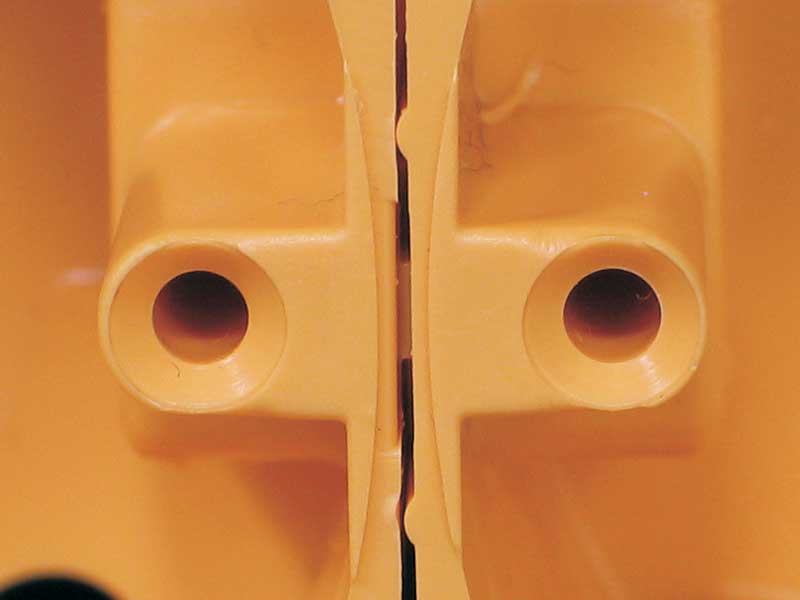

Connection in a continuous series with axial distance of 71 mm. Possibility to connect 3 boxes in a series. Integrated tip to mark the centre of drilling. Jointed boxes can be interconnected using single insulated wires. Connectable with the box KPR 68/71L. Mounting screws are fitted with a triple thread for quick installation. The IP30 protection a box fitted with an appropriate lid or a device with a higher or equal IP30 protection. When mounting, it is not necessary to countersink the plasterboard edge.
