KUH1L_EN
| Cod Ean | 8595057687950 |
| Cod vamal | 39259080 |
| Greutate | 0,1310 kg/pcs |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |

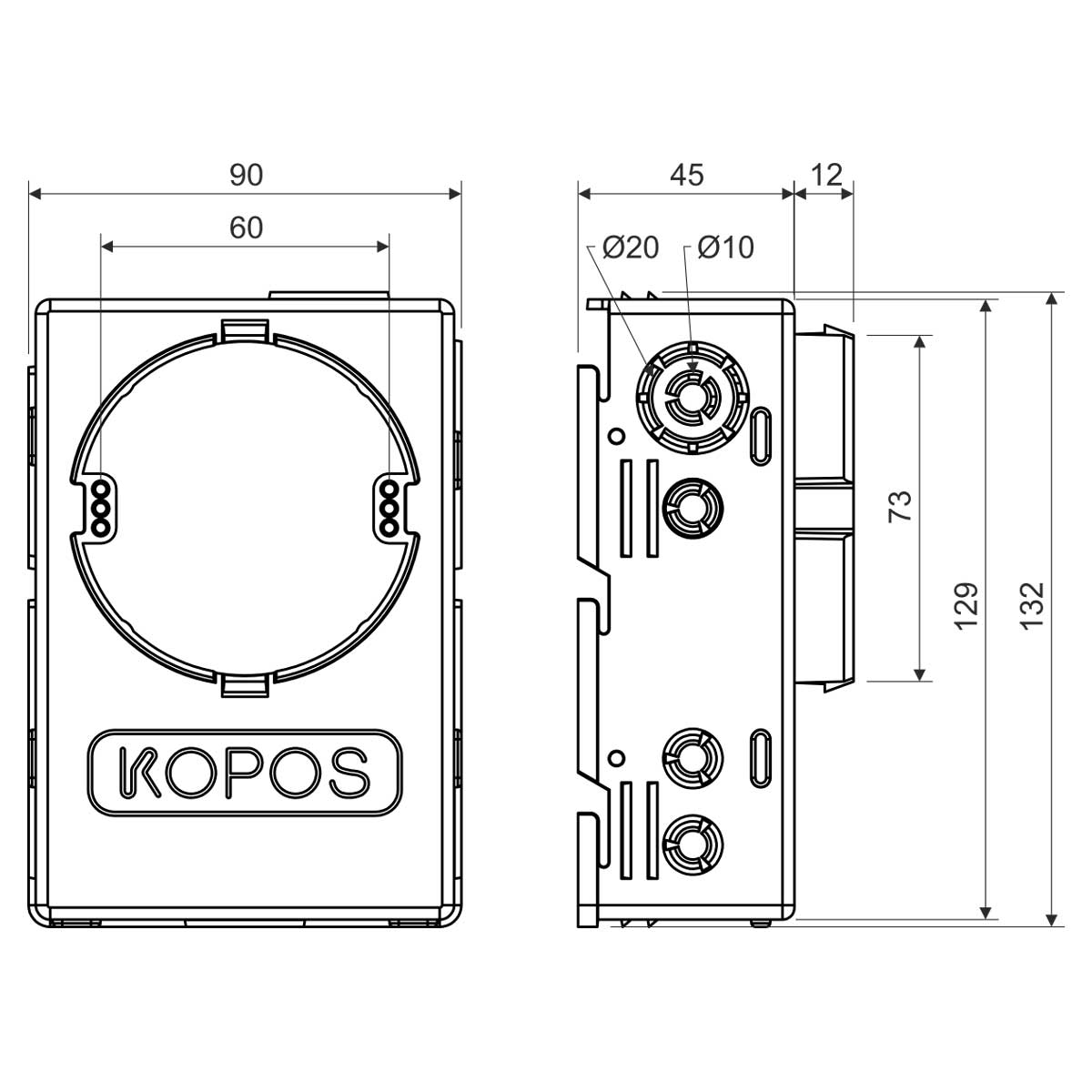

| În medie | 73 mm |
| Lătime | 90 mm |
| Înăltime | 132 mm |
| Adâncime | 57 mm |
| Diametrul orificiului găurit (forat) | 73 mm |
| Recomandările producătorului For all range of products in hollow walls, we recommend using the milling sets supplied by us. | |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Permite instalarea aparatajului dublu | yes |
| Tipuri de protecție | IP 30 |
| Standarde | ČSN EN 60 670-1 |
| Descriere impachetare in each box are inserted installation and instrument screws, each box individually wrapped in a shrink wrap and marked with a label | |
Installation on the reverse side of double wall with a thickness of 12.5 mm using the included screws. More space in the box allows the insertion of active elements under the device. Possibility to insert the terminal S-66 directly under the device. Suitable for modern electrical system with higher space requirements. The IP30 protection a box fitted with an appropriate lid or a device with a higher or equal IP30 protection.
