flexible pipes APAFS for mechanical protecting cables (EN)

Atasamente si certificari

Imagine ilustrativă

APAFS21 F50 - ohebná trubka k mechanické ochraně kabelů (EN)

Datový list
APAFS_APACS_EN

Certifikace
Declaration RoHS
Declaration REACH

Cod Ean	8595057662179
Cod vamal	39173100
Greutate	0,0633 kg/m
Culoare	black
Material	PA
Material fără halogeni	yes
Stabil la UV/Material stabil la UV	yes
Cu suto-stingere	30 s
Rezistența la temperatură	stable mounting: -40 to + 120 ° C; flexible mounting: -5 to +120 ° C
Rezistență mecanică	320 N/5cm
Diametru exterior	21,2 mm
Diametru interior (min.)	16,5 mm
Toleranță	length ± 1 %
Recomandările producătorului The producer recommends the installation of plastic pipes at temperatures above 0 ° C.
Notă	electrial properties - undeclared
Clasa de reacţie la foc a materialului de fond	A1 - F
Cod se sortareKód triedenia	242440
Standarde	ČSN EN 61386-1 ed.2

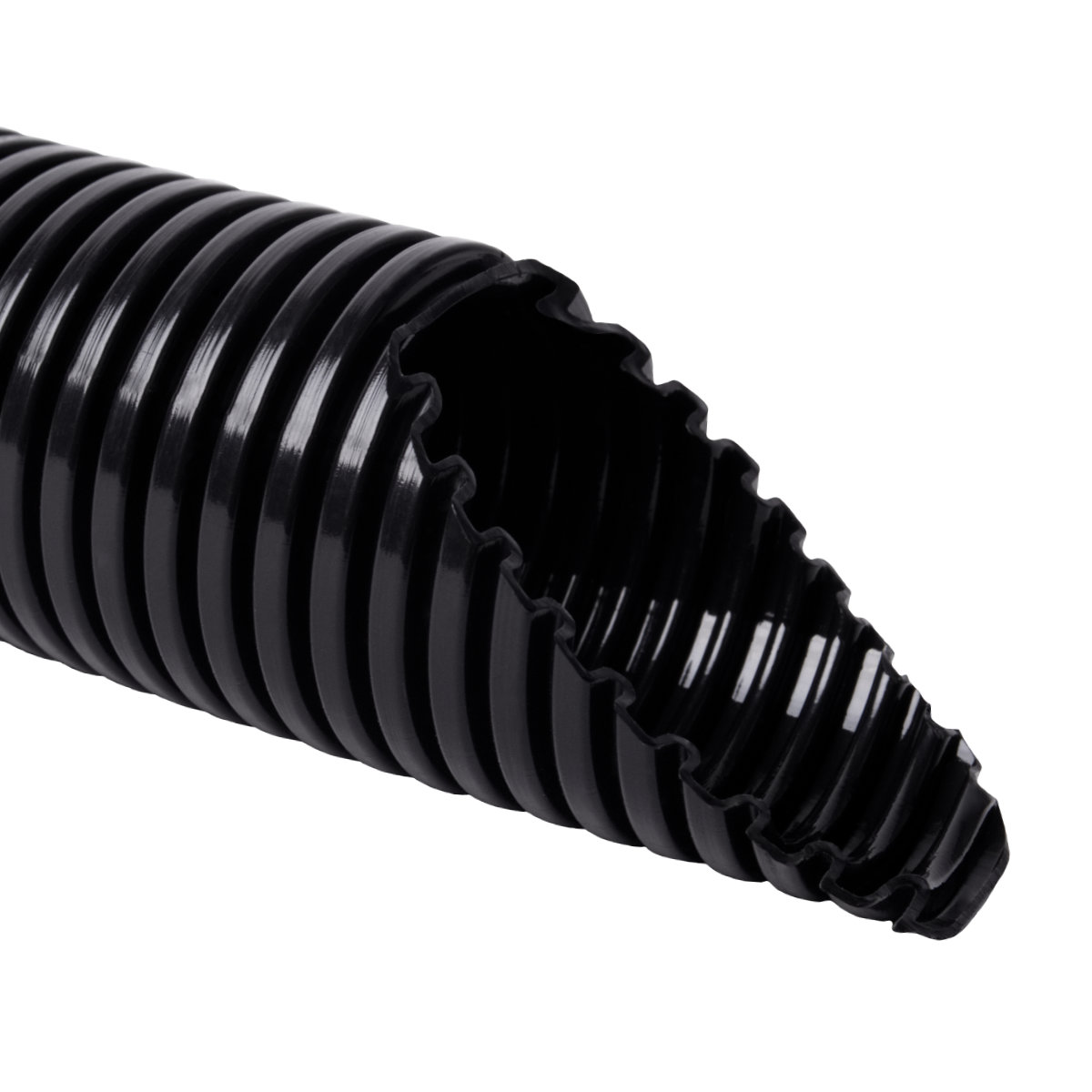

Flexible UV stable halogenless self-extinguishing pipe made from PA 6. Halogen-free pipes are used on premises where the safety of people and property is primary, e.g.: public buildings, hospitals, schools, theatres, airport halls, shopping centres, etc.
