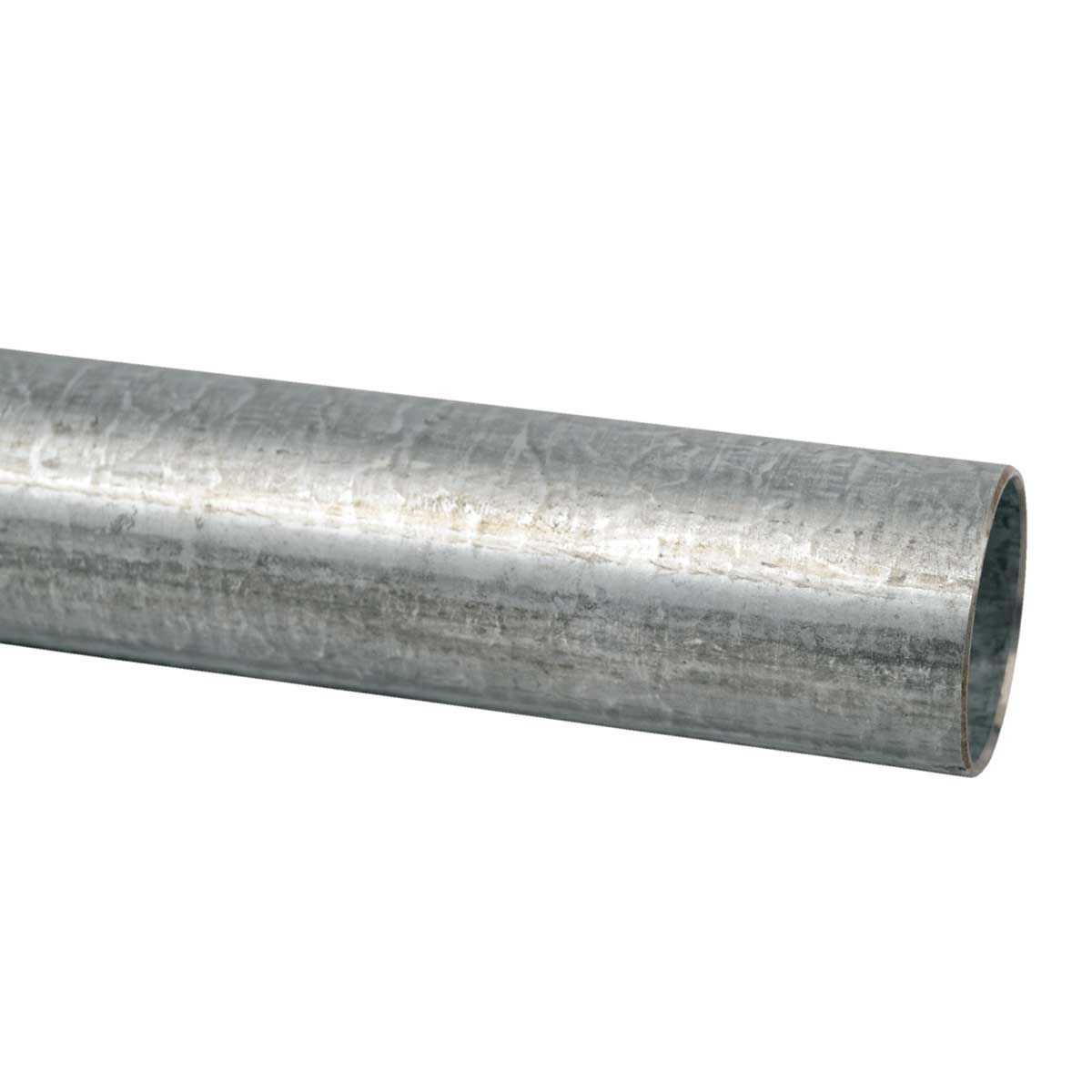

Imagine ilustrativă
trubka_ocel_CSN_EN
| Cod Ean | 8595057607583 |
| Cod vamal | 73063077 |
| Greutate | 0,6000 kg/m |
| Material | steel |
| Acoperire de suprafată Unvarnished: without surface finsh, without corrosion resistant, mainly for structural purposes | |
| Rezistența la temperatură | -60 - 250 °C |
| Rezistență mecanică | 1250 N/5cm |
| Protectie mecanică | IK10 |
| Lungime | 3 m |
| Diametru exterior | 22,5 mm |
| Diametru interior (min.) | 20,3 mm |
| Cod se sortareKód triedenia | 44561 |
| Standarde | ČSN EN 61386-1 ed.2 |
The pipes are suitable for mechanical protection of conductors and cables. While using pipes along with bushing 4813/P - 4842/P and 4913 - 4942 is scope of application only -5 - +60 °C.
