| Cod Ean | 8595568923844 |
| Cod vamal | 73269098 |
| Greutate | 0,1451 kg/pcs |
| Material | steel |
| Acoperire de suprafată | ZNCR |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Ansamblu Please remove mounting posts inside the KUZ box prior to the installation. | |

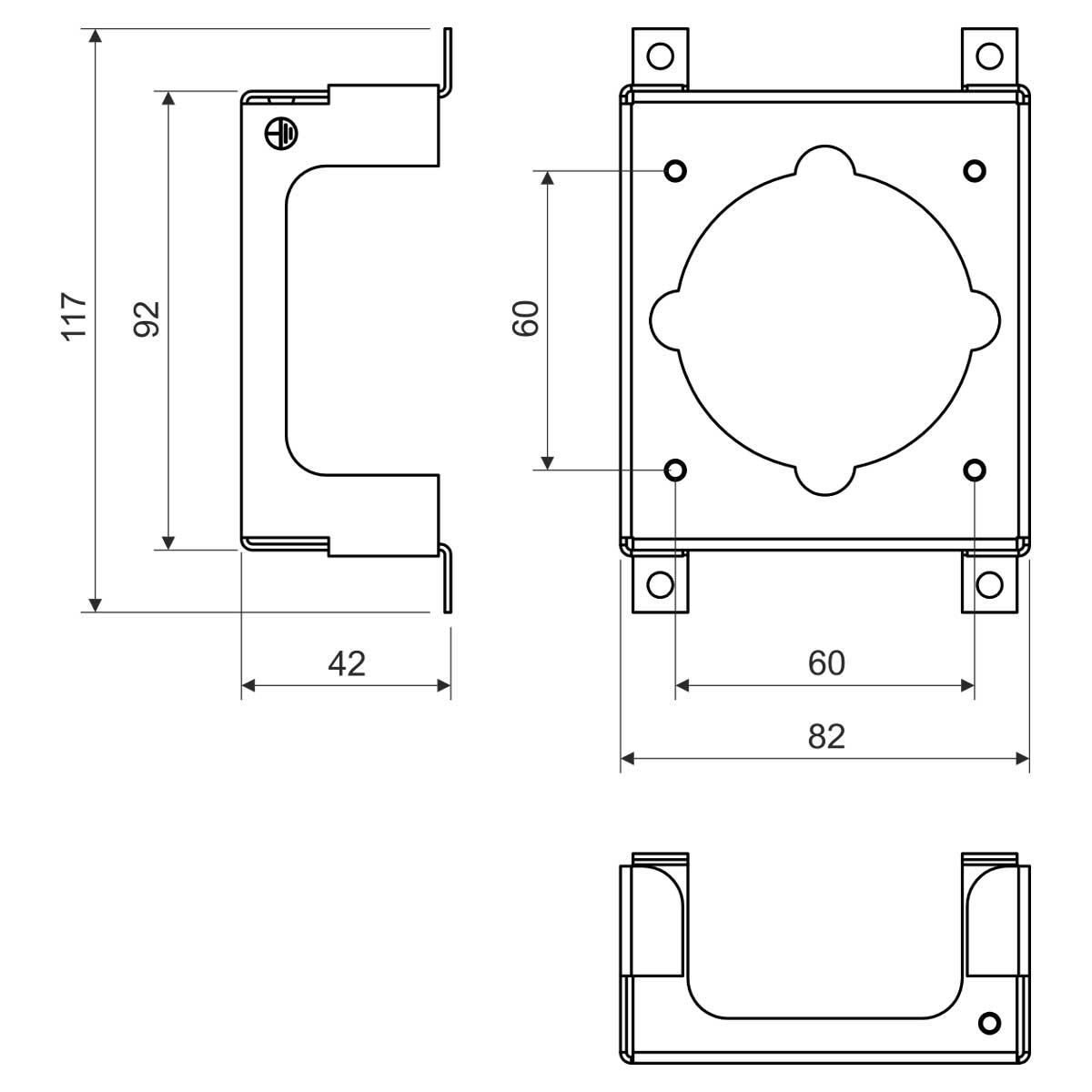

| Lătime | 82 mm |
| Înăltime | 92 mm |
| Adâncime | 42 mm |
| Descriere impachetare | packed per 1 piece in foil |

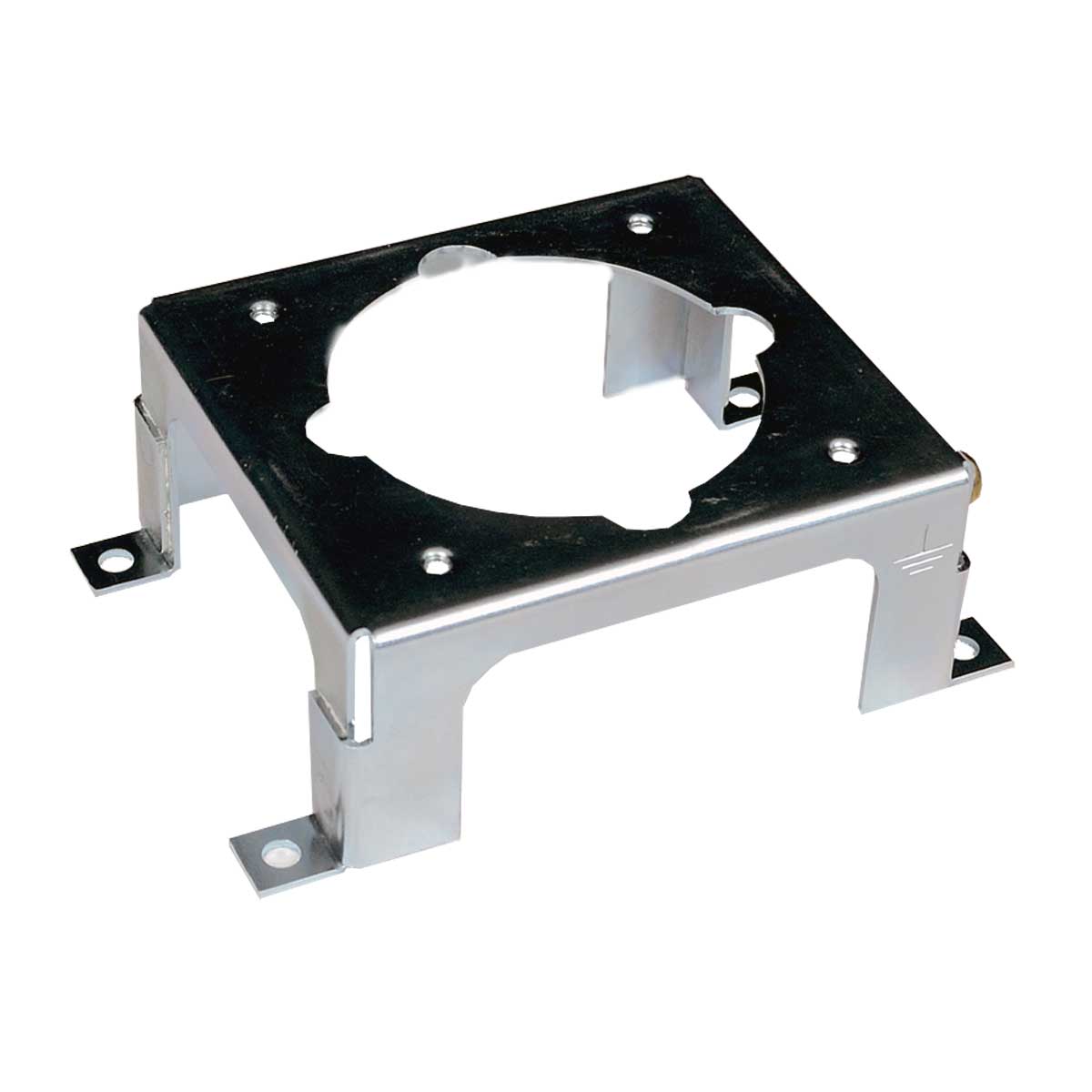

The instrument holder for the assembly of built-in 400 V (16 A) sockets. Installation under the assembly plate supplied with the KUZ-VO and KUZ-VOI sets. Contains a screw M4X6 and a lock washer for grounding. Spacing for socket mounting is 60 mm. Suitable instruments: SEZ IEN 1653, SEZ IEN 1643. With set depth of box KUZ min. 105 mm - MENNEKES TYPE 1385, BALS TYPE 132001, ABB 416RU6.
