BSKH_EN
| Cod Ean | 8595568904249 |
| Cod vamal | 73269098 |
| Greutate | 1,4800 kg/pcs |
| Acoperire de suprafată | Hot Dip Galvanized |
| Rezistența la temperatură | -50 - 150 °C |
| Standarde | ČSN EN 61537 |
| Grosimea foii de tablă | 2 mm |
| Cantitatea de şuruburi pentru instalare | 16 |

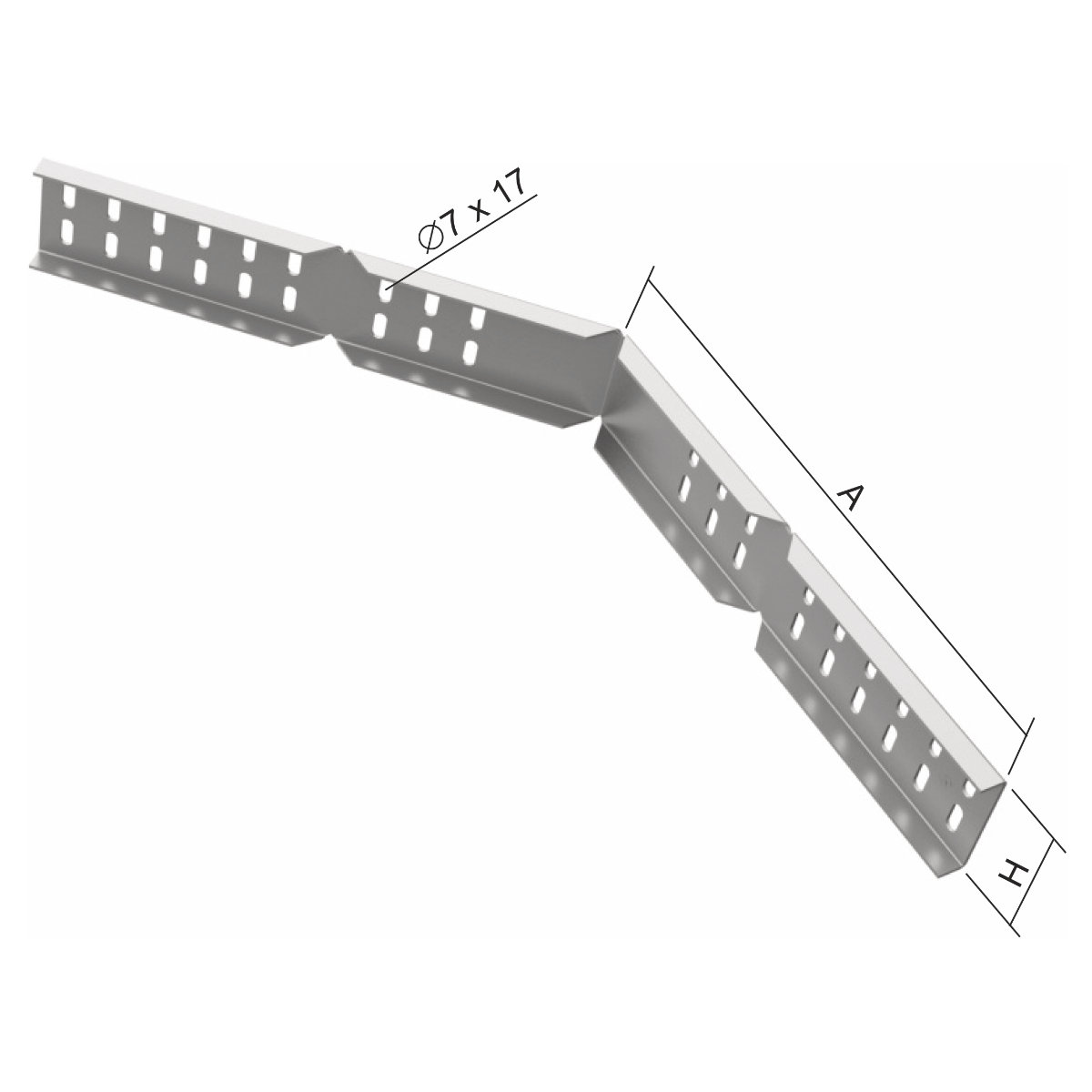

| Dimensiunea A | 315 mm |
| Dimensiunea H | 114 mm |

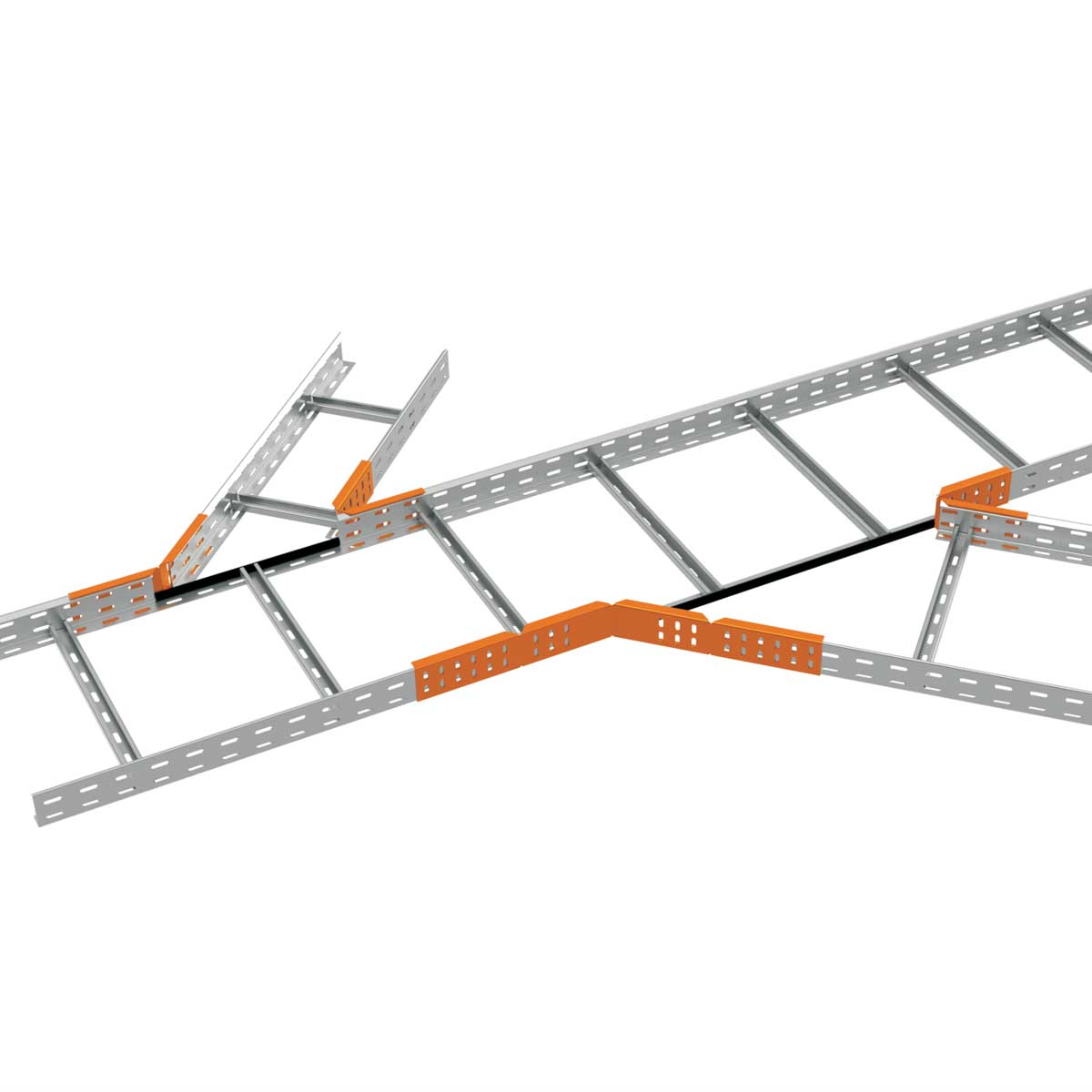

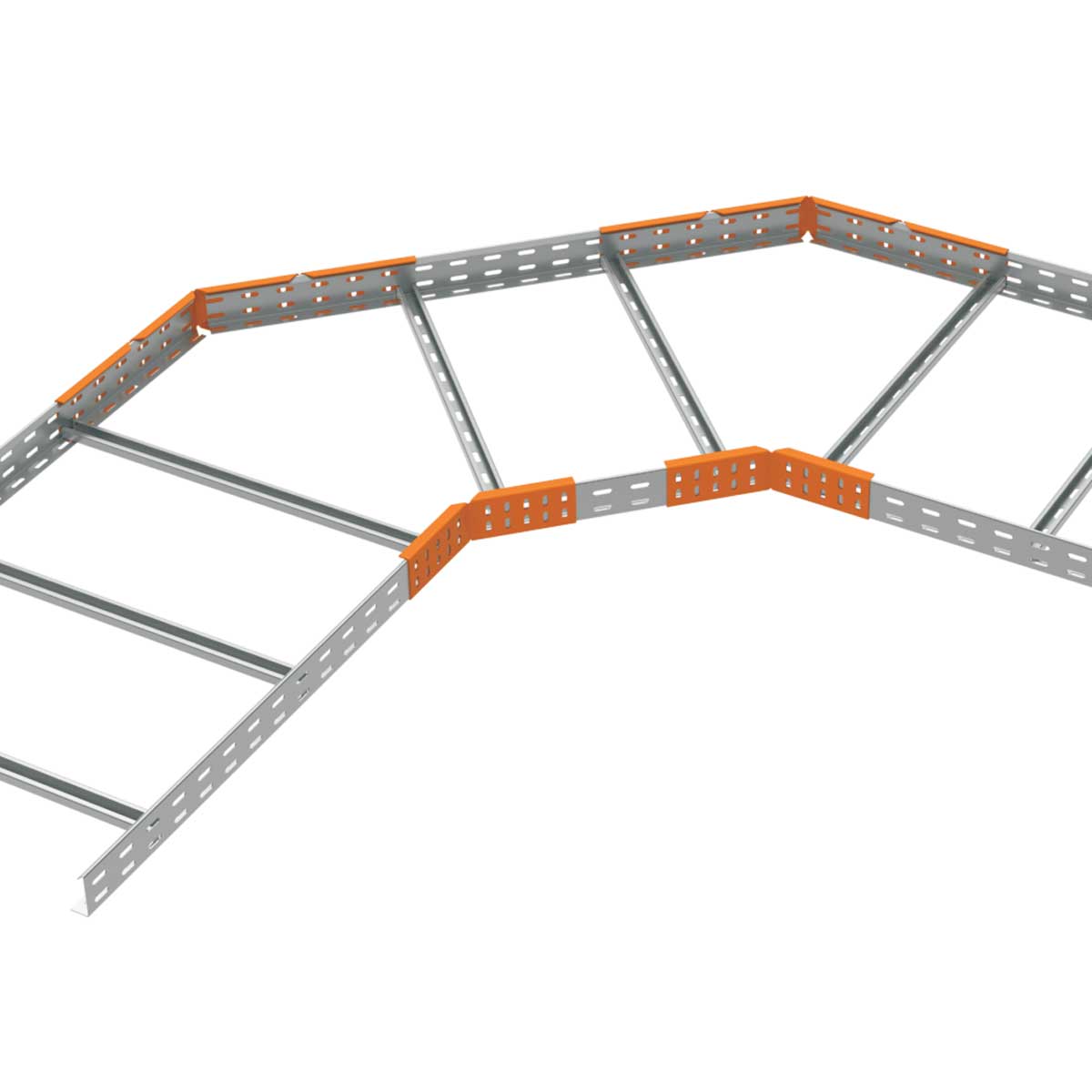

Used to create branches in cable ladder routes or as a substitute for cable ladder fittings or to create a change in a route at different angles and different bending radiuses. Connectors are a cost-effective and versatile way of creating branches in routes in a horizontal direction. Cut the side wall of the cable ladder to bend off c. 15 mm above the bottom – in the bottom perforation axis. It is necessary to use NCH. The fastening of the joint is performed with the bolts NSM 6X10.
