Imagine ilustrativă
KPOZ_PO_EN
| Cod Ean | 8595568919304 |
| Cod vamal | 73269098 |
| Greutate | 0,0120 kg/pcs |
| Material | steel |
| Acoperire de suprafată | Pre-Galvanized |
| Funcționalitate în foc | P90-R, E90, PS90 |
| Tip cu filet | M8 |
| Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Adâncime de ancorare | 13 mm |
| Grosimea maximă a materialului de fixare | 30 mm |
| Diametrul burghiului | 10 mm |
| Lungimea totală a ancorei | 30 mm |

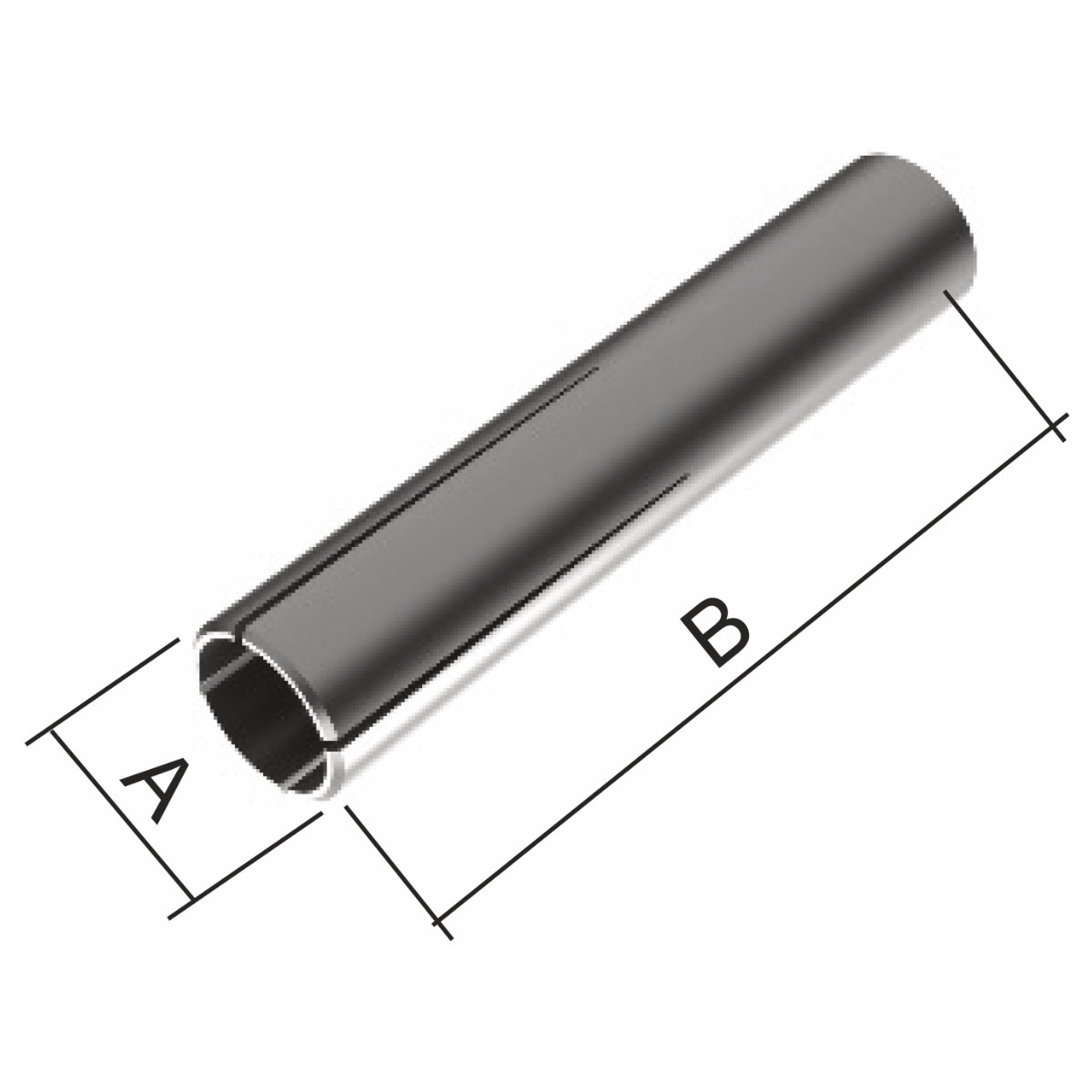

The knock in anchors serve for the direct attachment of the threaded rods. The loading capacity of the anchors depends on the quality of the base material (concrete, solid brickwork).
Note for system with maintained functionality in fire:
The knock in anchors KPOZ serve for the direct attachment of the threaded rods.
You find more information in the catalogue Systems with maintained functionality in fire.
