LTS_EN
| Cod Ean | 8595057630840 |
| Cod vamal | 83024190 |
| Greutate | 0,4900 kg/pcs |
| Acoperire de suprafată | Pre-Galvanized |
| Funcționalitate în foc | P90-R, E90, PS90 |
| Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Încarcatura maximă | 75 kg |

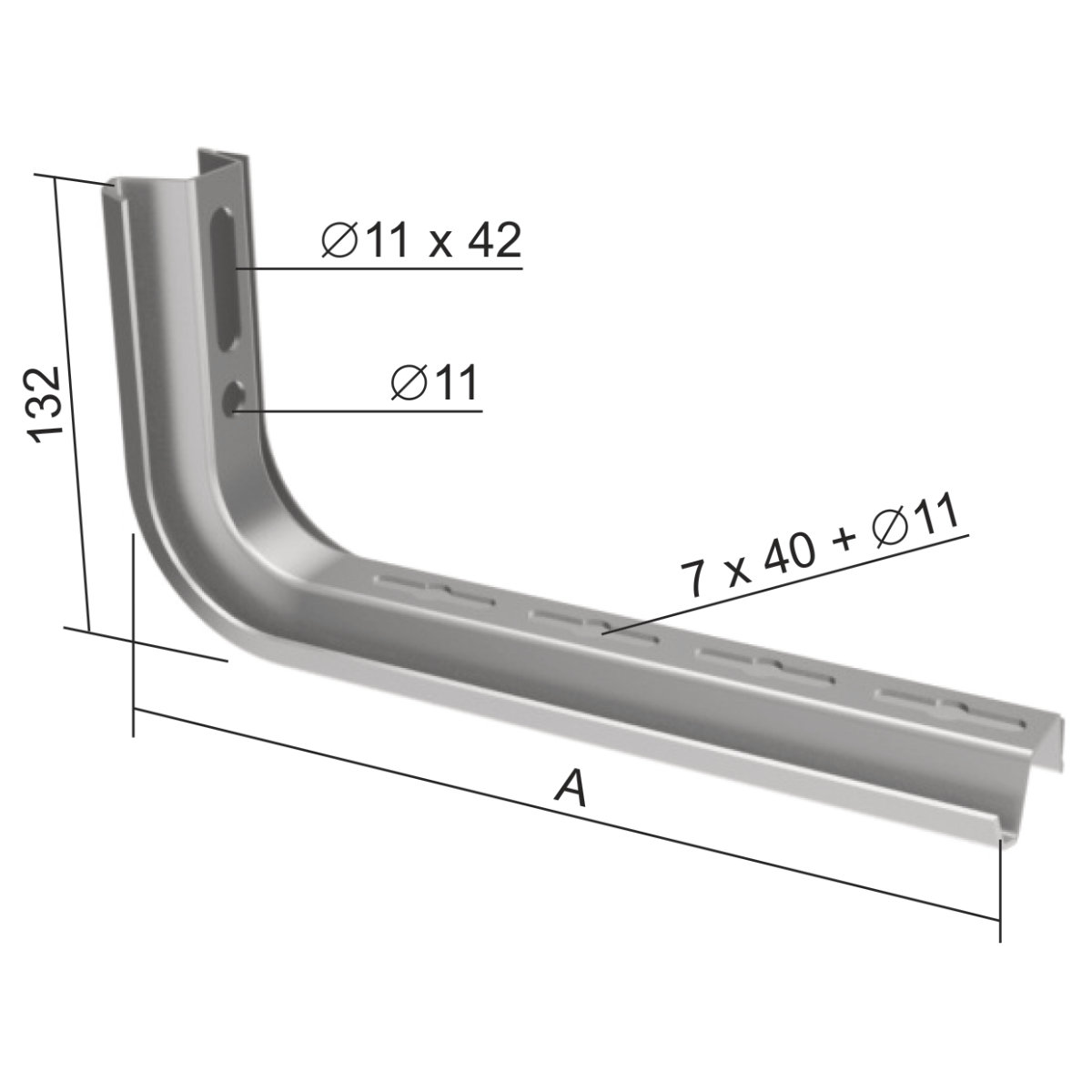

| Dimensiunea A | 363 mm |
| Pentru lățimea jgheabului de cabluri | 300 mm |
| Încărcătură maximă pentru rezistența la foc | 10 kg |

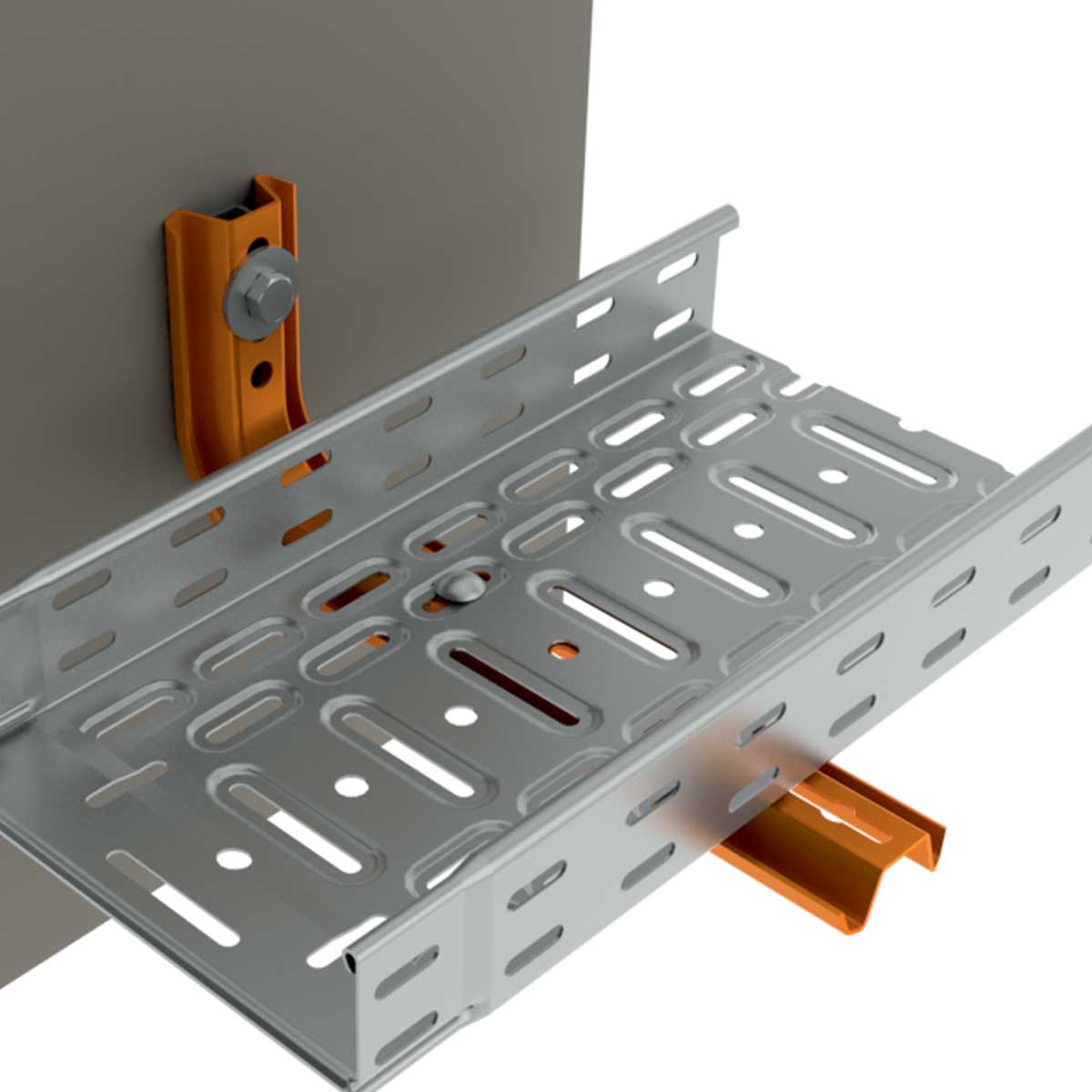

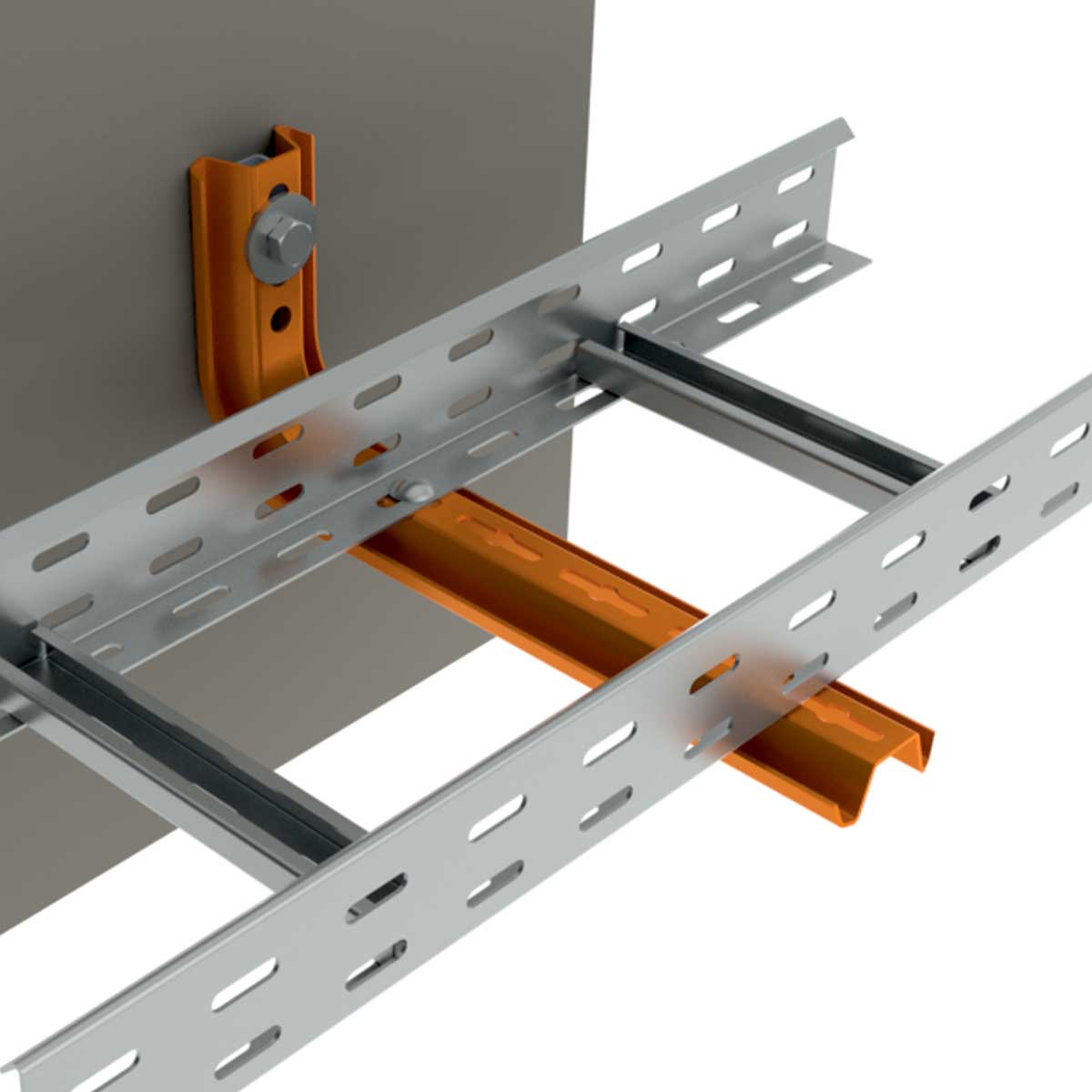

Holders are used on the wall or on the ceiling profile. To eliminate deformation during assembly the STS reinforcement is designated. The cable tray is fixed by using the bolts NSM 6X10. The installation is done by the anchors KPO 10X95 or KKZ 10, screws S 10X40 and washers PD 10.
Note for system with maintained functionality in fire:
To eliminate deformation during assembly the STS reinforcement
is designated.
You find more information in the catalogue Systems with maintained functionality in fire.
