Imagine ilustrativă
To download 3D models, please login or create an account and request access.
SU_EN
| Cod Ean | 8595057658585 |
| Cod vamal | 73089059 |
| Greutate | 0,2710 kg/pcs |
| Acoperire de suprafată | Hot Dip Galvanized |
| Rezistența la temperatură | -50 - 150 °C |
| Standarde | ČSN EN 61537 |
| Grosimea foii de tablă | 1 mm |
| Cantitatea de şuruburi pentru instalare | 4 |
| Dimensiunea H | 40 mm |
| Pentru inălțimea jgheabului de cabluri | 35 mm |

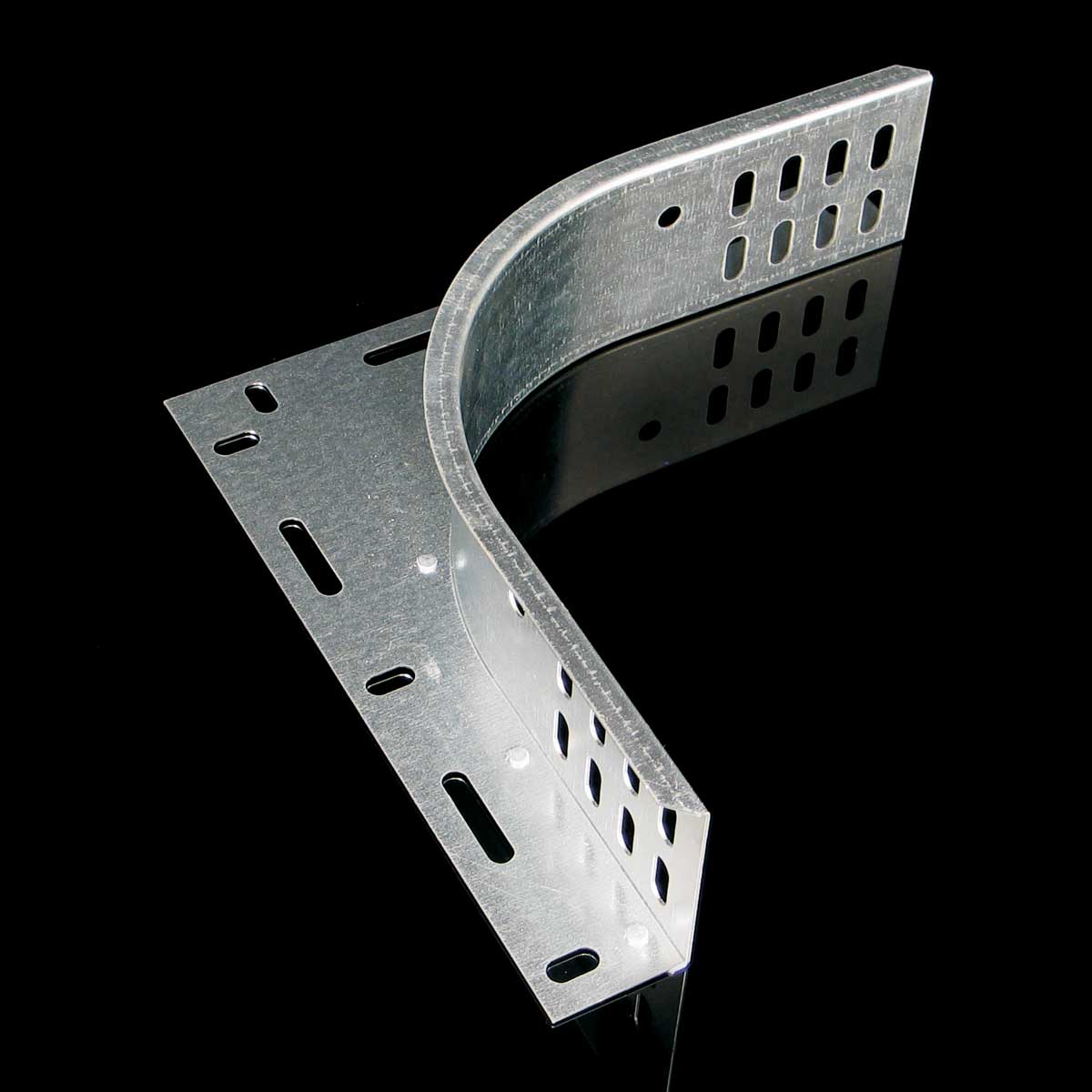

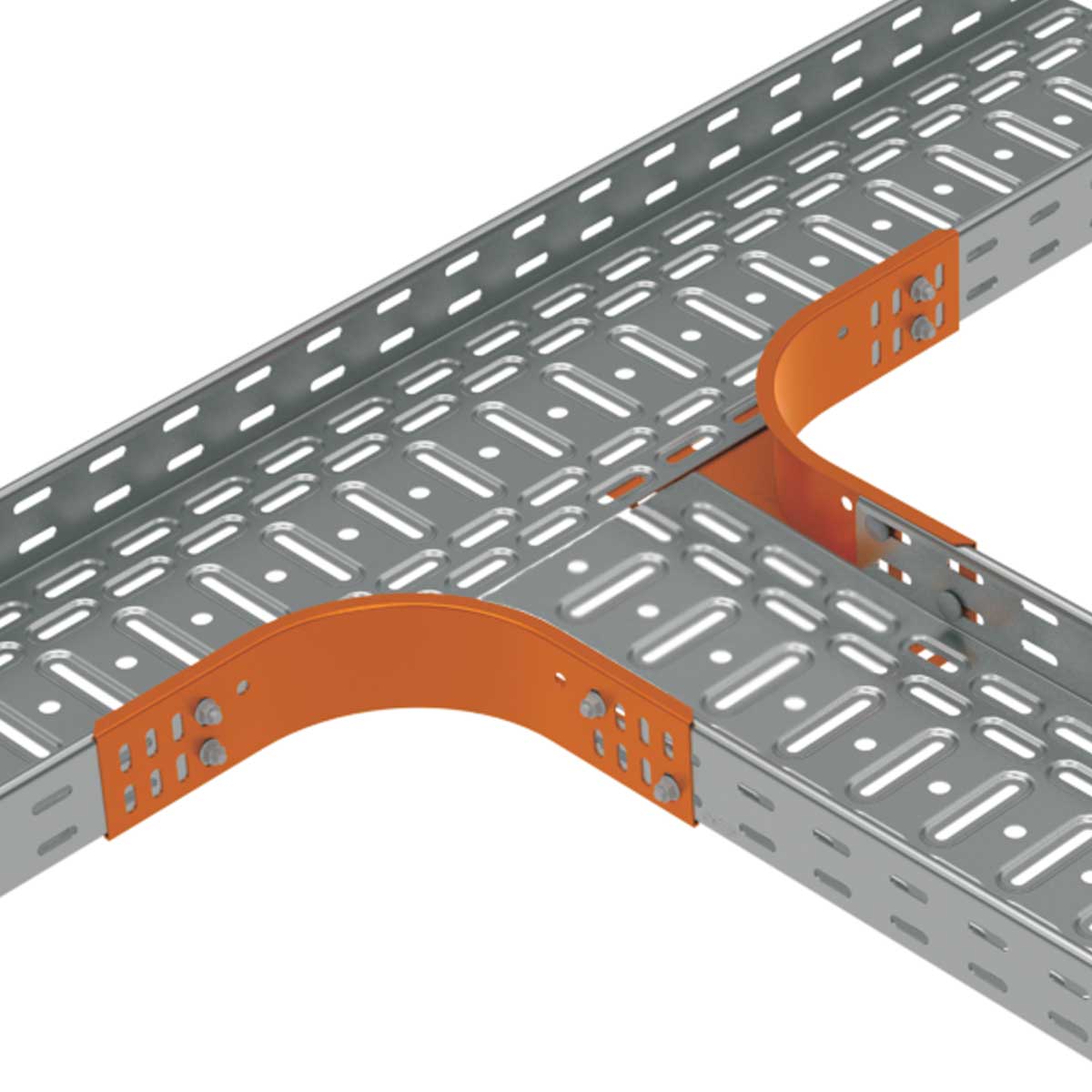

It is used for making an additional branching use an unequal T-piece or cross. Advantage of this using is availability to choose bending tray with any width. The reduction piece is delivered in singles, must be used 2 pieces for installation. The connection is performed using the bolts NSM 6X10. The cover of a horizontal VOH branch can be used to cover routes with a reduction piece.
