Imagine ilustrativă
US_EN
| Cod Ean | 8595057639577 |
| Cod vamal | 73269098 |
| Greutate | 0,2100 kg/pcs |
| Acoperire de suprafată | Electrolytic Galvanized |
| Utilizare | with ZT 12 |
| Funcționalitate în foc | P90-R, E90, PS90 |
| Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |

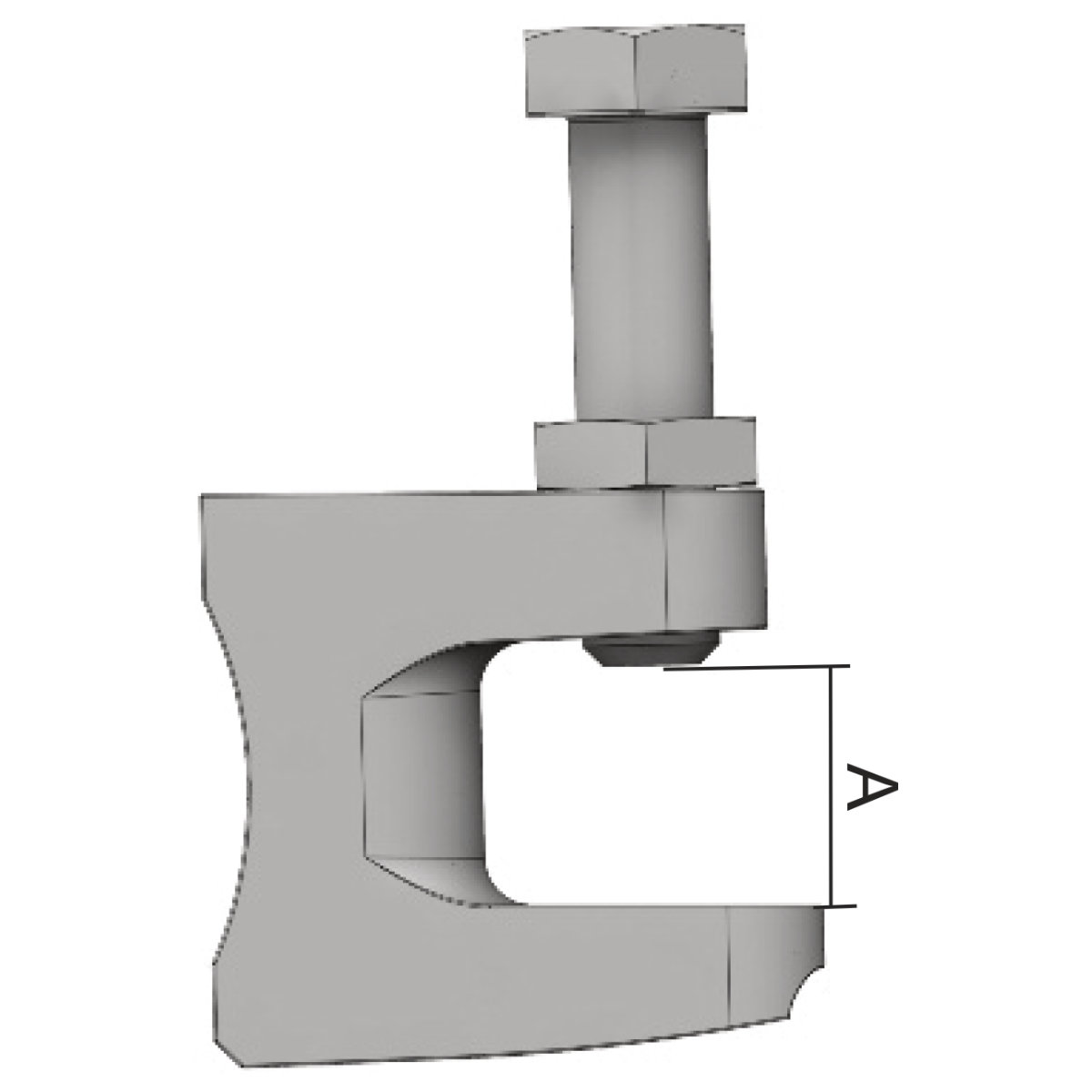

| Dimensiunea A | 026 mm |

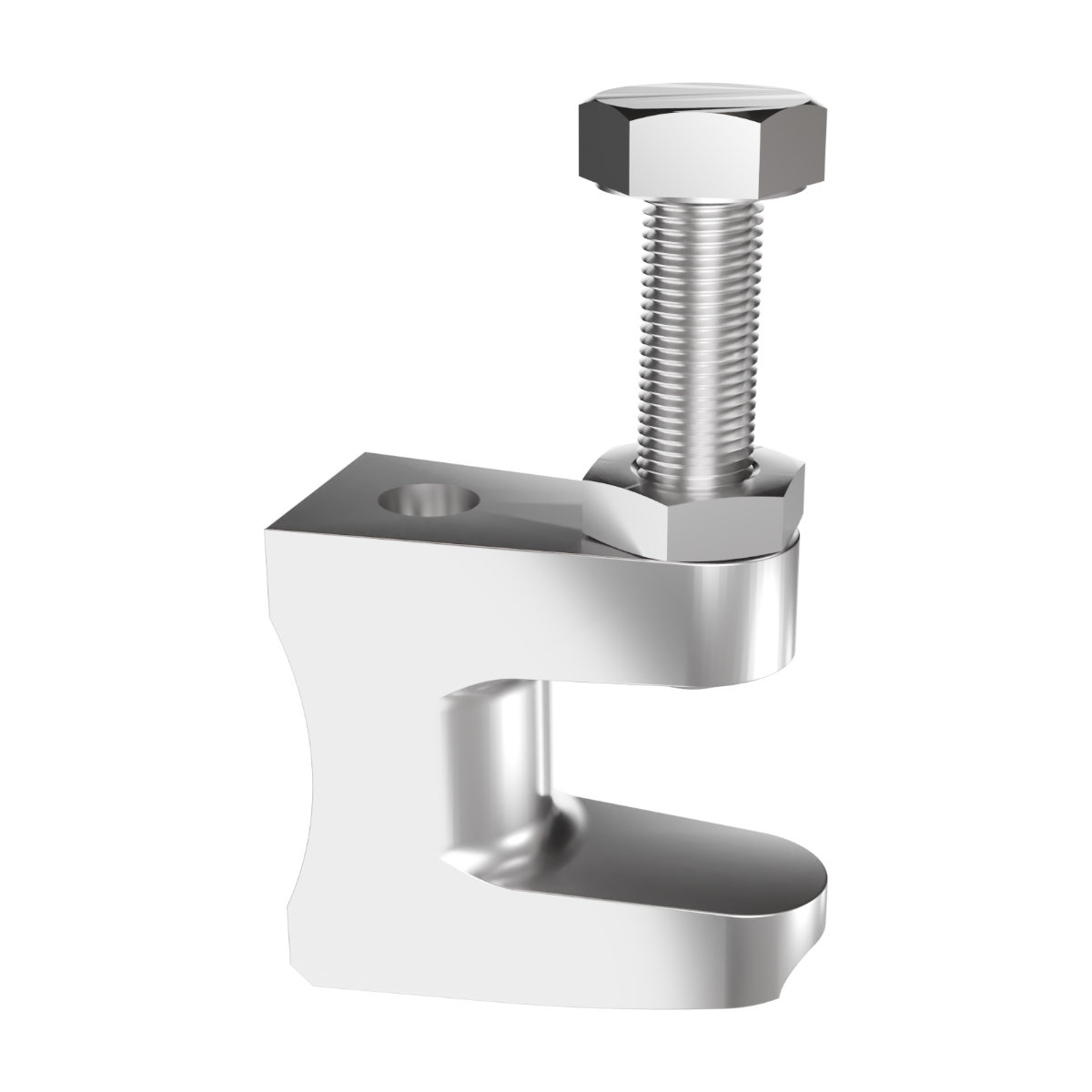

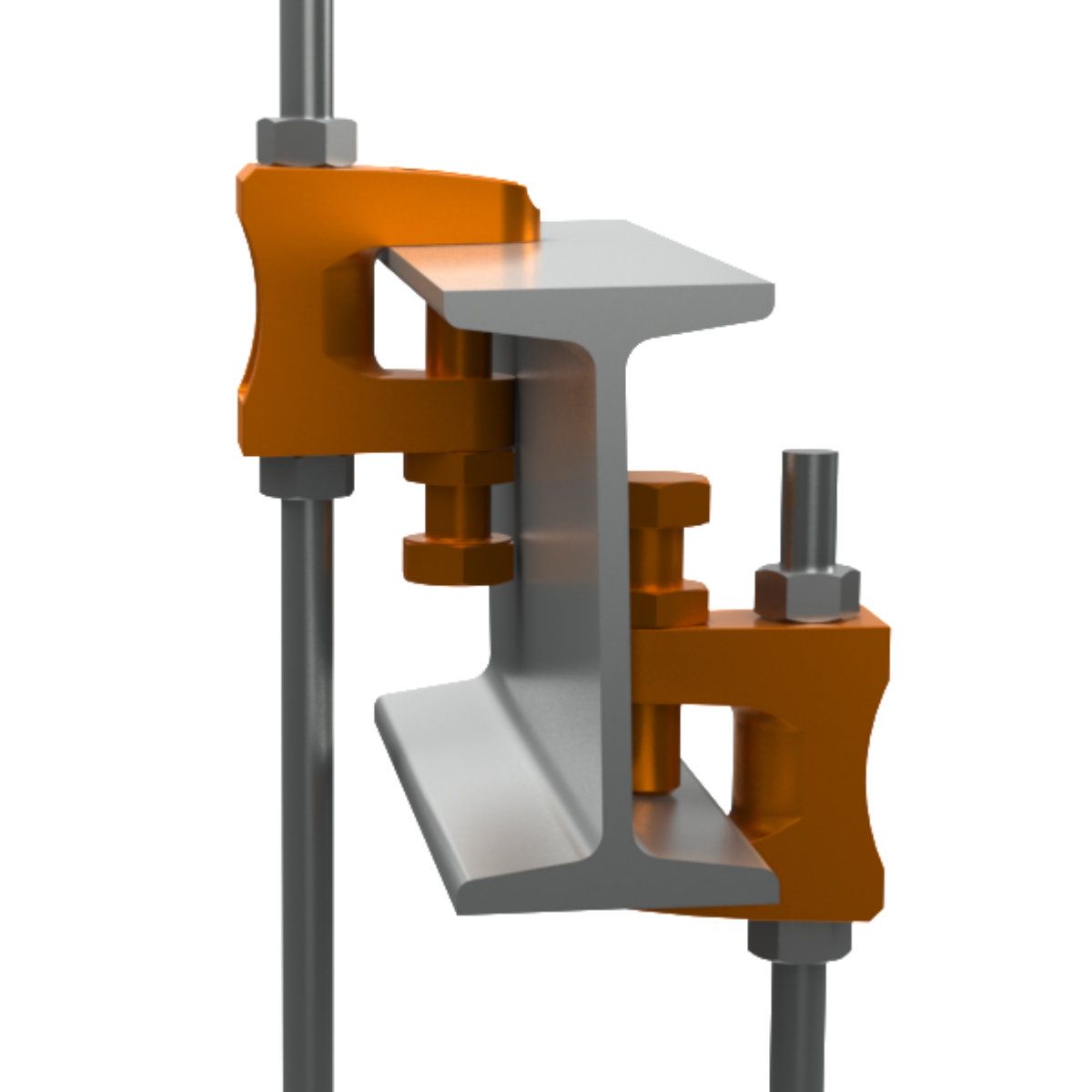

The fixation clamp is used for fixation of the threaded rod on I profile, a packing includes a fixation screw and a lock nut.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
