MDZ_XL300_EN
| Cod Ean | 8595568930811 |
| Cod vamal | 39259080 |
| Greutate | 0,9418 kg/pcs |
| Material | PP |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | 400 V |
| Curent nominal | 16 A |
| Rezistența la temperatură | -25 - 60 °C |
| Testat cu buclă incinsă | 850 °C |
| Ansamblu There is necessary to cut the carrier including inserted insulation before installation depending on layer thickness insulation. The carrier is fixed to the wall with twists and dowels depending on type of the wall surface. When installing a 400 V socket, it is recommended to fasten the carrier using chemical anchors. The finally installation of box or mounting plate should be done by 4 added screws. | |

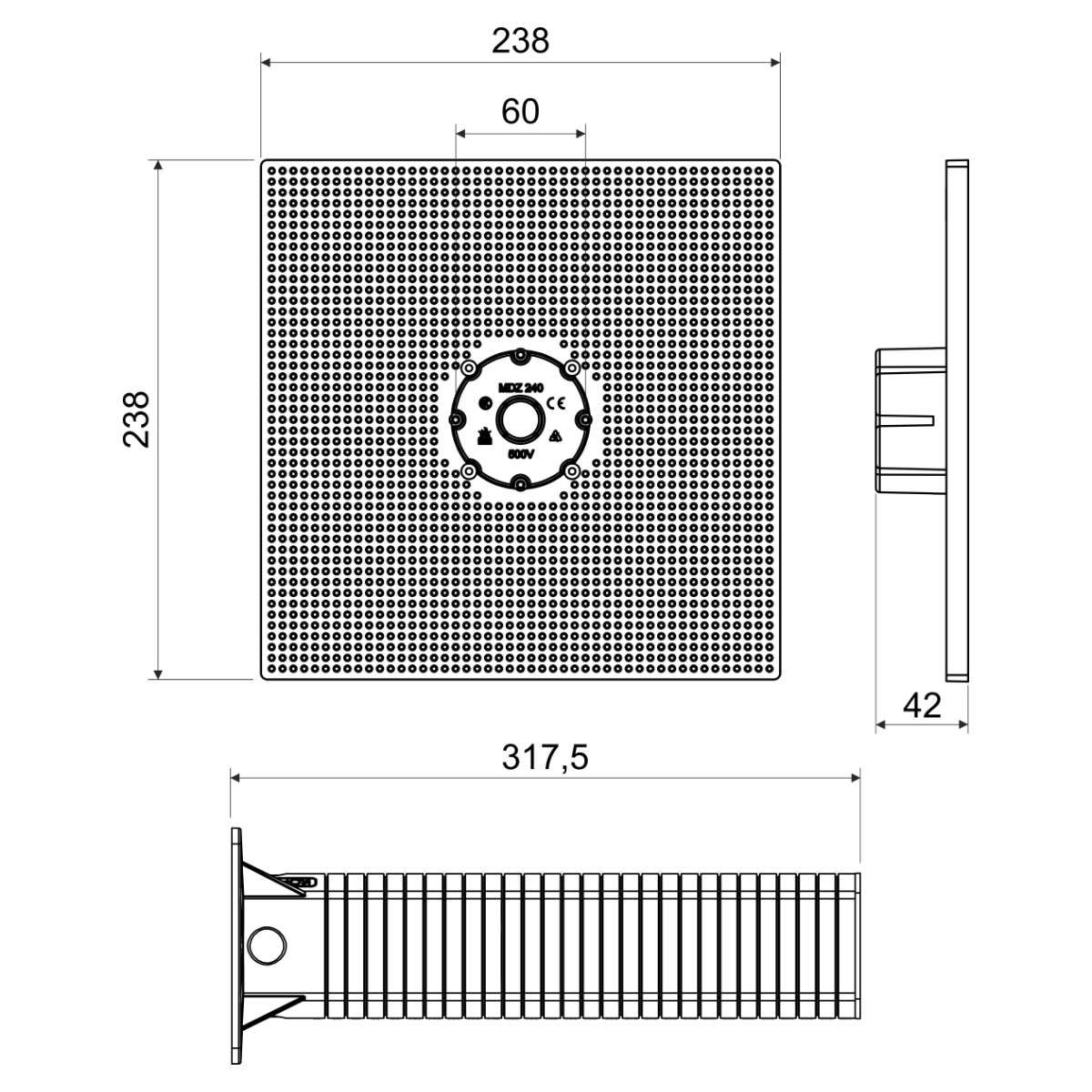

| Lătime | 238 mm |
| Înăltime | 238 mm |
| Adâncime | 317,5 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Descriere impachetare individual mounting desk are packed in separate cardboards | |
For the installation of electrical devices (outdoor lights, motion sensors, 400 V sockets, etc.) on thermally insulated buildings facades with a thickness from 50 to 300 mm. Eliminates thermal bridging. Load of 40 N at a distance of 180 mm from the wall. Possibility to create areas of any size when using multiple mounting plates. The package includes a support tube, mounting plate including a central support cover, internal and external insulation and quality wall plugs, screws and support cover for mounting. Screws with a diameter of 4 to 5 mm are suitable for the mounting desk. Robust construction. The mounting desk has a clamping area.
