SBKP_6050L_EN
| Cod Ean | 8595568938626 |
| Cod vamal | 39259080 |
| Greutate | 0,0437 kg/pcs |
| Culoare | orange + gray |
| Material | PP |
| Material fără halogeni | yes |
| Material fără plumb | yes |
| Voltaj nominal | 500 V |
| Rezistența la temperatură | -25 - 60 °C |
| Rezistență la temperatură pe termen scurt | 90 °C |
| Testat cu buclă incinsă | 650 °C |

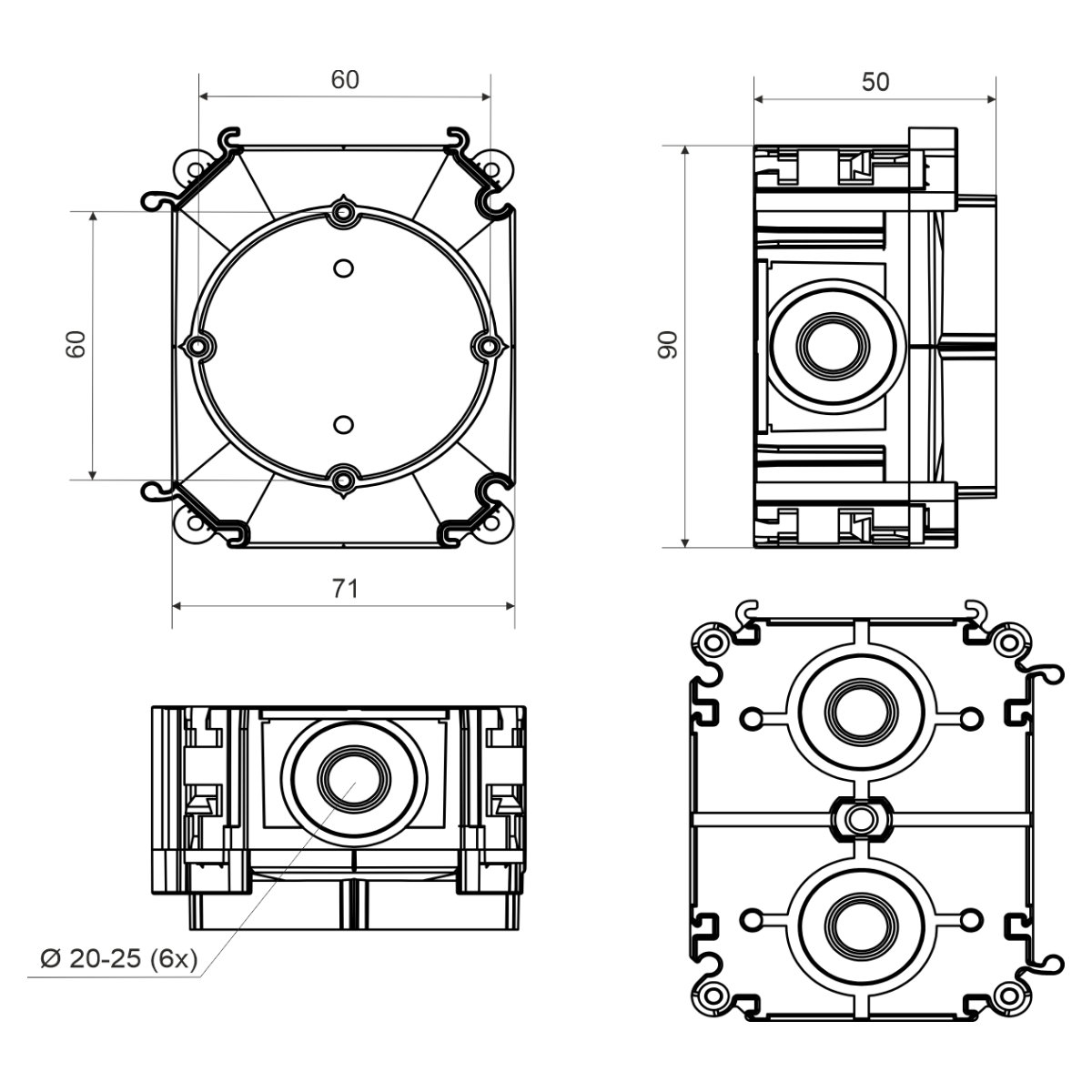

| În medie | 60 mm |
| Lătime | 71 mm |
| Înăltime | 90 mm |
| Adâncime | 50 mm |
| Clasa de reacţie la foc a materialului de fond | A1 |
| Distanța dintre 2 doze | 71/90 mm |
| Descriere impachetare | box with shrink wrap lid |

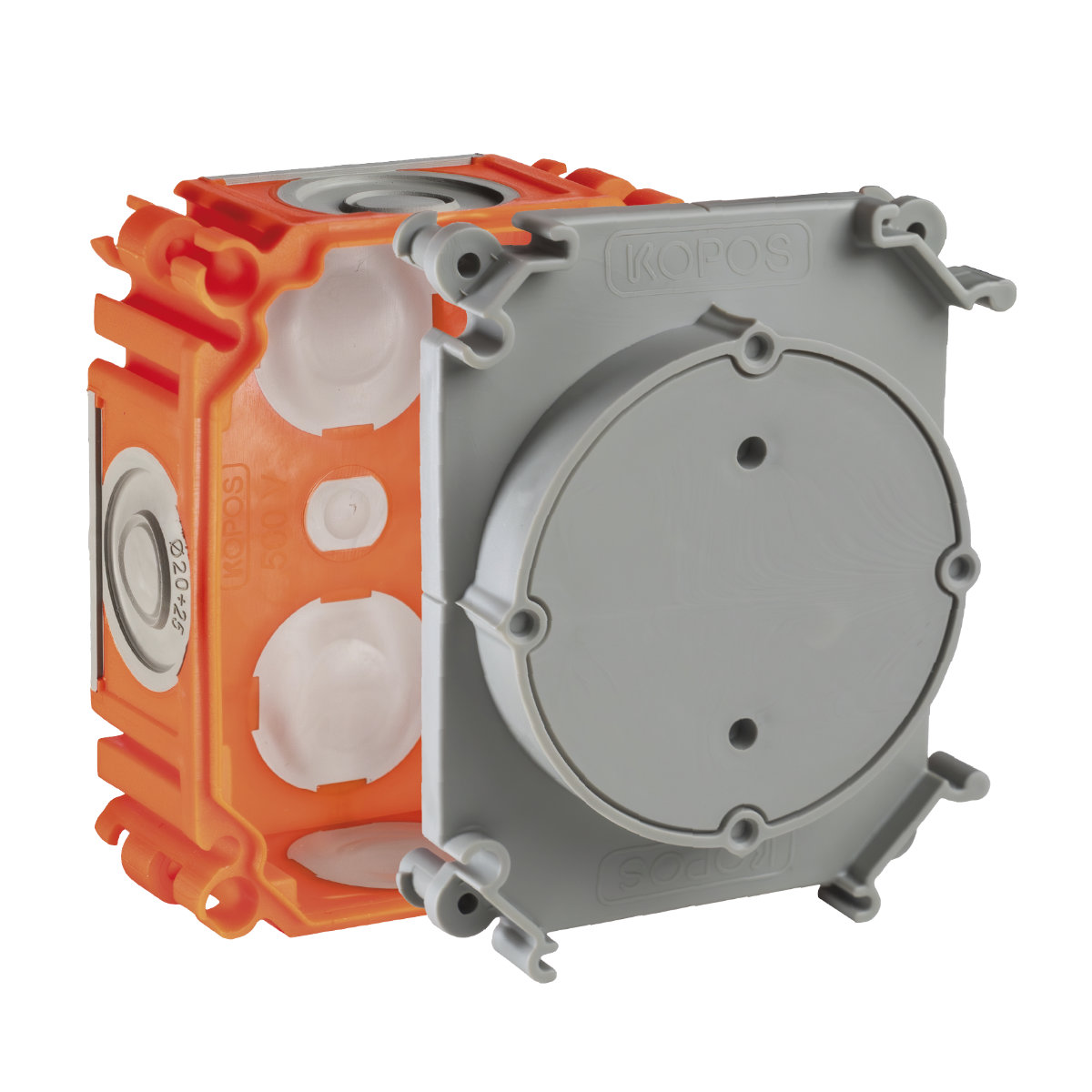

Instrument box for cast concrete - installation depth 50 mm. The lid of the box is adapted for nailing or screwing with screws to wooden formwork. The possibility to fix the lid of the box using glue from a hot melt gun. Sealed connection of the lid with the box. Pipe inlets fitted with a sealing membrane to prevent the concrete penetration. The possibility of fixed connection of boxes with a pitch of 71 mm and 90 mm. The possibility of fixing the box to the reinforcement (metal armature) ) using SB-MK 1 mounting wings (not included in the delivery). The possibility of using a box for double-sided assembly - mutual fixation using steel rods 6 mm KBP-8 (not included in the package).
