Cod Ean | 8595057624689 |
Cod vamal | 39259080 |
Greutate | 0,0823 kg/pcs |
Culoare | white |
Material | PVC |
Cu suto-stingere | 30 s |
Voltaj nominal | <= 400 V |
Curent nominal | <= 16 A |
Rezistența la temperatură | -5 - 60 °C |
Lătime | 96 mm |
Înăltime | 96 mm |
Adâncime | 38 mm |
Utilizare | for trunking LE 80 |
Clasa de reacţie la foc a materialului de fond | A1 - D |

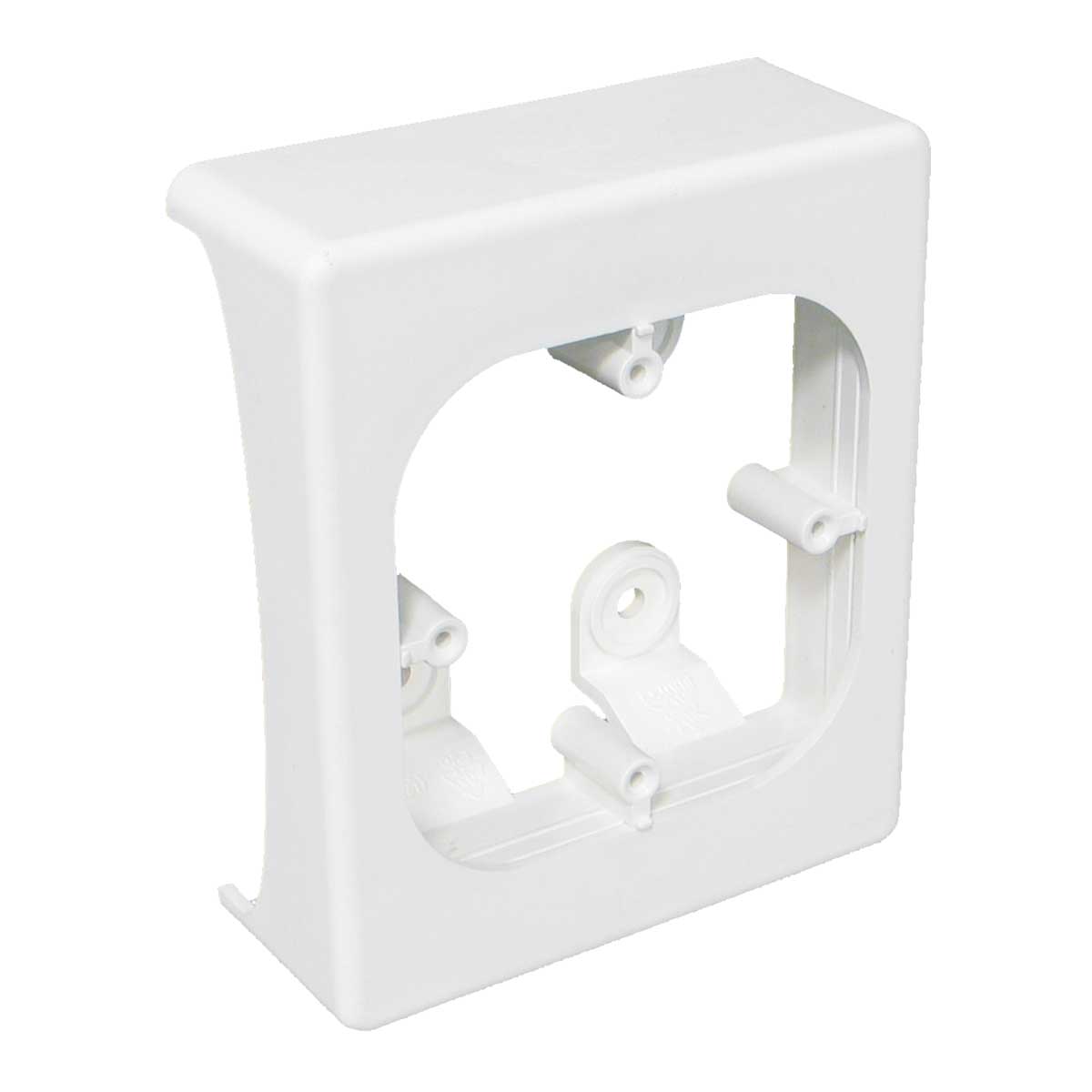

It consists of two parts - the carrier and cover. Suitable for the following instruments: Classic, Tango, Swing, Time, Element and others with a max. width of 89 mm.
