Conformity declaration
| Cod Ean | 8595057624672 |
| Cod vamal | 39259080 |
| Greutate | 0,0943 kg/pcs |
| Culoare | white |
| Material | PVC |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - 60 °C |
| Lătime | 95 mm |
| Înăltime | 112 mm |
| Adâncime | 38 mm |
| Utilizare | for trunking LE 100 |
| Clasa de reacţie la foc a materialului de fond | A1 - D |
| Permite instalarea aparatajului dublu | yes |

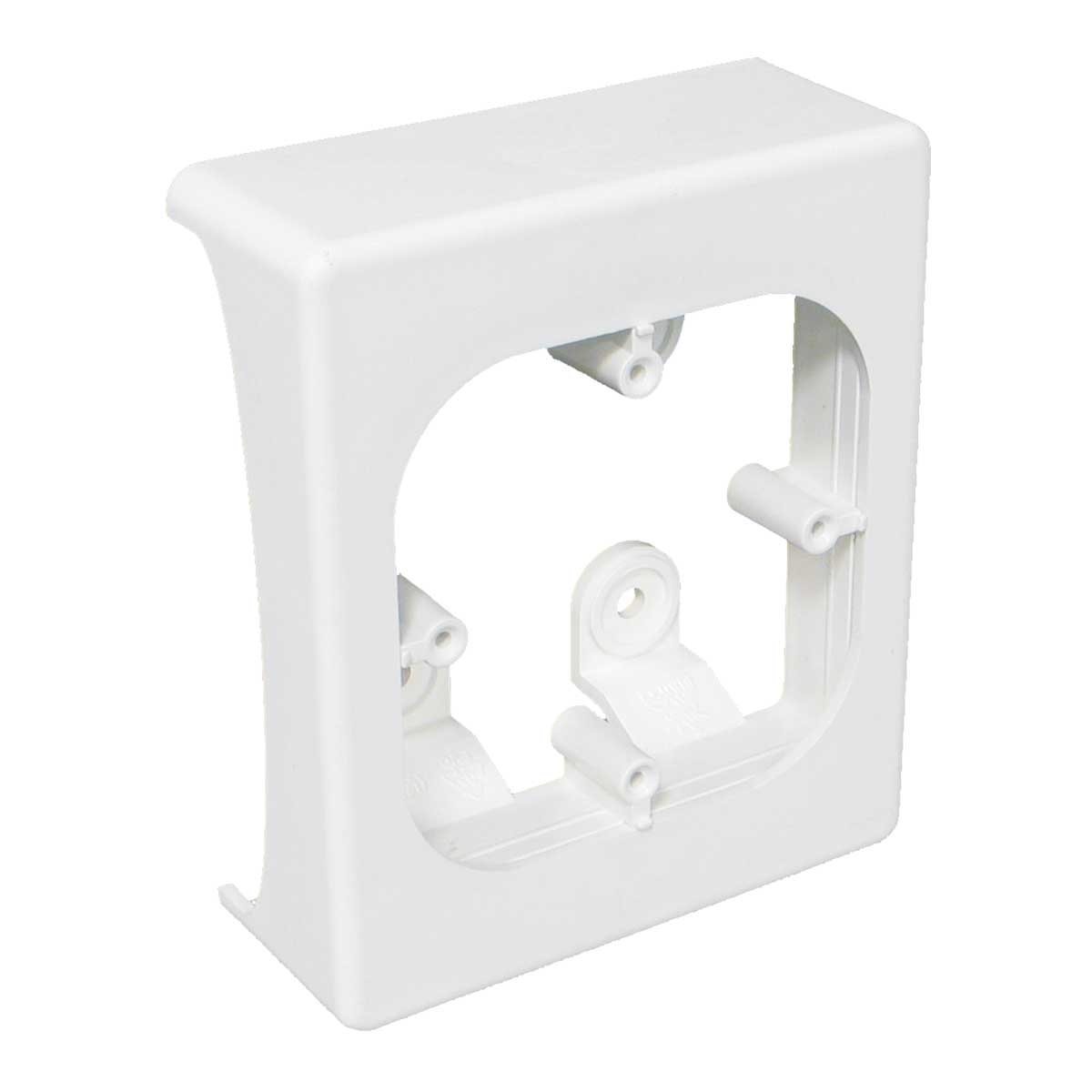

It consists of two parts - the carrier and cover. After removing the members in the vertical axis, you can mount the doublesocket. Suitable for the following instruments: Classic, Tango, Swing, Time, Element and others with a max. width of 89 mm.
