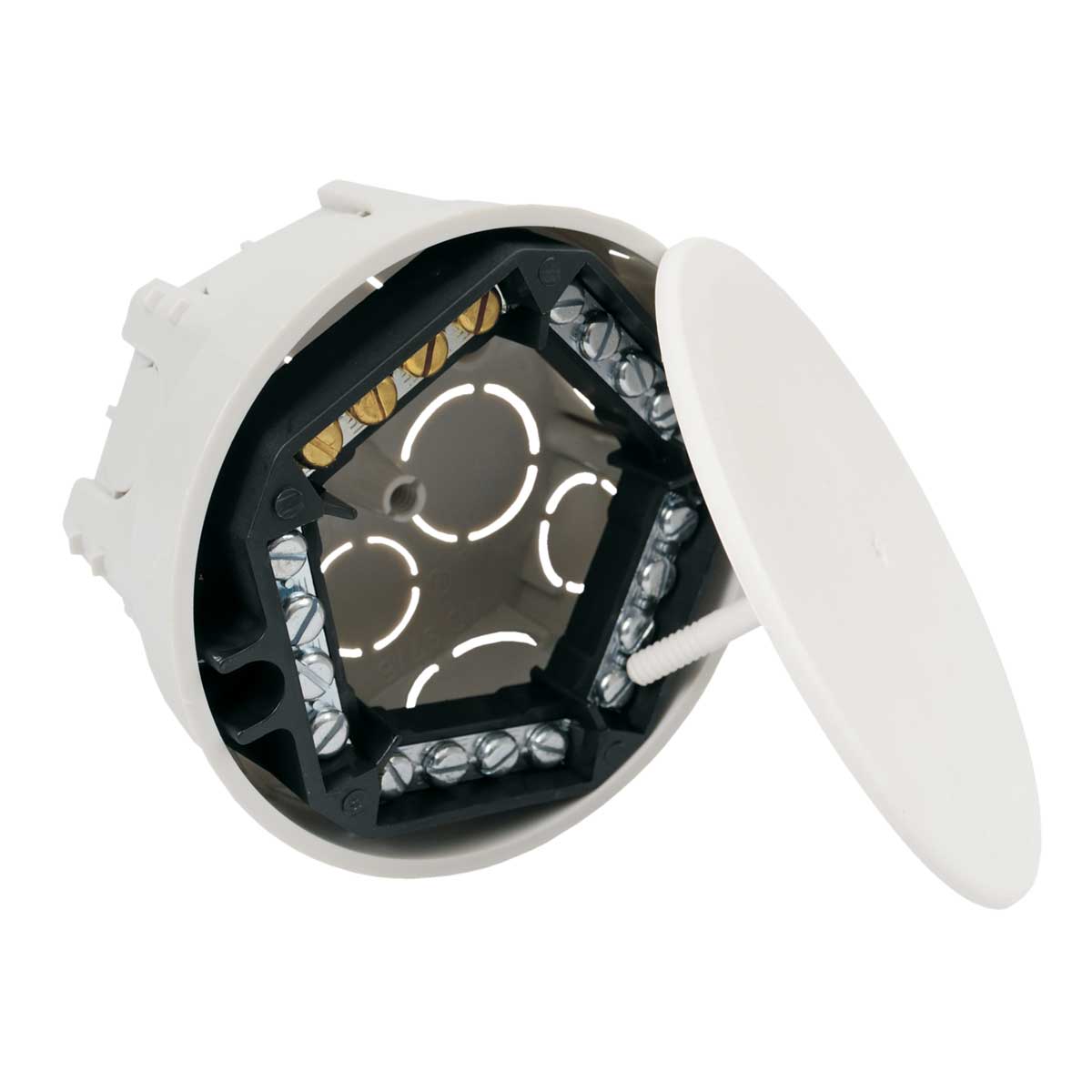

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
KR97_5_EN
| Cod Ean | 8595057600256 |
| Cod vamal | 85381000 |
| Greutate | 0,1633 kg/buc |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - +60 °C |
| Testat cu buclă incinsă | 850 °C |

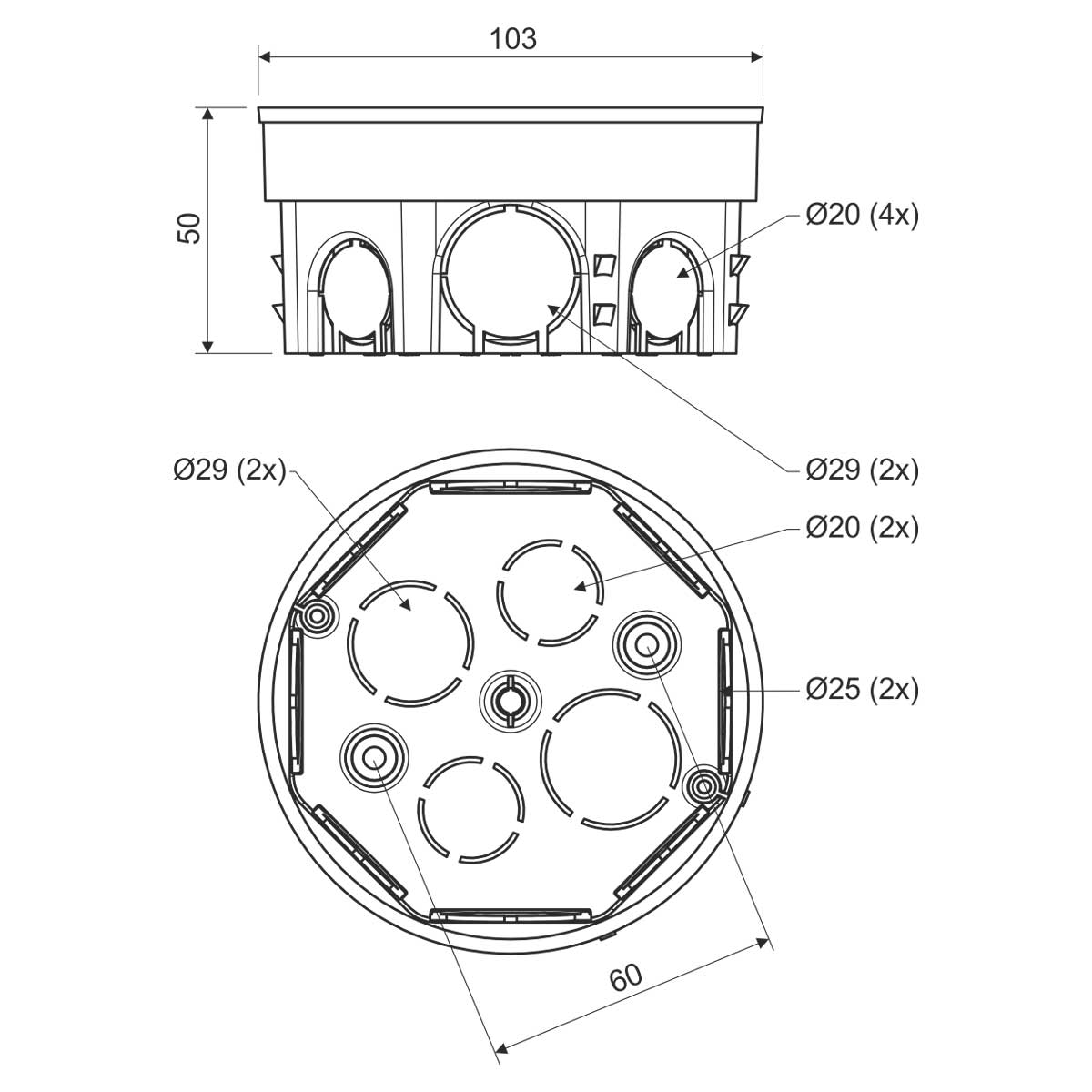

| În medie | 103 mm |
| Adâncime | 50 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - D |
| Standarde | ČSN EN 60 670-1 |
| Descriere impachetare SP-96 terminal box is screwed into the box, the lids are inserted and the individual boxes are inserted into the carton | |
A large number of knockouts to make larger installations. Projections against ripping the box out of the wall. Sufficient space for terminal plate and circuit connection.
