Cod Ean8595057698529
Cod vamal39269097
Greutate0,0150 kg/pcs
Culoarewhite
MaterialPVC
Material fără plumbyes
Cu suto-stingere30 s
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă850 °C

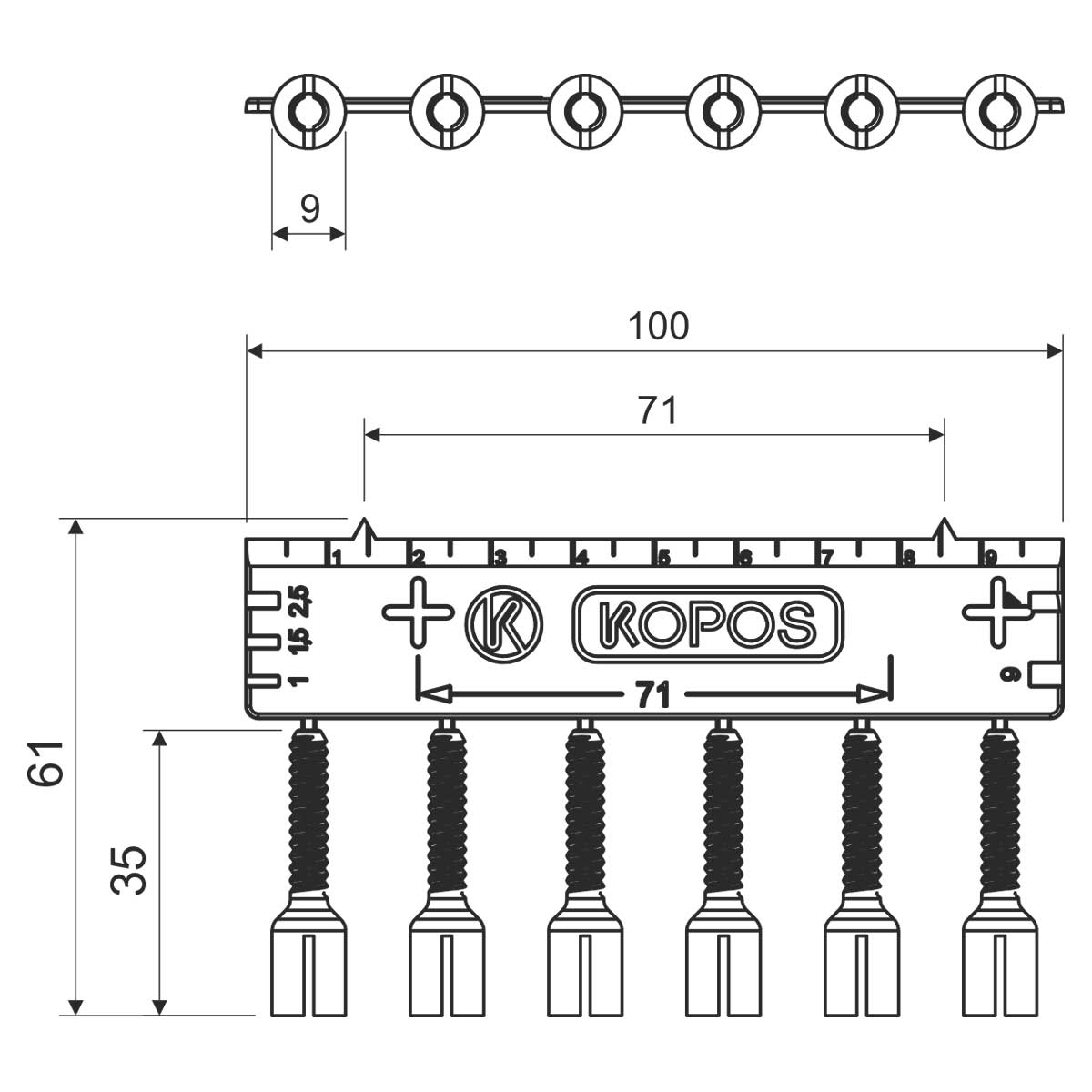

În medie9 mm
Lungime35 mm
Utilizarefor boxes KO 97/5, KR 97/5, KO 97/LD, KOM 97
Clasa de reacţie la foc a materialului de fondA1 - F

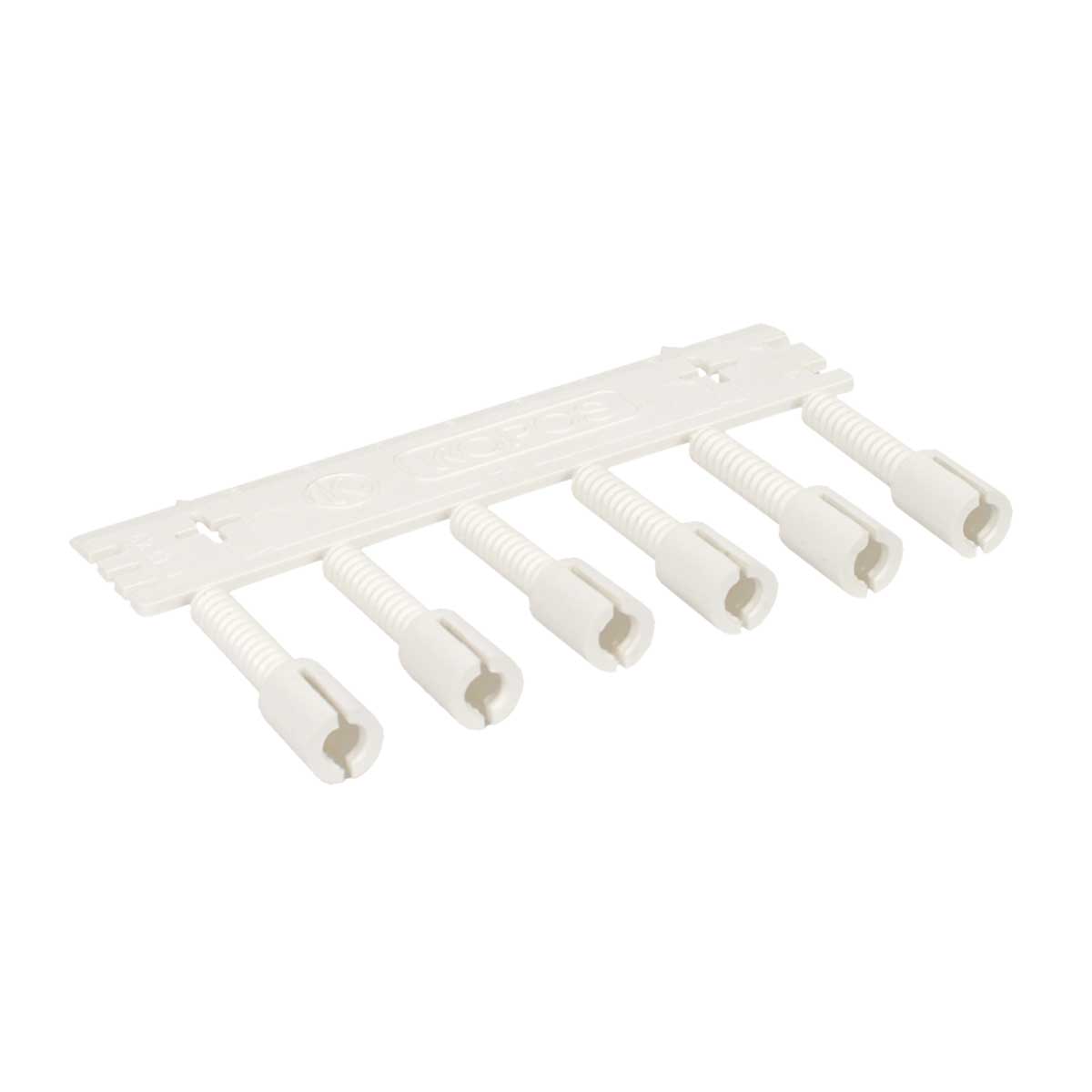

To extend the central pin of cover lids, for boxes that are too recessed, where the cover lid pin is short and does not reach the central thread of the wiring box. The pin can be shortened to the required length. Attached ruler is used to measure the spacing of 71 mm when mounting devices in the combined frame. Notches can be used as a gauge to identify cable sections. 1 piece contains a plate of 6 adjusting pins.
