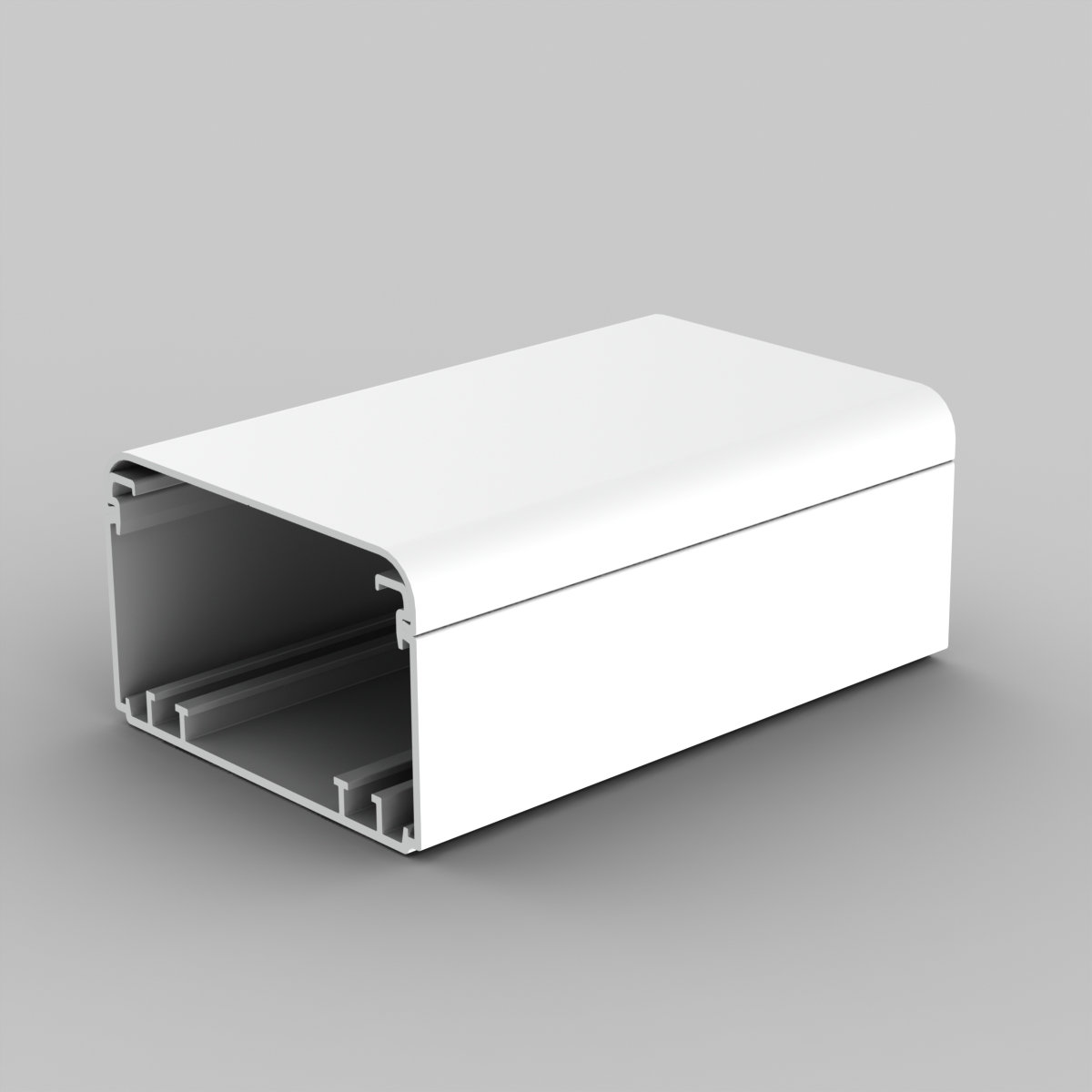

EKE100X60_EN
| Cod Ean | 8595057620735 |
| Cod vamal | 39259020 |
| Greutate | 1,1000 kg/m |
| Culoare | white |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |
| Rezistență la impact | 2 J |
| Antibacterial | yes |

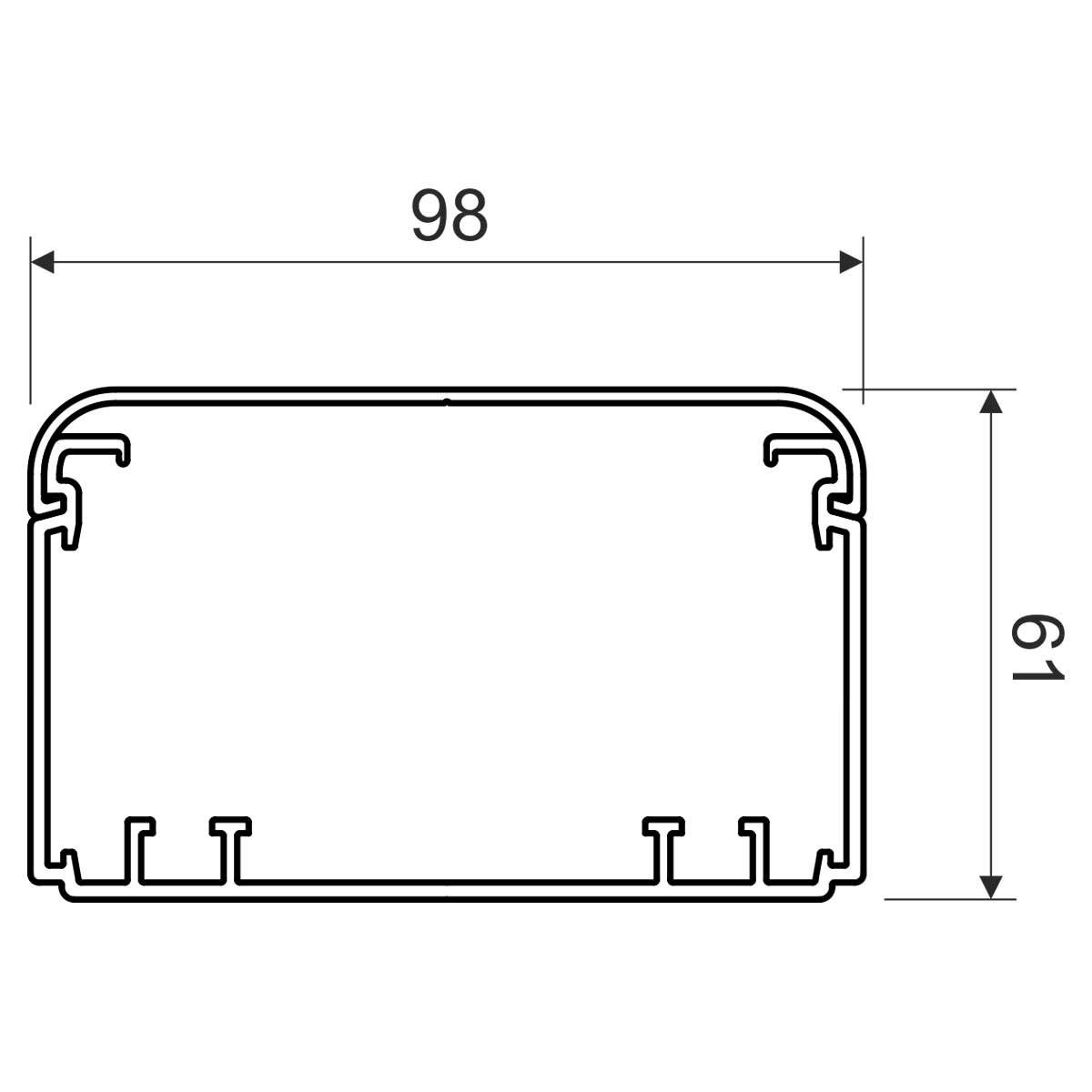

| Lătime | 98 mm |
| Înăltime | 61 mm |
| Lungime | 2 m |
| Zona interioară | 4600 mm2 |
| Toleranță The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Utilizare They are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use. | |
| Recomandările producătorului The individual cables can be electromagnetically shielded by inserting a shield canal if necessary, to avoid interference. In the case of mounting the SK 40X33 (higher) shielding canal, it is not possible to use instruments with a larger installation depth, eg a surge arrester. | |
| Zonă cu pericol de explozie Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Tipuri de protecție | IP 20 |
| Standarde | ČSN EN 50 085-1 |
| Descriere impachetare | package - cardboard |
| Cu folie de protecţie | yes |

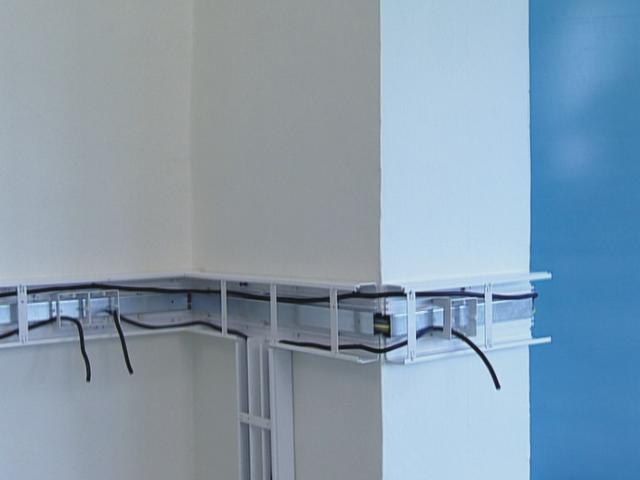

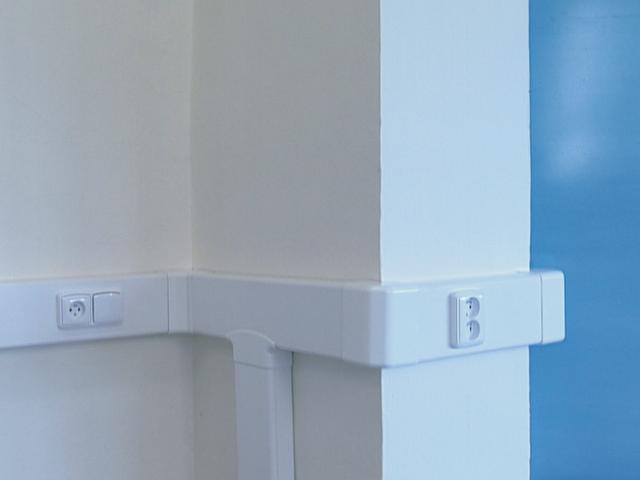

It is designed for inserting multiple cables or cables of larger diameters. Possibility to insert partition wall or shielding canal. Possibility to insert an instrument box and subsequently mount common types of instruments. Spacers are included in the package – always 1 pc per 1 m. Registered industrial design.
