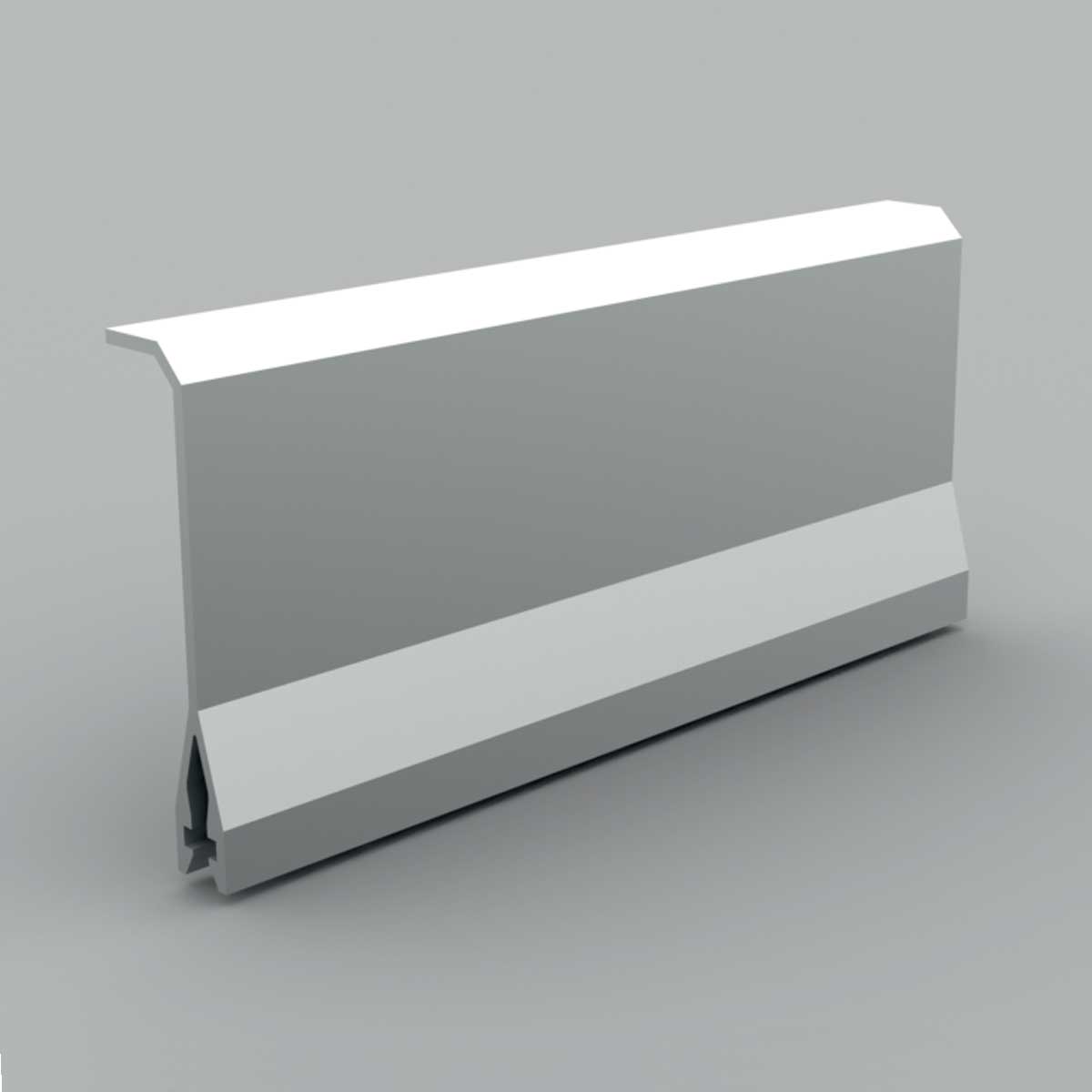

partition wall

Atasamente si certificari

Imagine ilustrativă

To download 3D models, please login or create an account and request access.

Datový list
PKS70-60_EN

Certifikace
Declaration REACH
Conformity declaration
Certificate ESČ
Declaration RoHS

Cod Ean	8595057664364
Cod vamal	39269097
Greutate	0,1210 kg/m
Material	PVC
Material fără plumb	yes
Cu suto-stingere	30 s

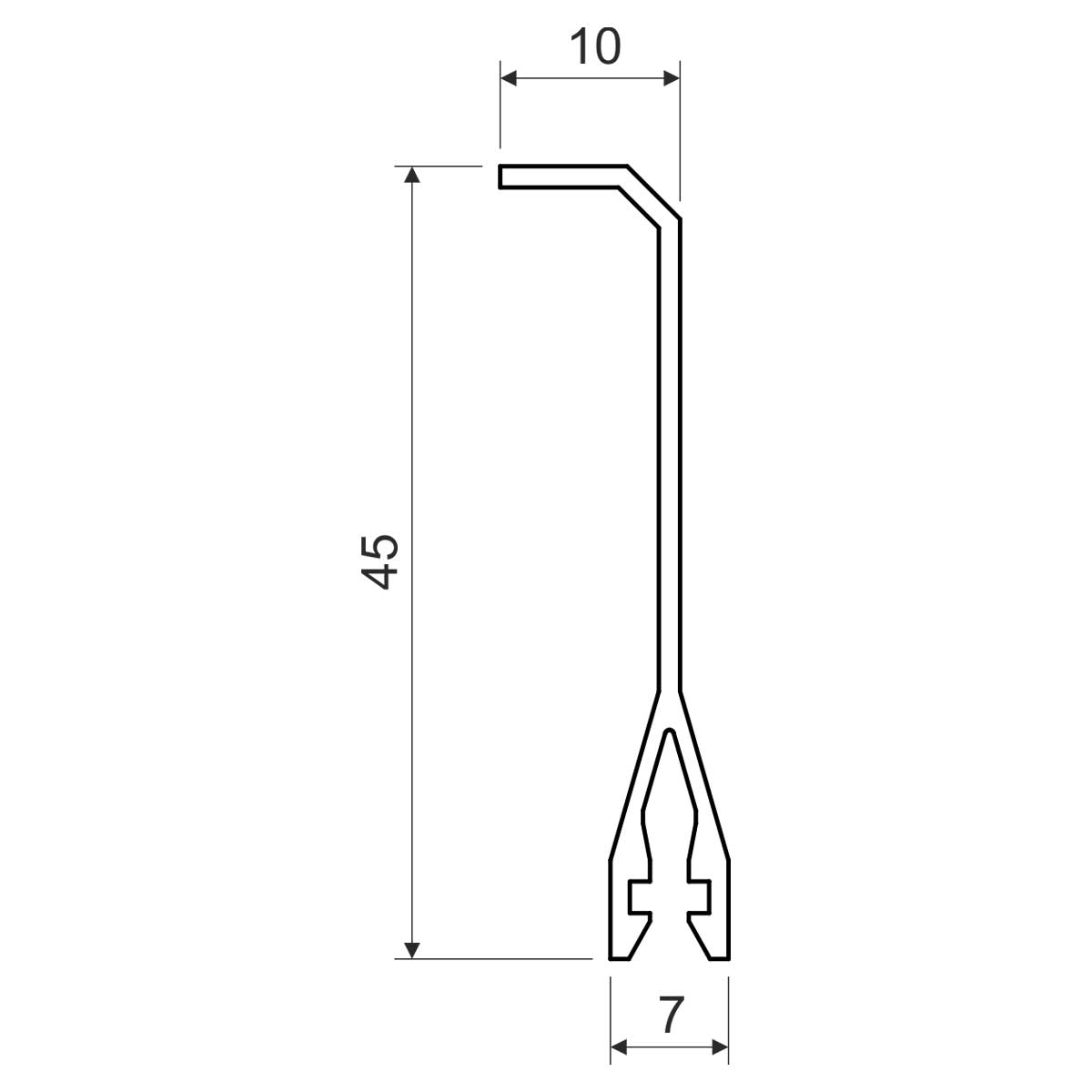

Lătime	7 mm
Înăltime	45 mm
Lungime	2 m
Utilizare For canals EKE 60X60, EKE 100X60, EKE 140X60, EKE 180X60, PK 110X65 D, PK 130X65 D, PK 110X70 D, PK 140X70 D, PK 170X70 D, PK 90X55 D, PK 120X55 D, PK 160X65 D, PK 210X70 D.
Zonă cu pericol de explozie Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14.
Standarde	ČSN EN 50 085-1

A thin layer of metal foil imparts similar properties as a metal partition wall, but is considerably lighter. Individual partition walls should be connected using PLSK connecting wire.
