KUP80_EN
| Cod Ean | 8595057690752 |
| Cod vamal | 39259080 |
| Greutate | 1,1430 kg/pcs |
| Culoare | black |
| Material | PA |
| Material fără halogeni | yes |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Rezistența la temperatură | -5 - 105 °C |
| Testat cu buclă incinsă | 850 °C |

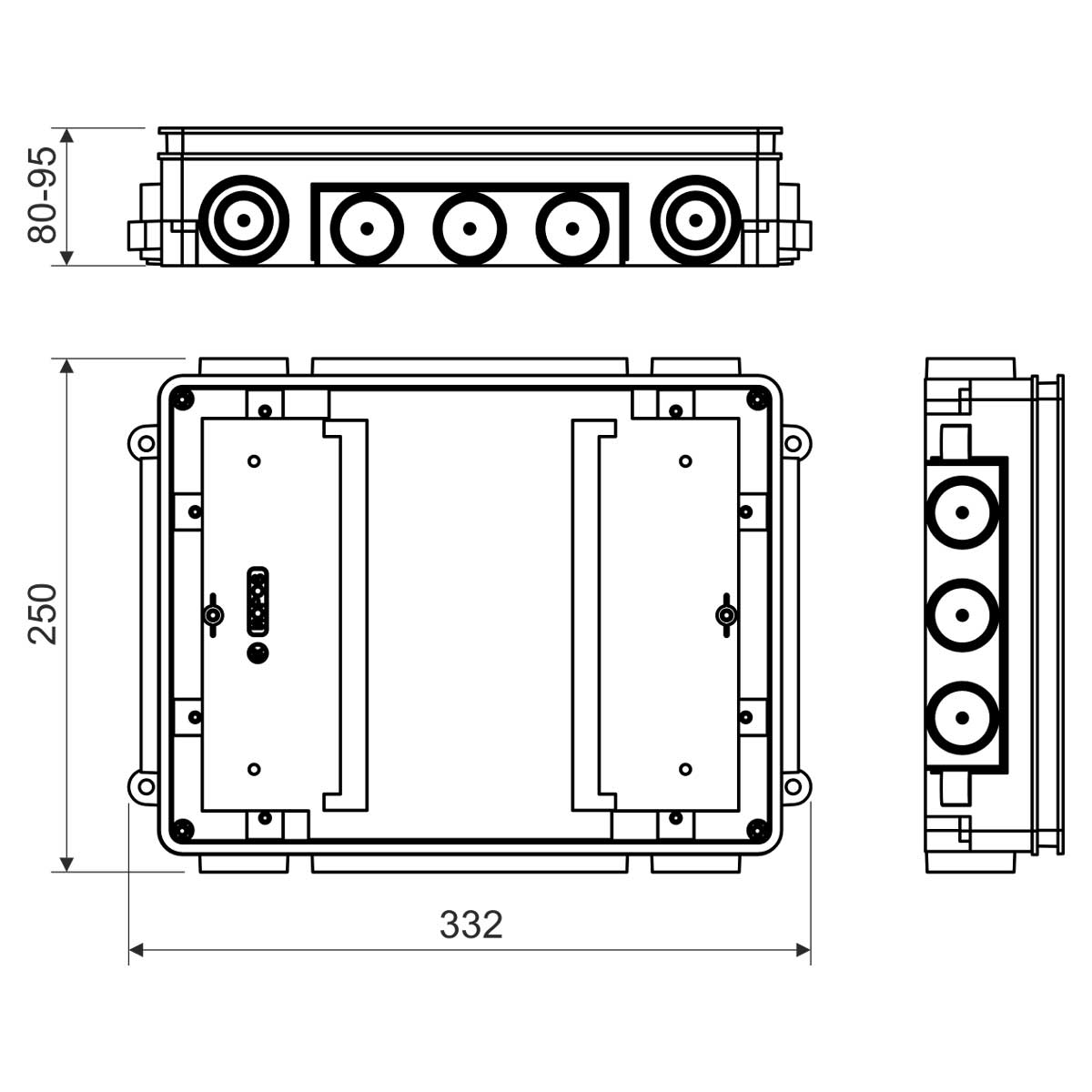

| Lătime | 332 mm |
| Înăltime | 250 mm |
| Adâncime | 80 - 95 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - F |

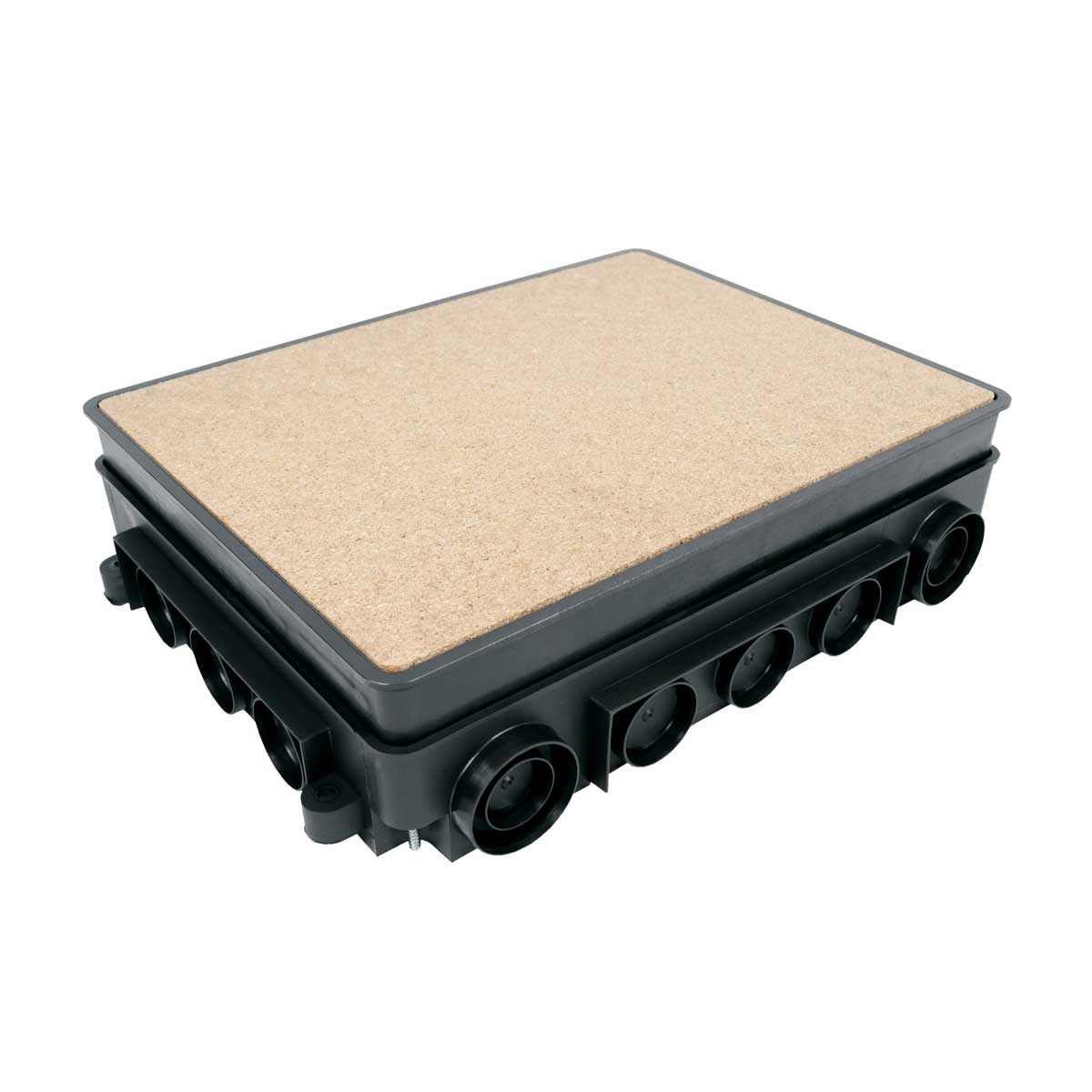

The box is designed for concrete floors. After hardening of the concrete mixture, the floor box KOPOBOX is installed. The package includes a cover plate to prevent the box from being poured over with concrete. The minimum height of the concrete layer is 80 mm, maximum 95 mm. The desired height of the box is adjusted by raising the internal insert using screws in the corners of the box. With a SN-leveling set, it is possible to increase the height for concreting by up to 35 mm. The box is designed for wiring pipes and PUK floor canal.
