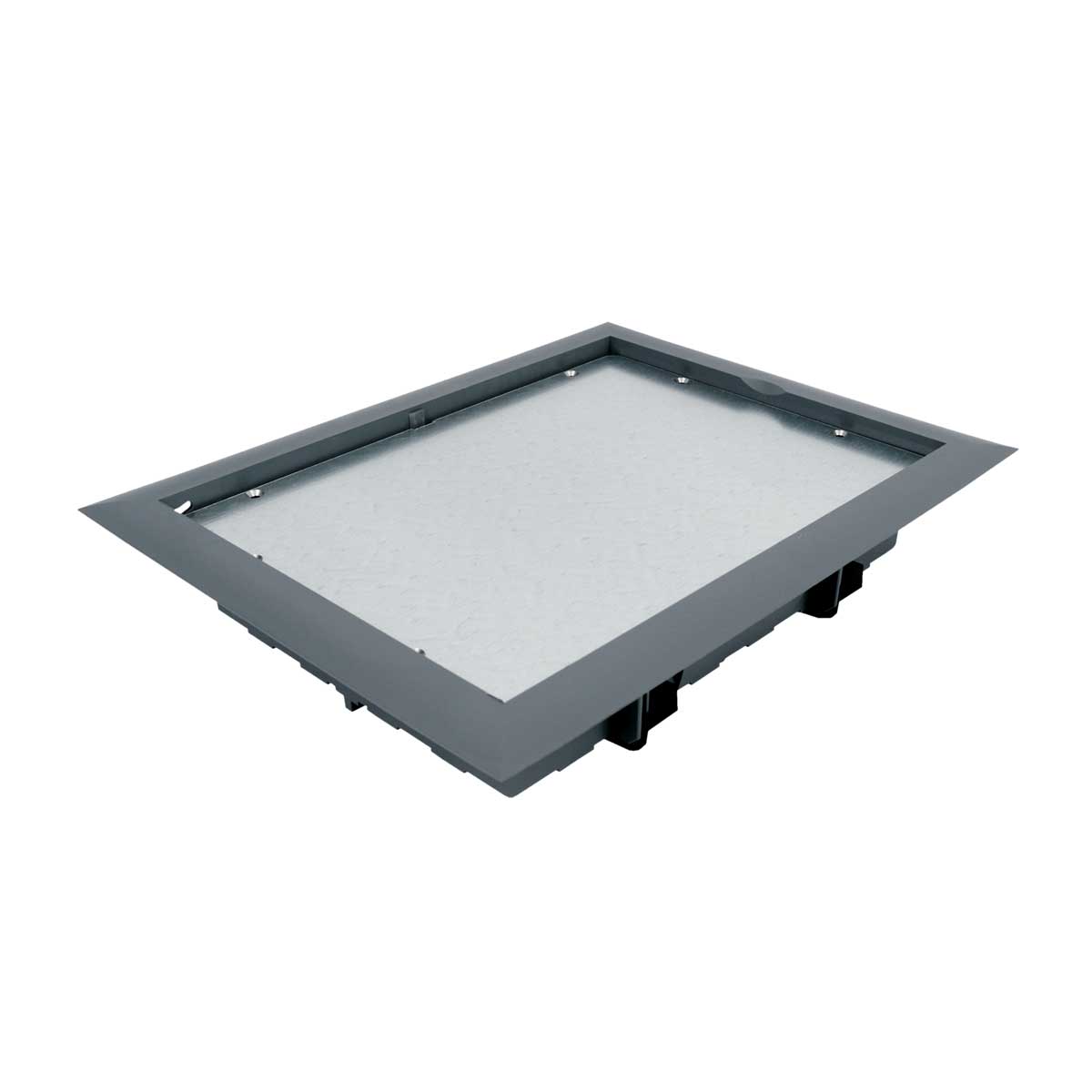

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
PP80_K5_EN
| Cod Ean | 8595057699571 |
| Cod vamal | 39259080 |
| Greutate | 1,2800 kg/pcs |
| Culoare | dark grey RAL 7012 |
| Material | PA |
| Material fără halogeni | yes |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Rezistența la temperatură | -5 - 105 °C |
| Testat cu buclă incinsă | 850 °C |

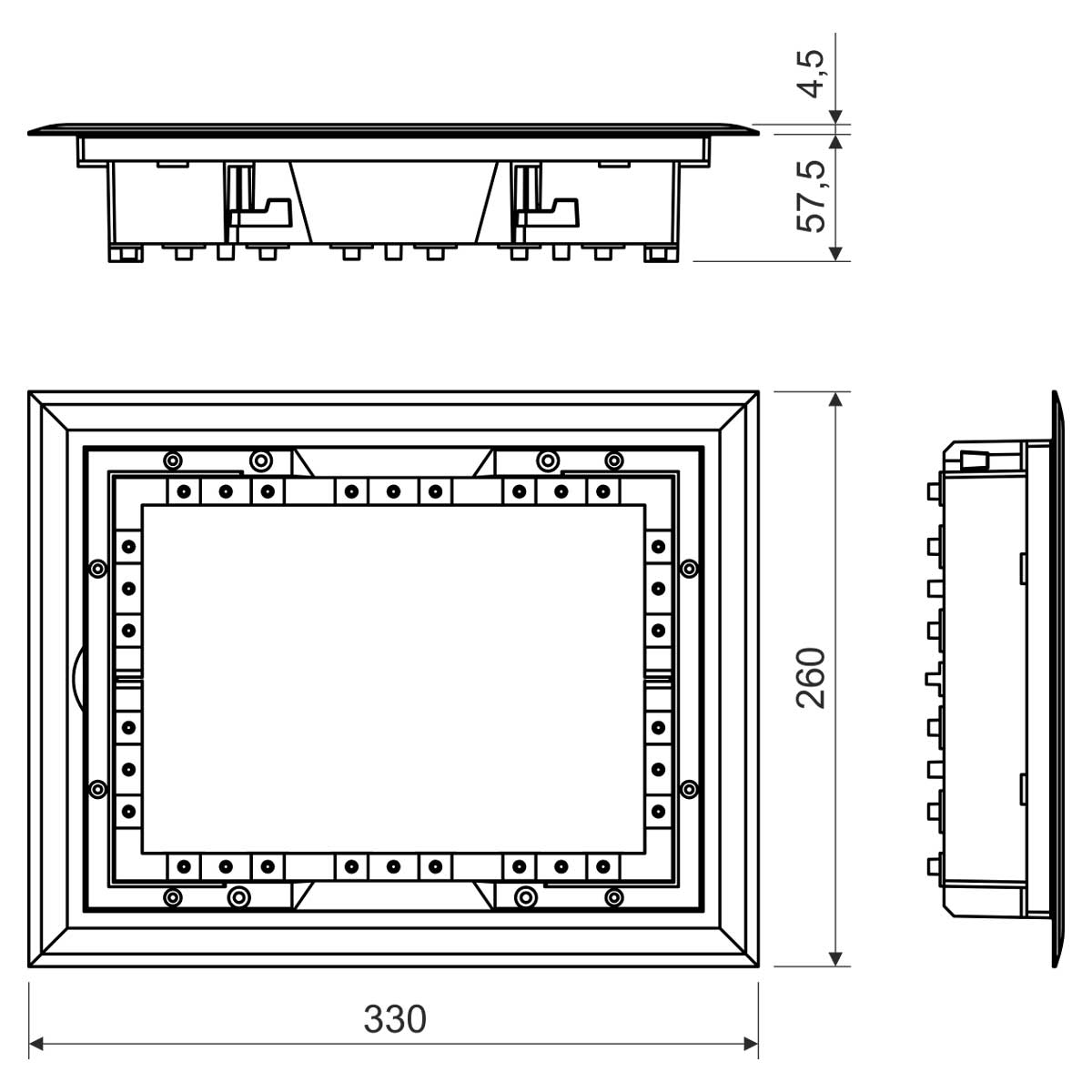

| Lătime | 330 mm |
| Înăltime | 260 mm |
| Adâncime | 62 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Tipuri de protecție | IP 30 |
Designed for installation into the floor box KUP 80. Use as a blind cover for threading cables. After frame installation, put the final flooring on support sheet metal; the frame is not designed for device installation. Additional device installation is possible only when you change the frame on KOPOBOX 80. After installing the box, the final floor covering of a maximum height of 8 mm is laid on the support plate. The proposition of hole to insert the floor box is 218 x 288 mm.
