Sada nivelační

Atasamente si certificari

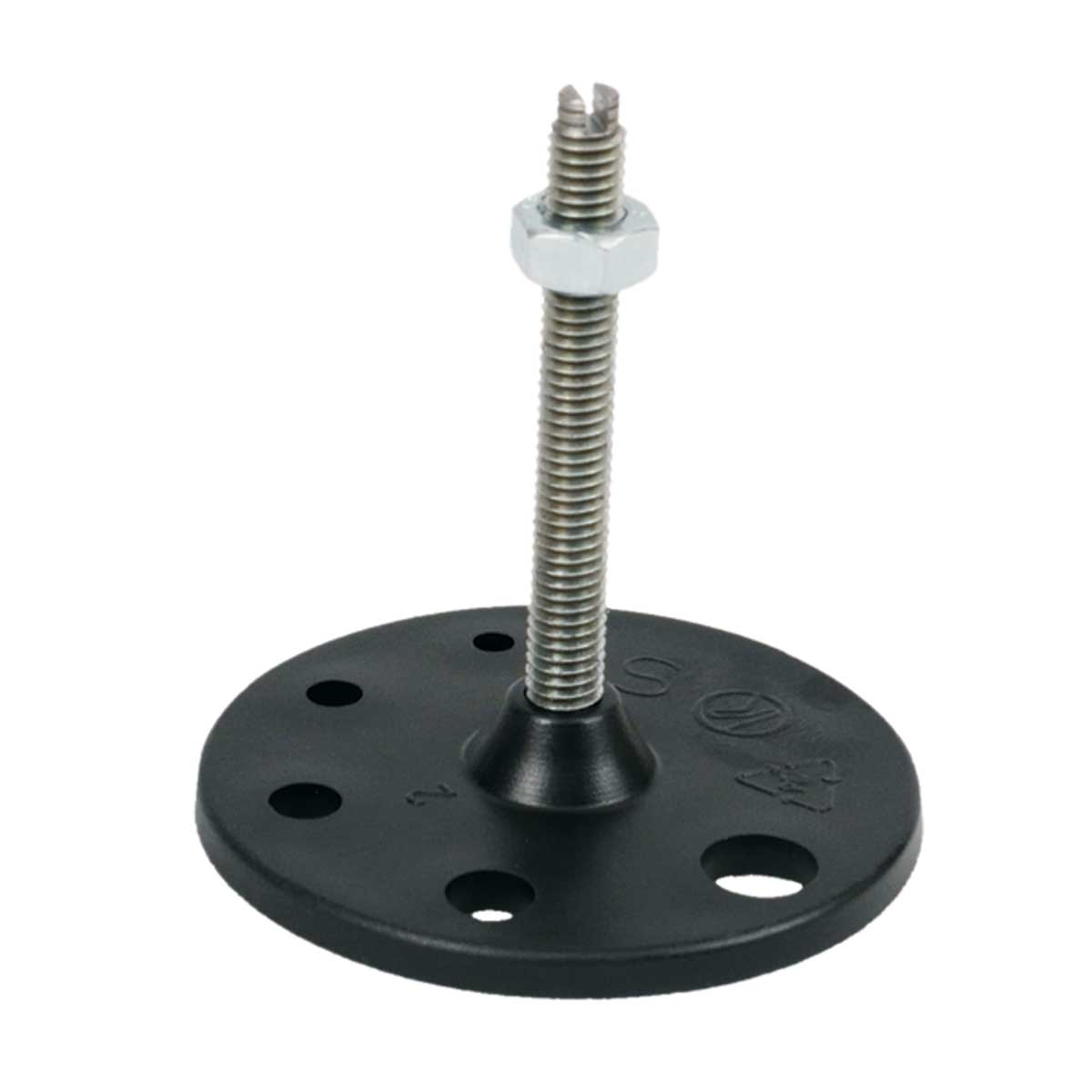

Imagine ilustrativă

To download 3D models, please login or create an account and request access.

Datový list
SN_EN

Certifikace
Conformity declaration
Certificate ESČ
Declaration RoHS
Declaration REACH

Cod Ean	8595057690844
Cod vamal	39259080
Greutate	0,0745 kg/pcs
Material	PE
Material fără halogeni	yes
Cu suto-stingere	30 s
Rezistența la temperatură	-5 - 105 °C
Testat cu buclă incinsă	850 °C

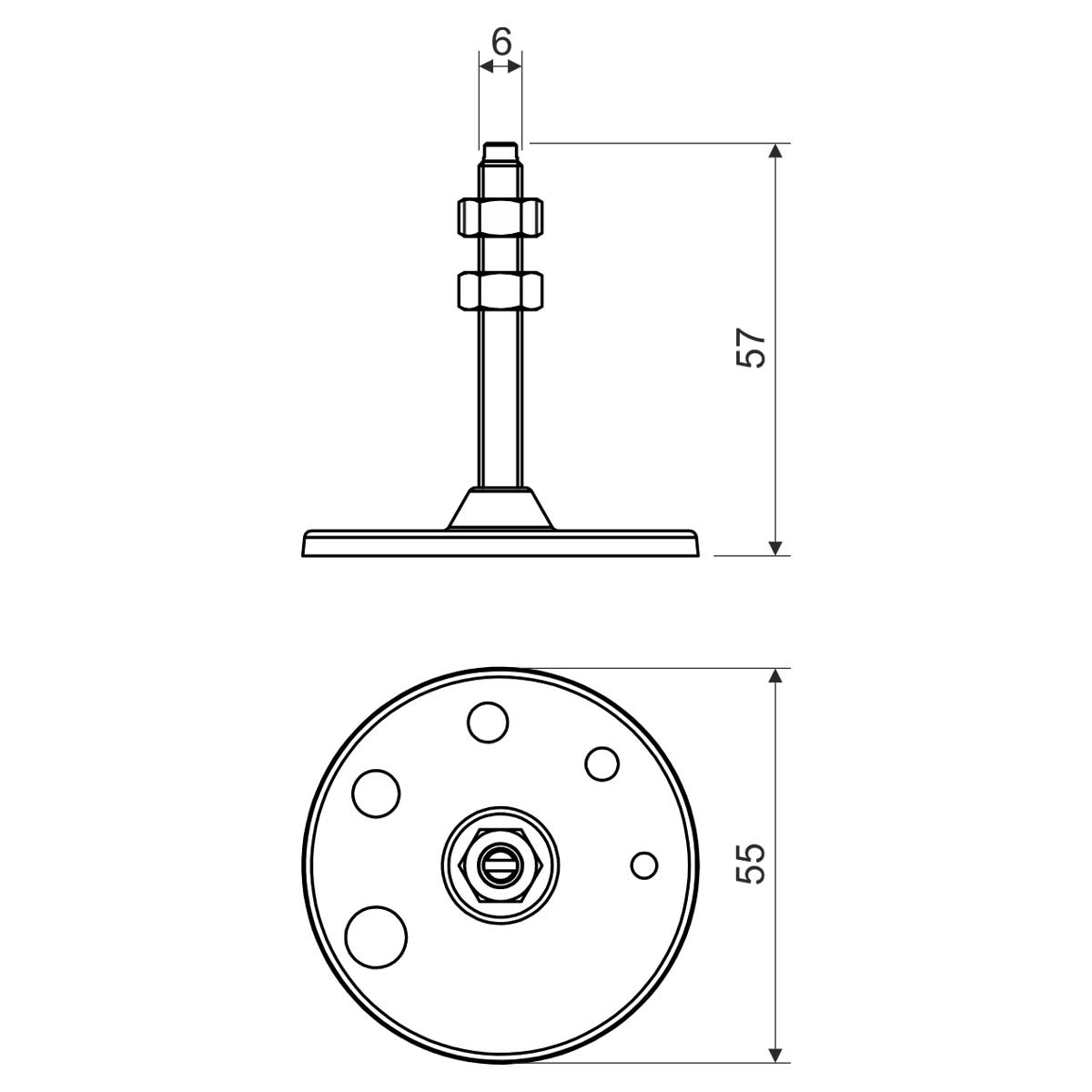

În medie	57 mm
Adâncime	55 mm
Clasa de reacţie la foc a materialului de fond	A1 - F
Descriere impachetare package includes 4 pcs - for all corners of the box

To set the exact height of the universal box KUP 57 or KUP 80 when pouring into concrete floors. It allows to raise the height of the concrete by up to 35 mm. To prevent wash-up with concrete, fix the box using M6 nuts - included in the package. The leveling set includes 4 adjustable elements (in each corner of the KUP box). Groove for screwing allowing comfortable and precise height adjustment.
