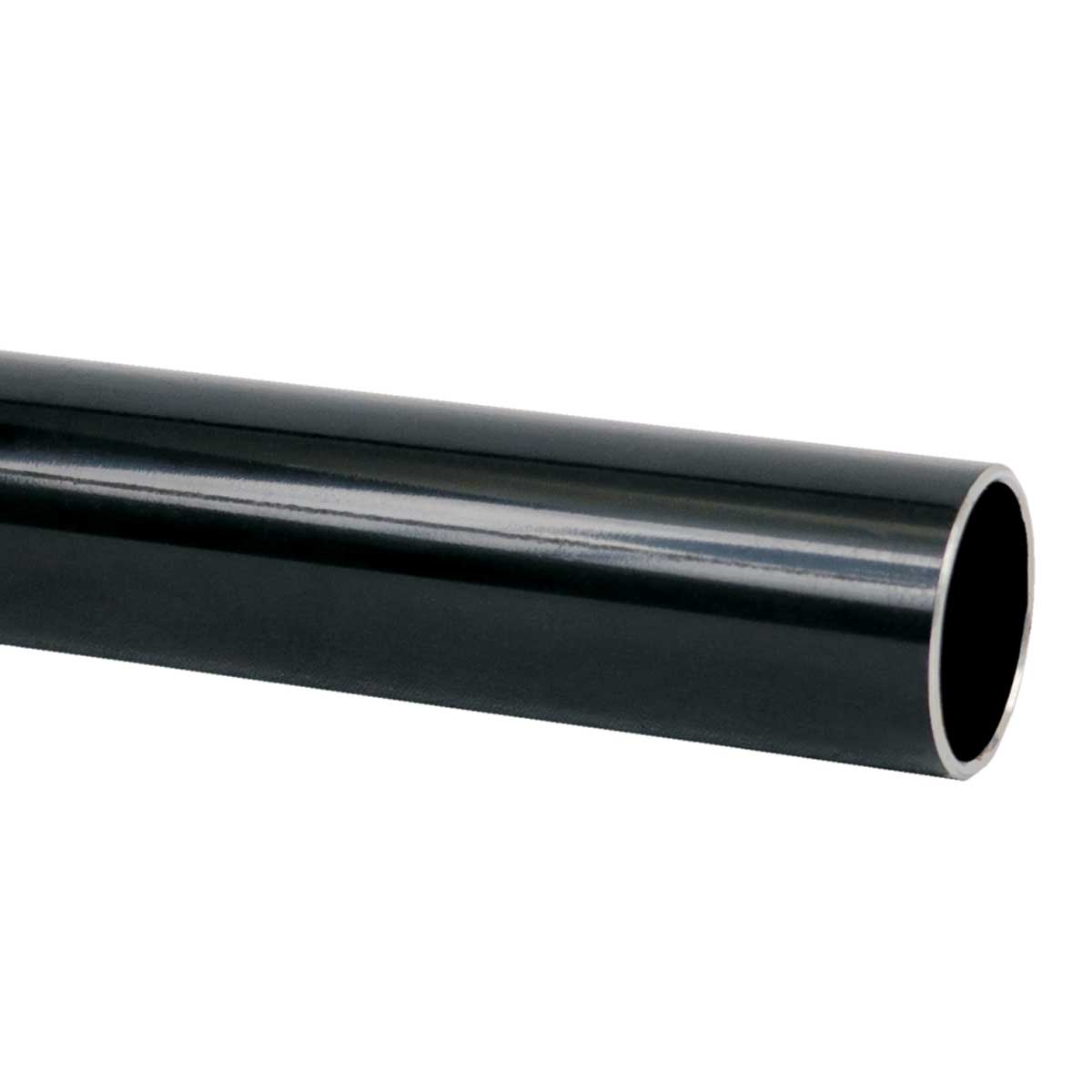

Steel unthreaded pipes - painted in black circumferentially (EN)

Atasamente si certificari

Imagine ilustrativă

6225 EOZ - ocelová trubka bez závitu obvodově lakovaná (EN)

Datový list
trubka_ocel_EN_DE
trubka_ocel_EN_EN

Certifikace
Conformity declaration
Declaration RoHS
Declaration REACH
Certificate ESČ

Cod Ean	8595568920386
Cod vamal	73063072
Greutate	0,7580 kg/m
Culoare	black
Material	steel
Acoperire de suprafată Varnished EOZ: Galvanized steel Sendzimir powder coated, color RAL 9005 black, medium corrosion resistance - Group 2
Rezistența la temperatură	-45 - 250 °C
Rezistență mecanică	1250 N/5cm
Protectie mecanică	IK10
Lungime	3 m
Diametru exterior	25 mm
Diametru interior (min.)	20,6 mm
Cod se sortareKód triedenia	44561
Standarde	ČSN EN 61386-1 ed.2

The pipes are suitable for mechanical protection of conductors and cables. While using pipes along with bushing 4816E - 4863 is scope of application only -5 - +60 °C.
