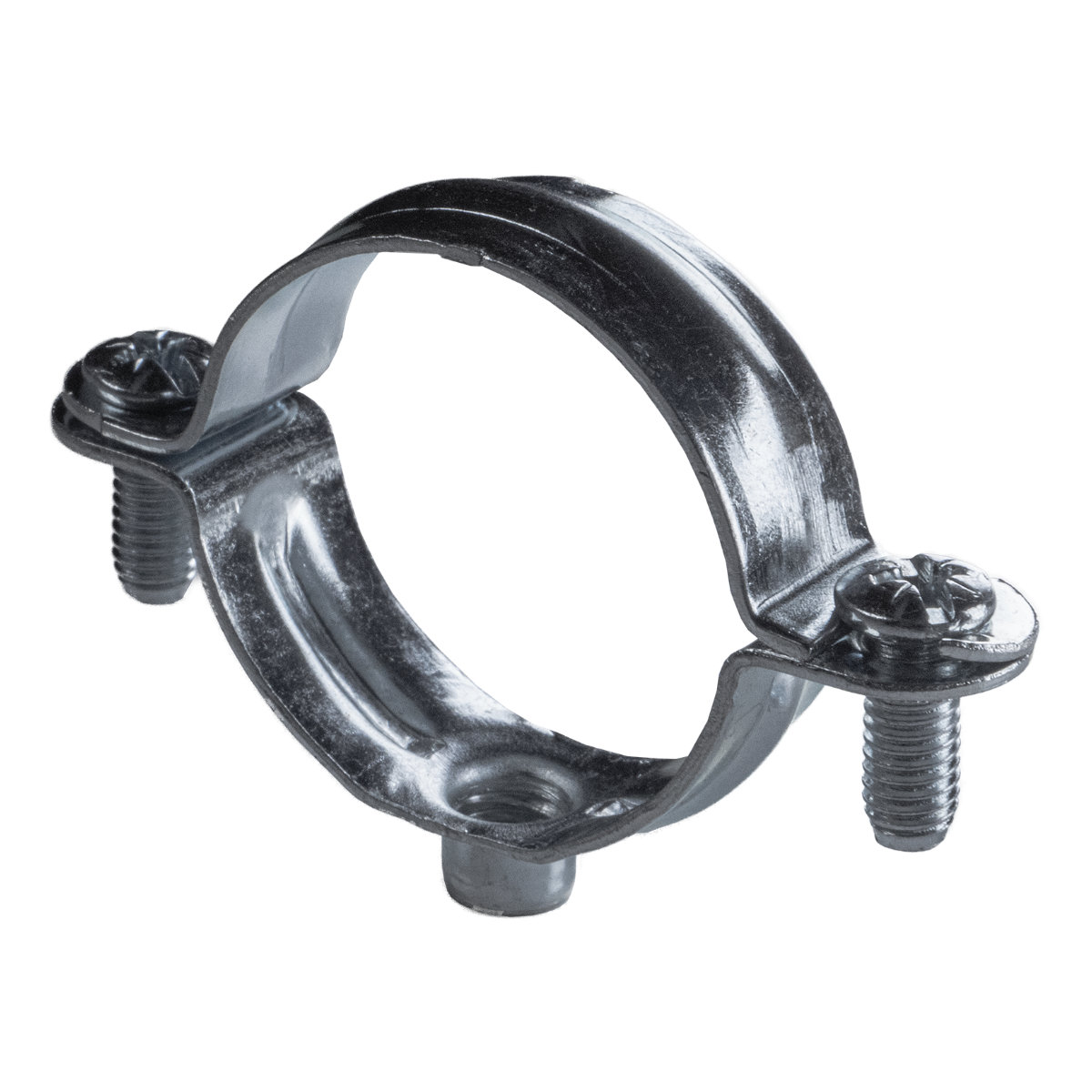

prichytka_DOBRMAN_PO_EN
| Cod Ean | 8595568927545 |
| Cod vamal | 73269098 |
| Greutate | 0,0162 kg/pcs |
| Material | steel |
| Acoperire de suprafată | Electrolytic Galvanized |
| Rezistența la temperatură | -45 - 250 °C |
| Lătime | 15 mm |
| Înăltime | 35 mm |
| Lungime | 35 mm |
| Diametrul exterior al tubului | 25 mm |

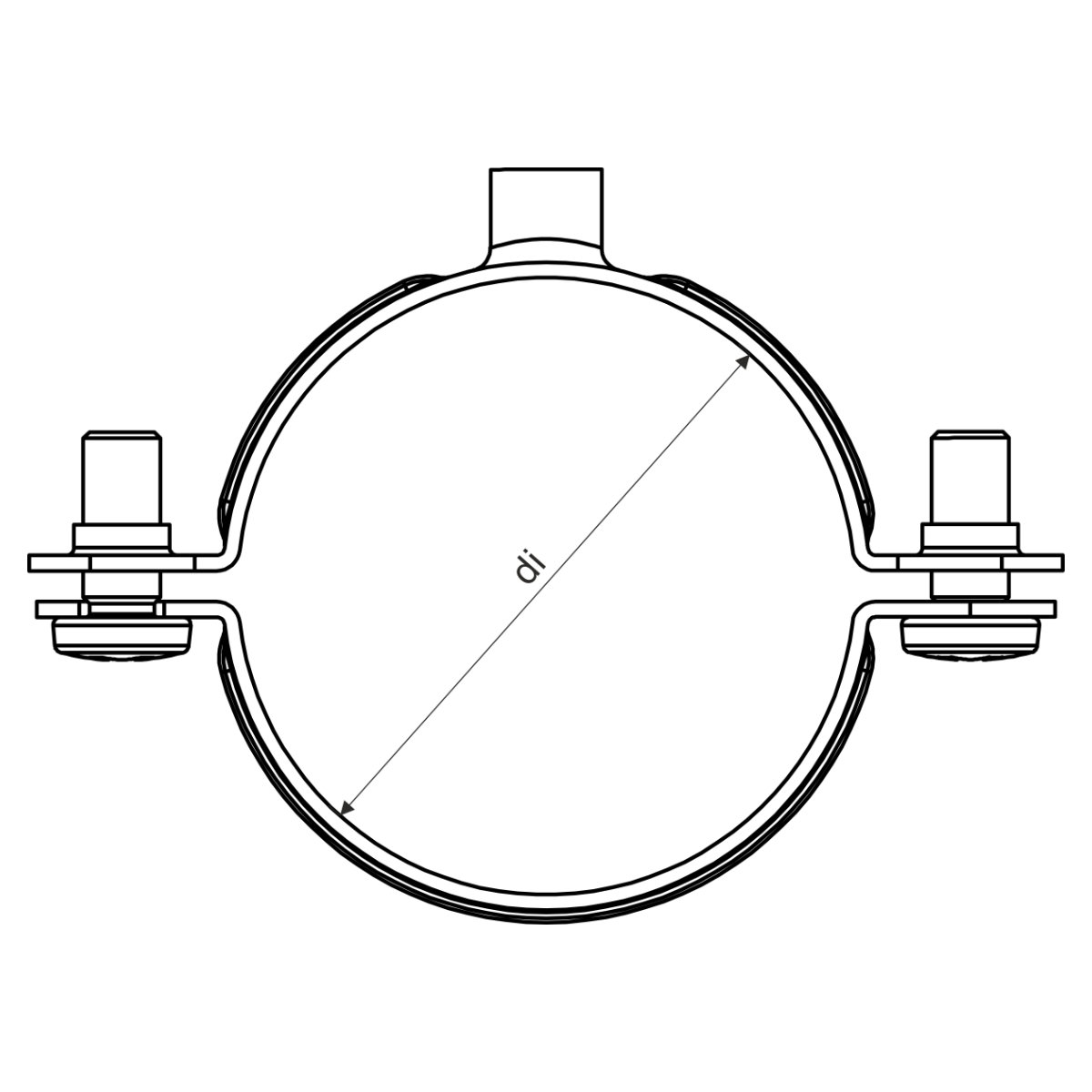

| Diametru interior | 25 mm |
| Funcționalitate în foc | P90-R, E90, PS90 |
| Tip cu filet | M6 |
| Cod se sortareKód triedenia | 3456210 |
| Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Pentru tuburi | 25 |
| Încărcătură maximă pentru rezistența la foc is determined by the weight of the inserted cables | |
For fixing to the base material are suitable the KPO 6 anchors or KPOZ 6 anchor in combination with ZT 6 threaded rod, SVD screws in wood, KHP + ZT 6 in aerated concrete. The recommended cable diameters correspond to the size of the clamp with a small reserve. To easier assembly the clamp is provided with a groove for insertion, during assembly it is not necessary the upper part of the clamp completely separate. Anchor KHP with SVD screw is used for anchoring to porous concrete. For more information check catalogue Systems with maintained functionality in fire.
Note for system with maintained functionality in fire:
To fix the connection use threaded rod ZT6 with knocking anchor or anchor KPO 6 .
You find more information in the catalogue Systems with maintained functionality in fire.
