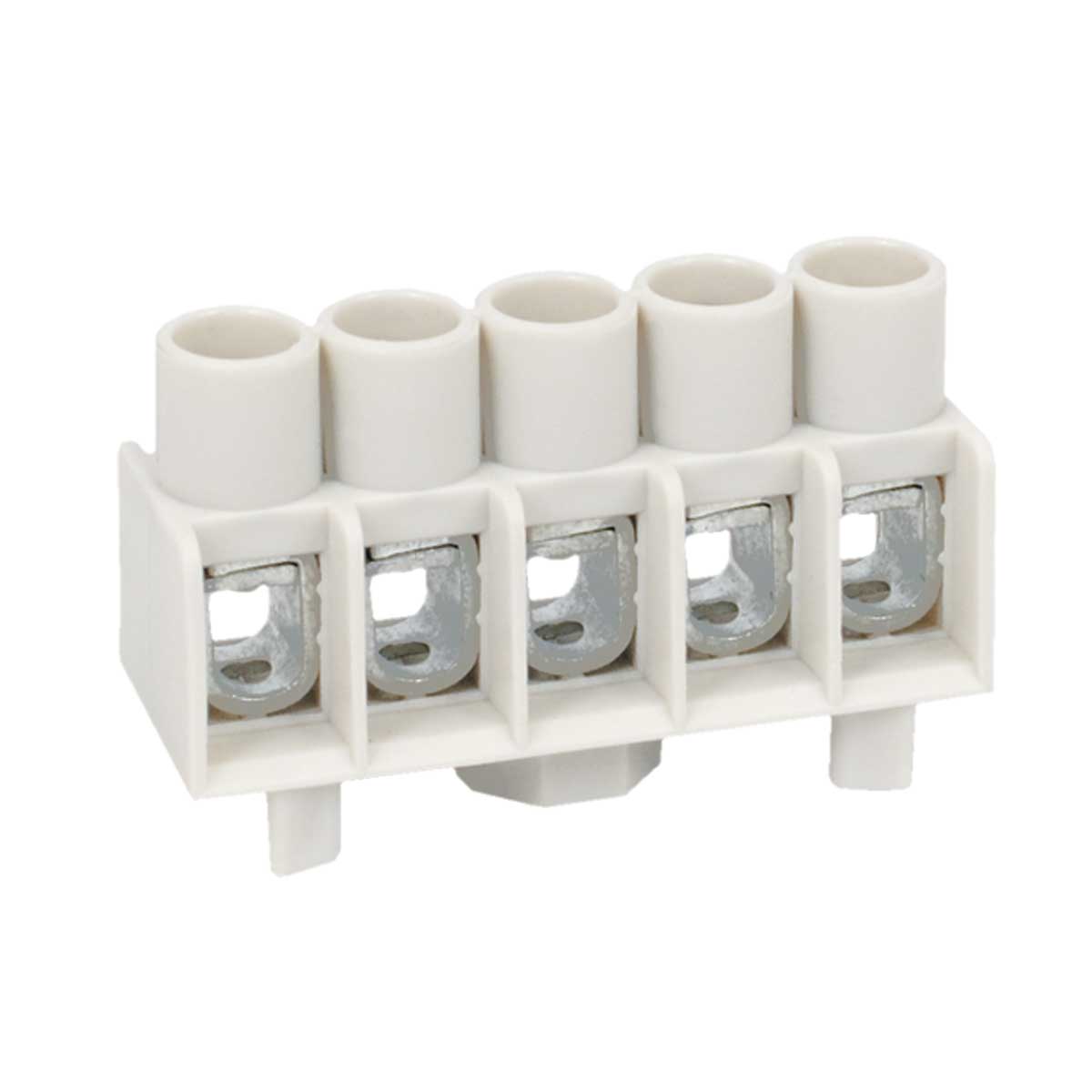

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
SKSK1_EN
| Cod Ean | 8595568919656 |
| Cod vamal | 85369010 |
| Greutate | 0,0200 kg/pcs |
| Material | PP |
| Material fără halogeni | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 500 V |
| Rezistența la temperatură | -40 - 85 °C |
| Testat cu buclă incinsă | 850 °C |

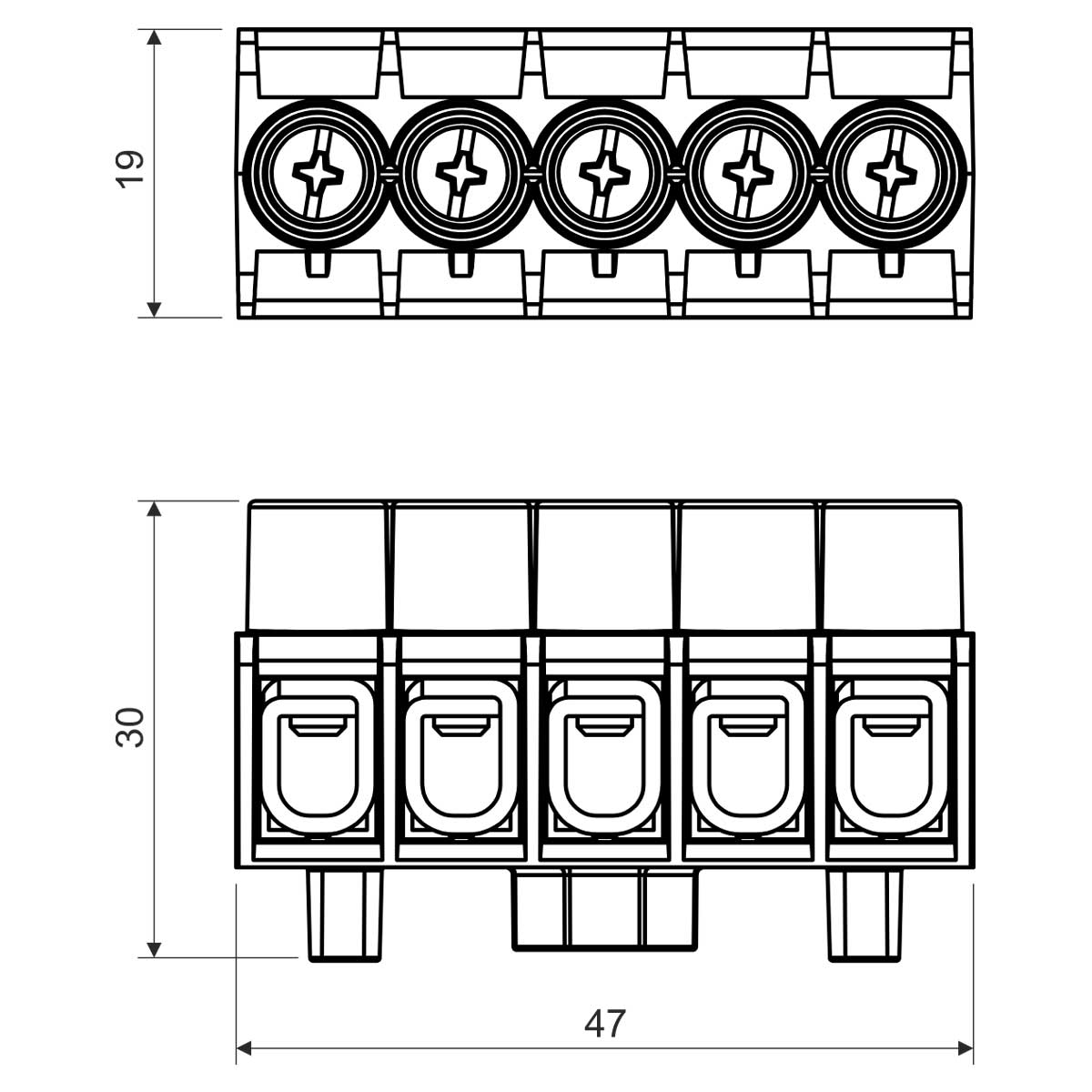

| Lătime | 47 mm |
| Înăltime | 30 mm |
| Adâncime | 19 mm |
| Sectiune mediană a conductorului conectat | 4 x 1,5 - 2,5; 3 x 4 mm2 |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Descriere impachetare 10 pcs terminal plate wrapped in foil, marked with a label | |
Suitable for boxes KSK 80 and KSK 100. Branching terminal plate are composed of five separate terminals. Each terminal is intended for 4 wires of cross section 1.5 – 2.5 mm2 or 3 wires of cross section 4 mm2. Enables easy assembly to the box bottom. Designed for maximum voltage of 500 V. Tested according to ČSN EN 60998-1.
