KOPOBOX_MINI_L_EN
| Cod Ean | 8595568920058 |
| Cod vamal | 39259080 |
| Greutate | 0,1730 kg/pcs |
| Culoare color of the visible parts (lid + frame) - light grey RAL 7035 | |
| Material | PC-ABS |
| Material fără halogeni | yes |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |
| Lătime | 175 mm |
| Înăltime | 80 mm |
| Adâncime | 75 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Tipuri de protecție | IP 20 |

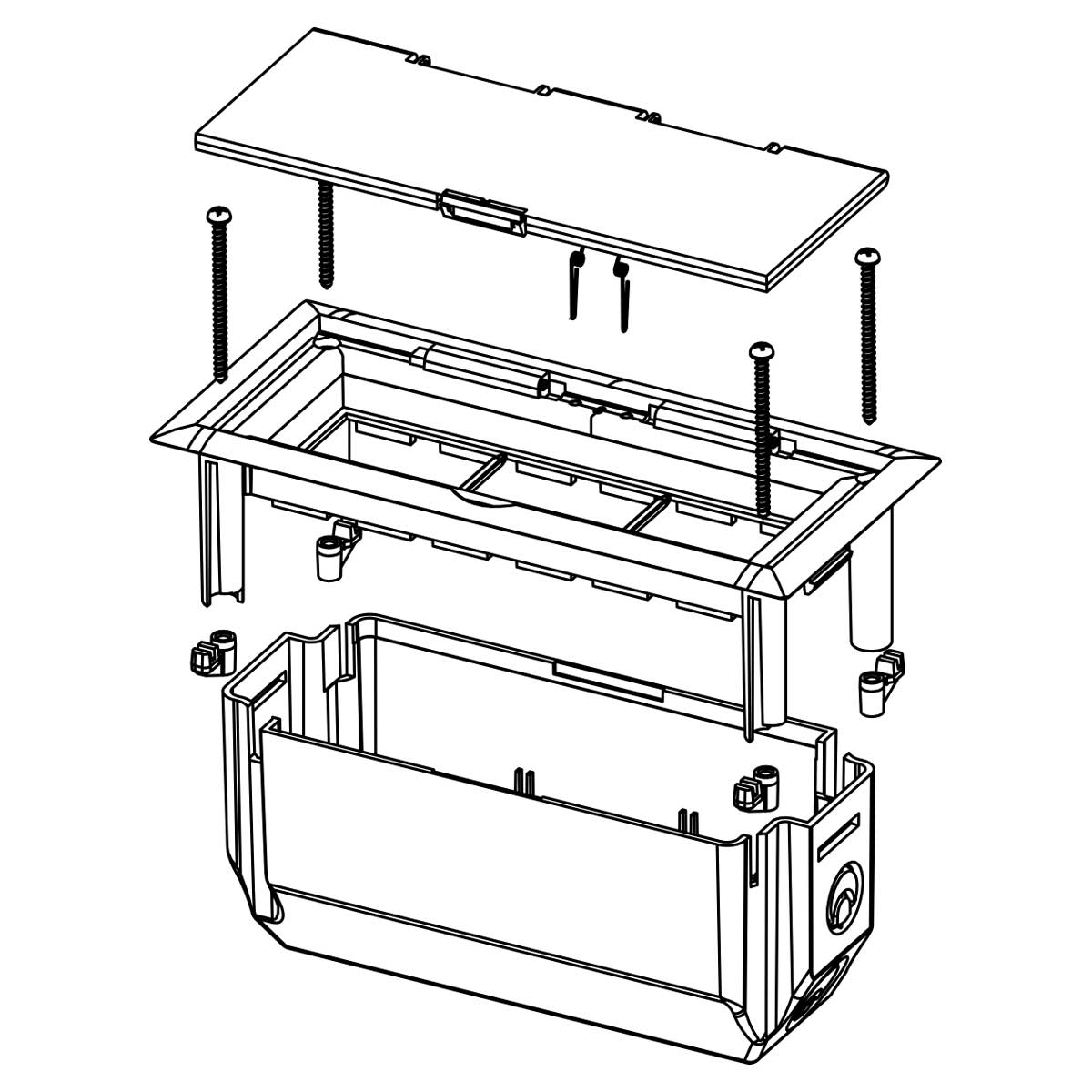

The dimension of completed configuration: 175 x 80 x 75 mm. Opening dimensions for cutting: 163 x 67 mm. The configuration is intended for assembling to furniture, into the hollow walls or to double floors. Box KOPOBOX MINI L there is possible to assemble to the thickness of the desks from 9 till 38 mm. Fast assembling by help of fixation lugs. The bottom cover box enables the fixation of cables against their rapture. KOPOBOX mini L enables the assembling of modular devices of 3 pcs 45x45 or 6 pcs 22,5x45 or their combination. Suitable for QUADRO instruments, tailor-made for KOPOS products. Installation of instruments made by ABB, Legrand, PEHA, Simon connect, Schneider Electric is also possible.
