Imagine ilustrativă
To download 3D models, please login or create an account and request access.
KOPOBOX_MINI_P_EN
| Cod Ean | 8595568920089 |
| Cod vamal | 39259080 |
| Greutate | 0,0830 kg/pcs |
| Culoare color of the visible parts (lid + frame) - white RAL 9003 | |
| Material | PC-ABS |
| Material fără halogeni | yes |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |
| Lătime | 175 mm |
| Înăltime | 80 mm |
| Adâncime | 50 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Tipuri de protecție | IP 20 |

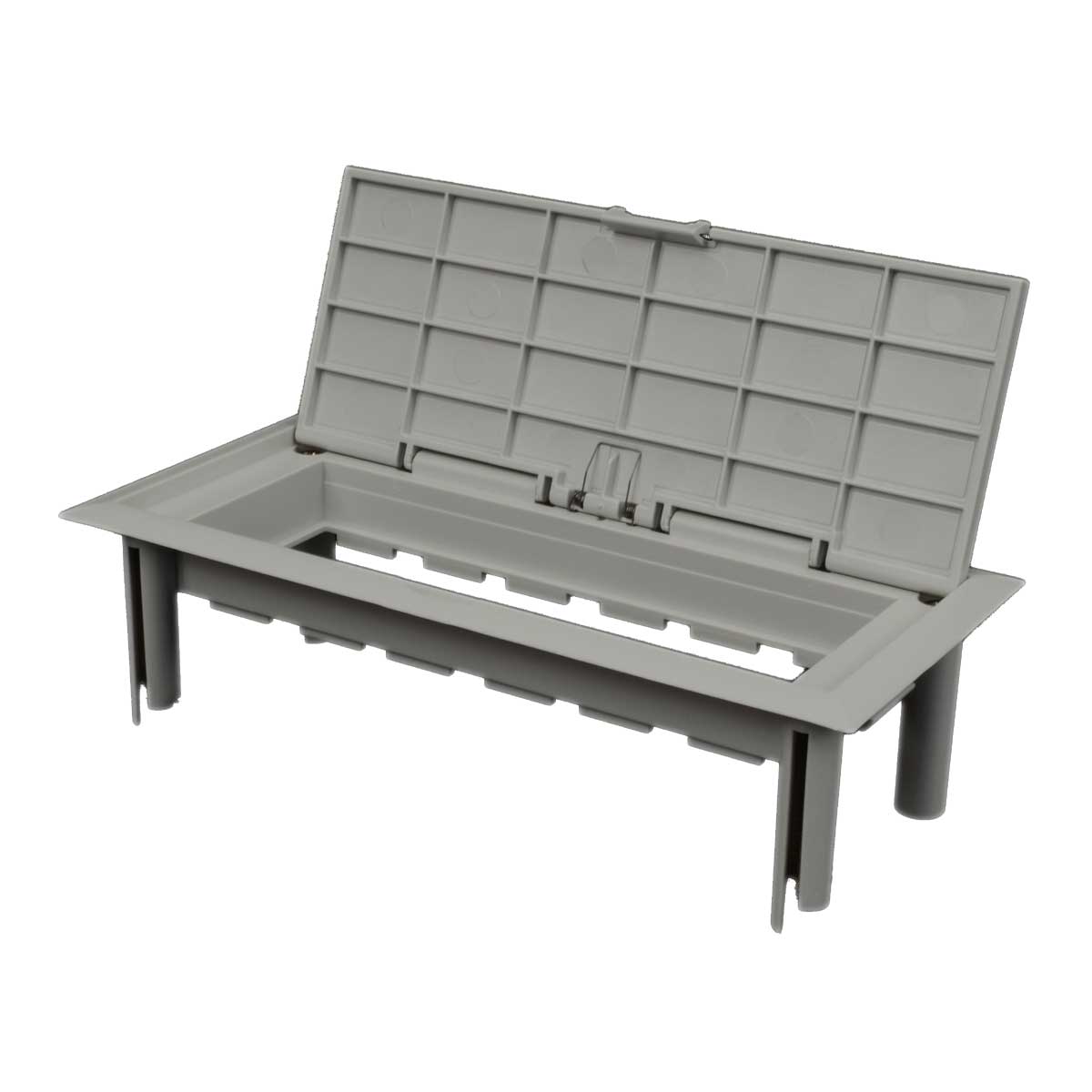

The dimension of completed configuration: 175 x 80 x 50 mm. The configuration is intended for assembling into the parapet trunkings PK 110X65 D, PK 130X65 D, PK 170X65 D, PK 210X70 D, PK 110X65 D HF and PK 170X65 D HF. The bottom cover box enables the fixation of cables against their rapture. KOPOBOX MINI P enables the assembling of modular devices of 3 pcs 45x45 or 6 pcs 22,5x45 or their combination. Suitable for QUADRO instruments, tailor-made for KOPOS products. Installation of instruments made by ABB, Legrand, PEHA, Simon connect, Schneider Electric is also possible.
