spare part wiring box for thermal insulation

Atasamente si certificari

Imagine ilustrativă

ND KEZ KB - náhradní díl krabice elektroinstalační do zateplení

To download 3D models, please login or create an account and request access.

Certifikace
Conformity declaration
Certificate ESČ
Declaration RoHS
Declaration REACH

Cod Ean	8595568925275
Cod vamal	39259080
Greutate	0,0236 kg/pcs
Material	PP
Material fără plumb	yes
Cu suto-stingere	30 s
Voltaj nominal	<= 400 V
Curent nominal	<= 16 A
Rezistența la temperatură	-25 - 60 °C
Testat cu buclă incinsă	850 °C
Lătime	74 mm
Înăltime	74 mm
Clasa de reacţie la foc a materialului de fond	A1 - F
Permite instalarea aparatajului dublu	yes
Descriere impachetare	individual boxes are packed in a shrink foil

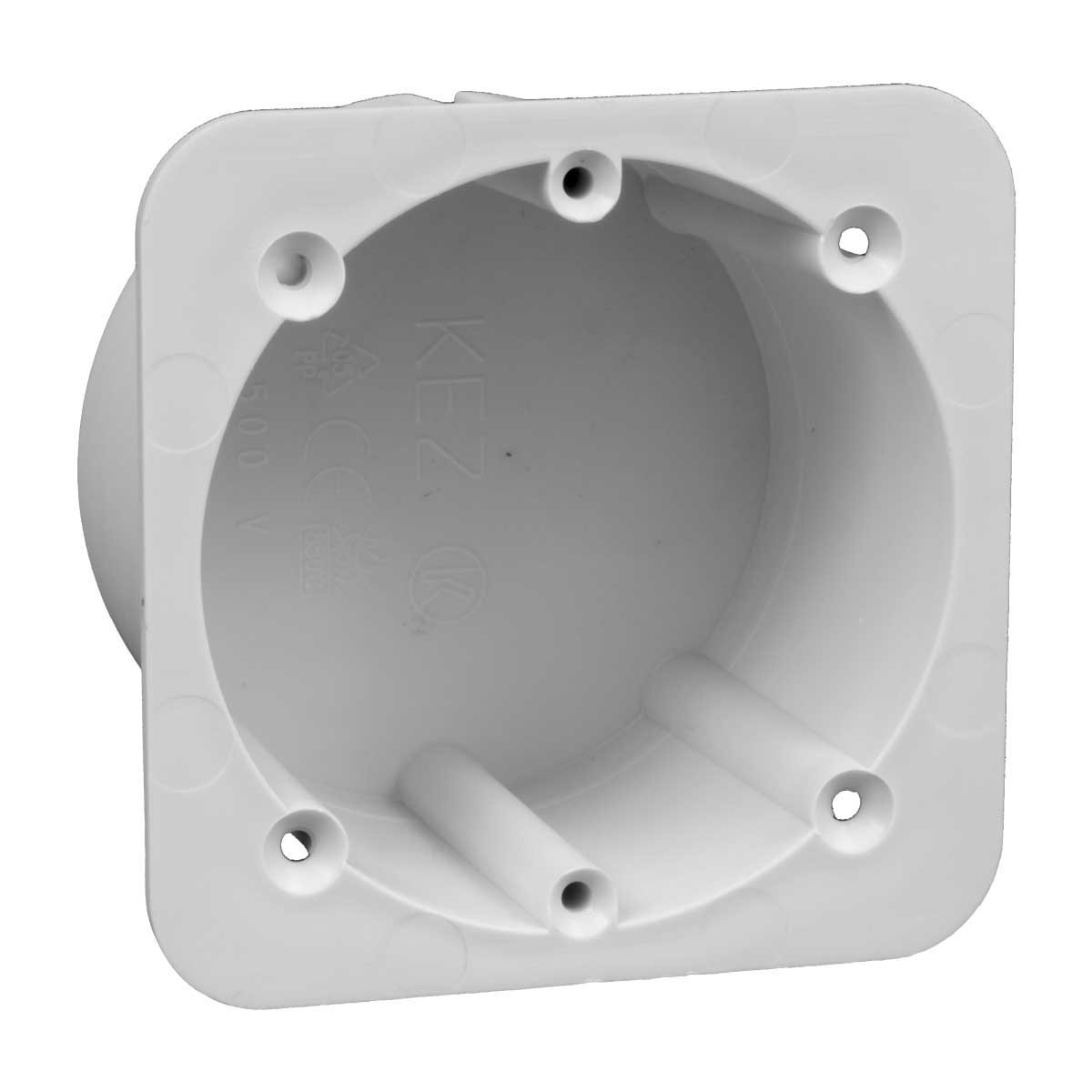

The spare part wiring box for thermal insulation is an individual wiring box, normally supplied with the KEZ and KEZ 300 set. The box must be used in combination with the supporting tube only, by means of standard assembly procedure. The separate use of this spare part, without the supporting tube, is not possible. Four self-tapping screws for fixing the box to the tube are normally supplied with the spare part.
