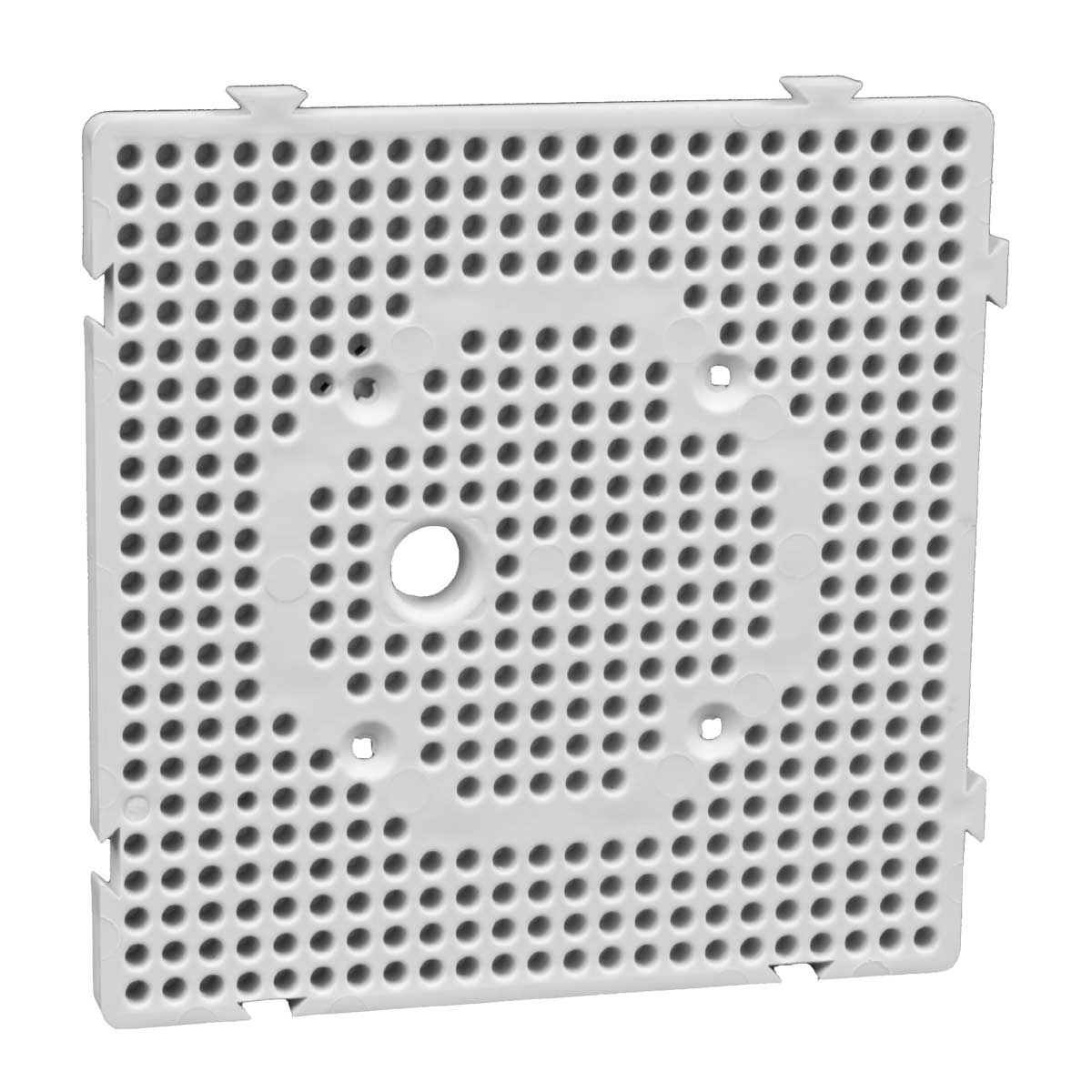

spare part mounting desk for thermal insulation

Atasamente si certificari

Imagine ilustrativă

ND MDZ KB - náhradní díl montážní deska do zateplení

To download 3D models, please login or create an account and request access.

Certifikace
Conformity declaration
Certificate ESČ
Declaration RoHS
Declaration REACH

Cod Ean	8595568925282
Cod vamal	39259080
Greutate	0,0780 kg/pcs
Material	PP
Material fără plumb	yes
Cu suto-stingere	30 s
Voltaj nominal	<= 400 V
Curent nominal	<= 16 A
Rezistența la temperatură	-25 - 60 °C
Testat cu buclă incinsă	850 °C
Lătime	119 mm
Înăltime	119 mm
Adâncime	19,5 mm
Clasa de reacţie la foc a materialului de fond	A1 - F
Descriere impachetare	individual desk are packed in a shrink foil

The spare part mounting desk for thermal insulation is an individual plate, normally supplied with the MDZ and MDZ 300 set. The plate must be used in combination with the supporting tube only, by means of standard assembly procedure. The separate use of this spare part, without the supporting tube, is not possible. Four self-tapping screws for fixing of the plate to the tube are normally supplied with the spare part.
